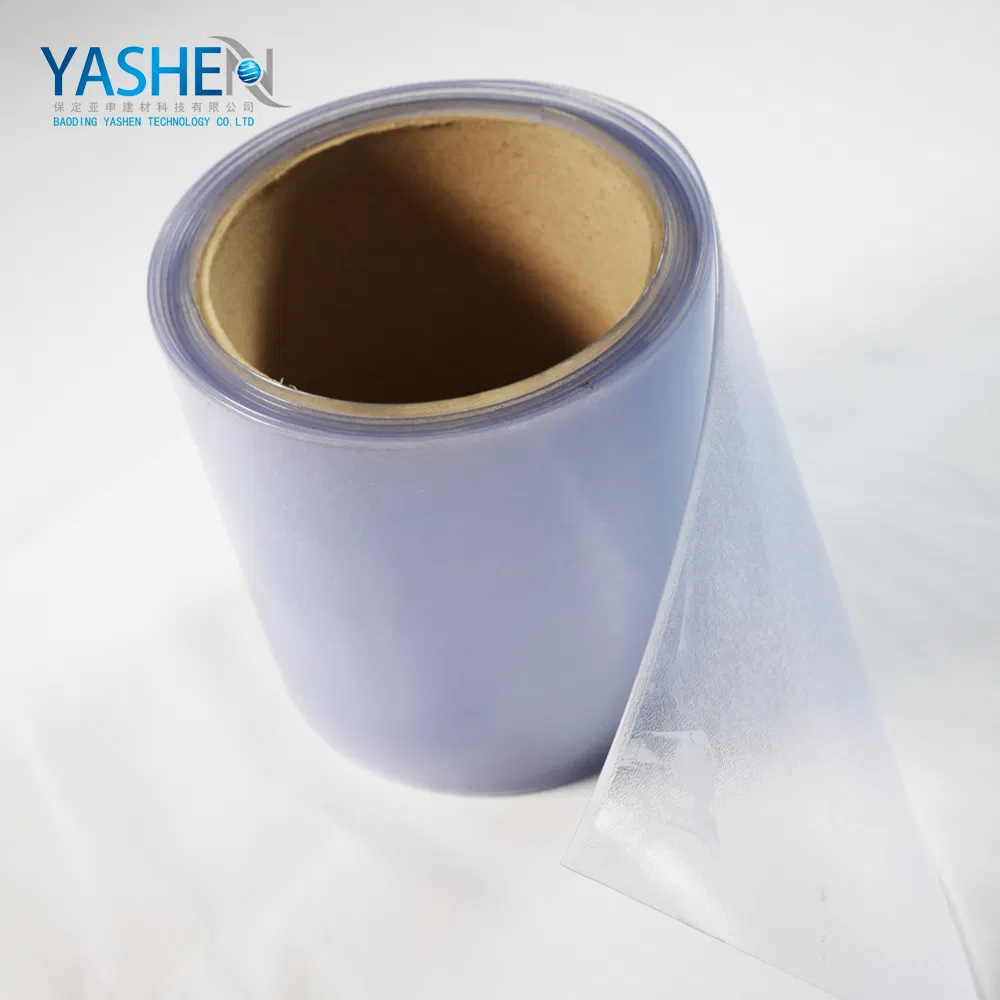

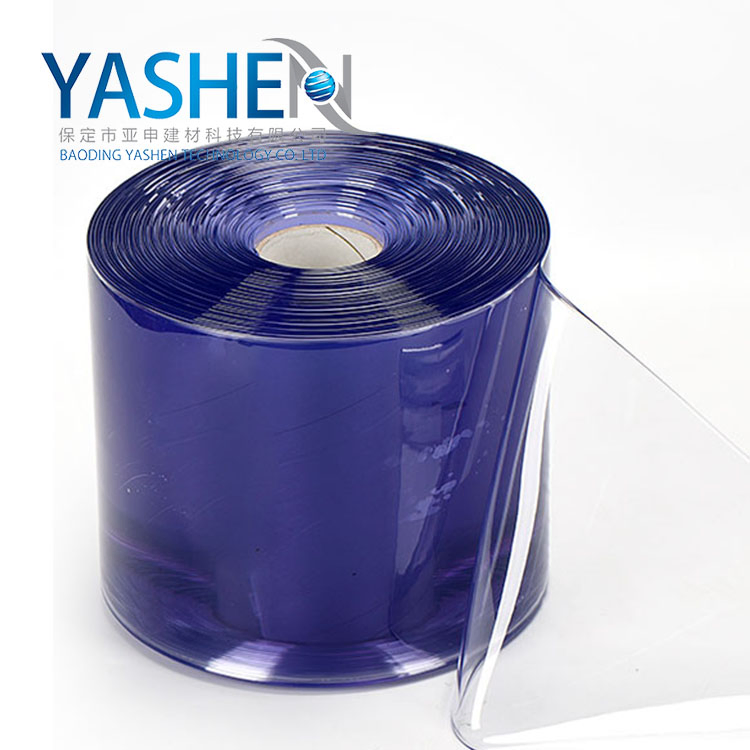

Transparent Sliding Door Cold Storage Standard PVC Strip Curtain

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	YS-1165
Material	PVC
Kind	PVC Plastic Sheet
Width	100 mm, 150 mm, 200 mm, 300mm, 400 mm, 500mm
Length	1-50 M
Working Temperature	-50 - 65 C
Surface	Smooth, Single Ribbed, Double Ribbed etc
Certification	CE, ISO, RoHS
MOQ	20 Rolls

Product Description

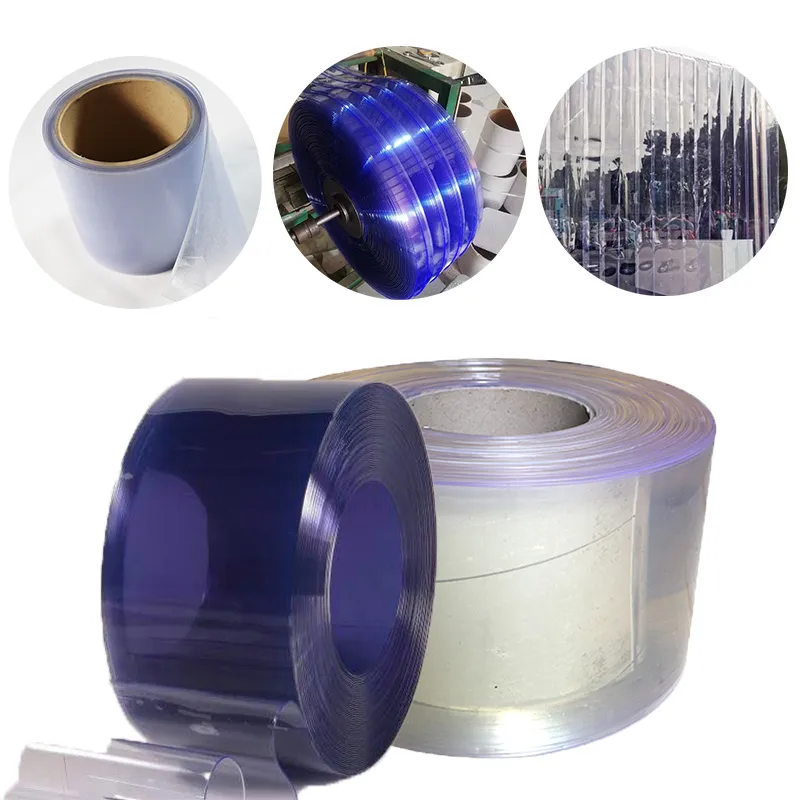

Flexible Partition System

Standard PVC Strip Curtain is a flexible partition system made of high toughness transparent/semi transparent PVC material. It adopts a multi-layer strip hanging curtain design, which can effectively separate spaces and ensure barrier free passage for personnel, vehicles, and equipment.

Widely used in industrial plants, logistics warehouses, food workshops, cold storage, supermarkets and other places, it has functions such as energy conservation and insulation, dust and insect prevention, noise reduction and sound insulation.

Technical Specification

Feature	Details
Material	High transparency / Colored PVC

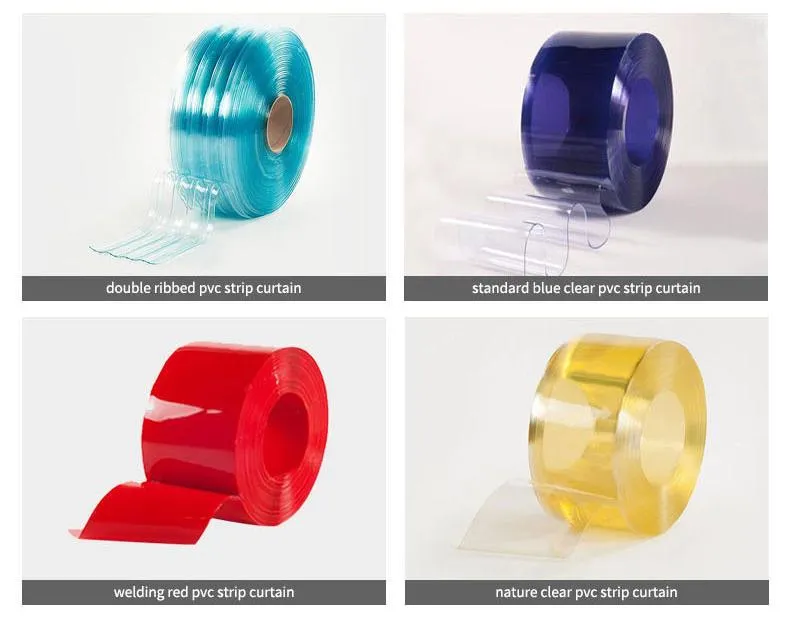

Type	Flat / Ribbed
Length	1000mm ~ 3000mm (customizable)
Width	100mm / 150mm / 200mm (customizable)
Thickness	0.8mm-2.0mm Optional
Softness	75-80 Shore A
Temperature Range	-15°C to +50°C
Installation	Top rail fixed (aluminum alloy / stainless steel rail)
Optional Functions	Anti-static, antibacterial, UV resistant, fluorescent warning strips

Product Advantages

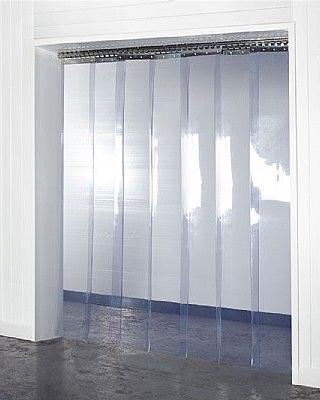

Efficient Separation: Overlapping strip structure forms a closed barrier, isolating temperature zones, dust, and noise.

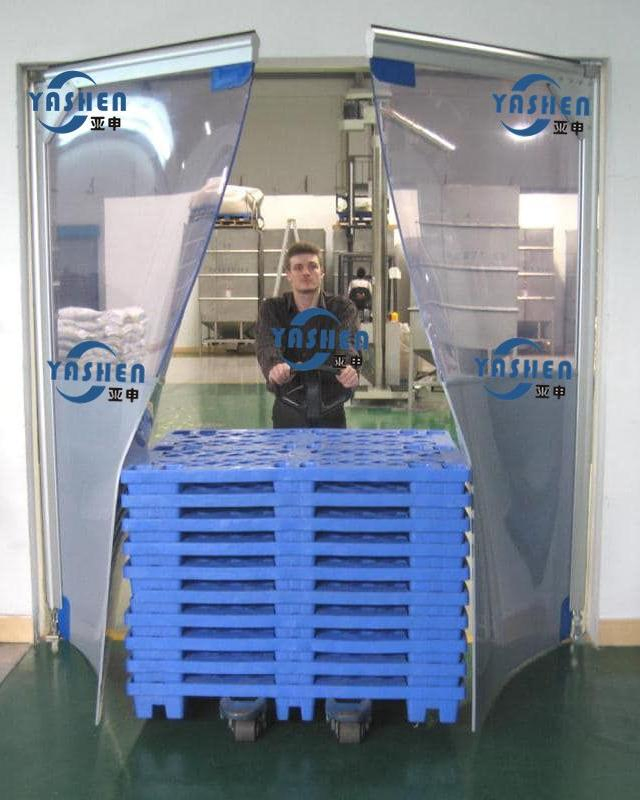

Free Passage: Flexible strips can be easily pushed open and automatically rebound, ideal for forklifts and carts.
Energy Conservation: Reduces air conditioning/heating leaks, achieving energy efficiency of over 30%.
Safe and Durable: Anti-impact and scratch-resistant; some models are UV resistant or flame-retardant.
Sanitary & Easy Clean: Food-grade PVC optional, odorless, non-toxic, and washable.

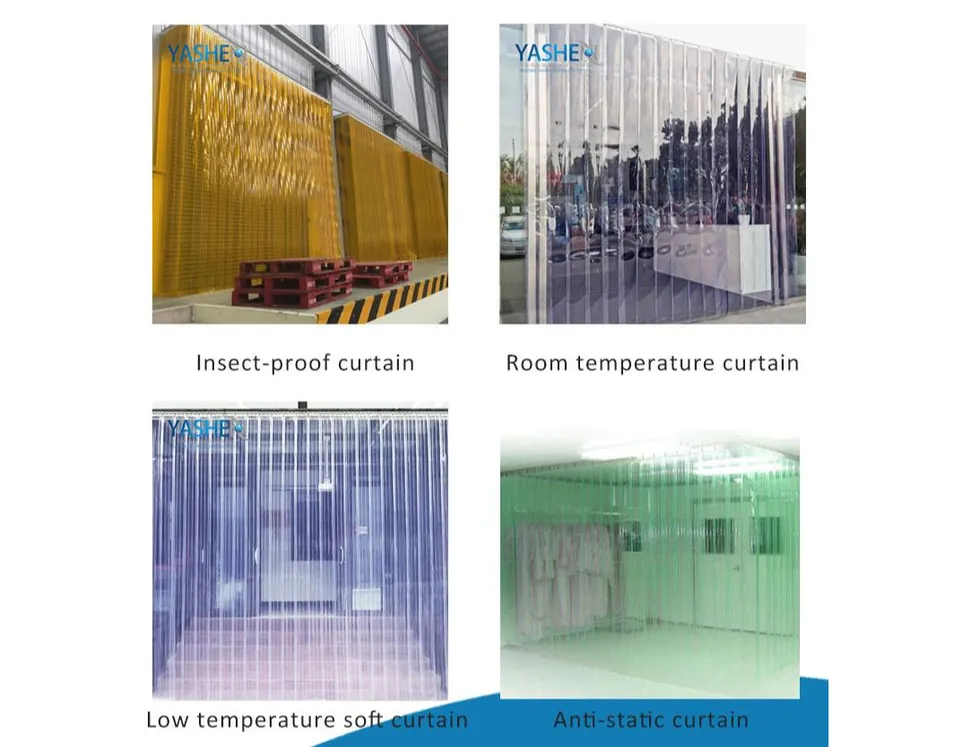

Application Areas

1. Manufacturing & Logistics
Workshop zoning, dust blocking, and noise control in stamping workshops.

2. Food & Cold Chain
HACCP/FDA compliant for bakeries, dairy factories, and cold storage (-30°C to -60°C grade available).

3. Retail & Food Service
Supermarket chillers, commercial kitchens, and fresh market stalls.

4. Healthcare & Cleanrooms
Dust-proof barriers for labs and anti-static strips for electronics production.

5. Agriculture
Temperature regulation for greenhouses and insect blocking for livestock farms.

6. Specialized Industry
Auto repair paint zones and chemical plant isolation.

Curtain Accessories

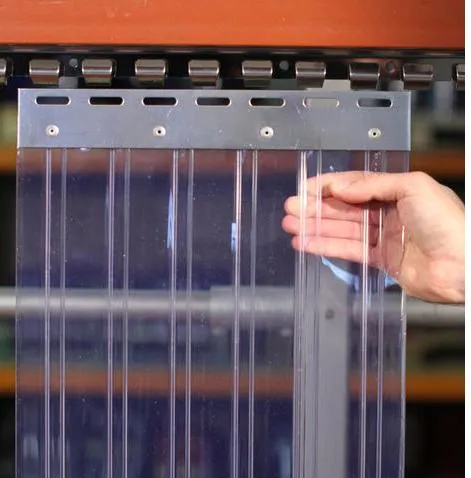

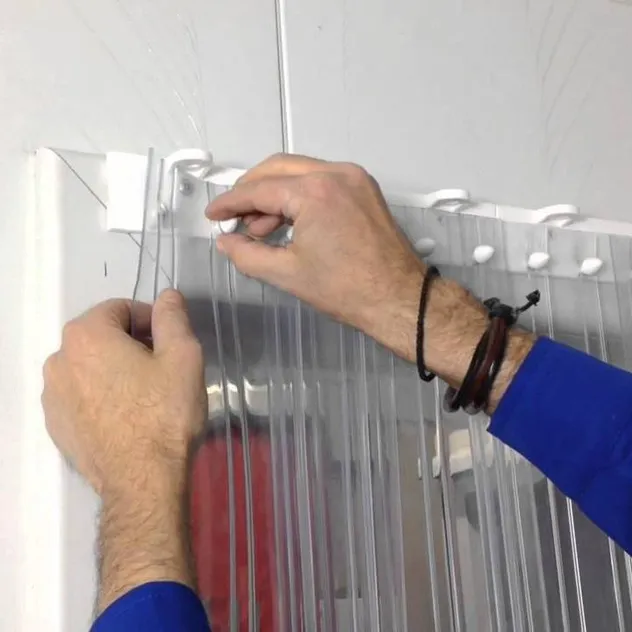

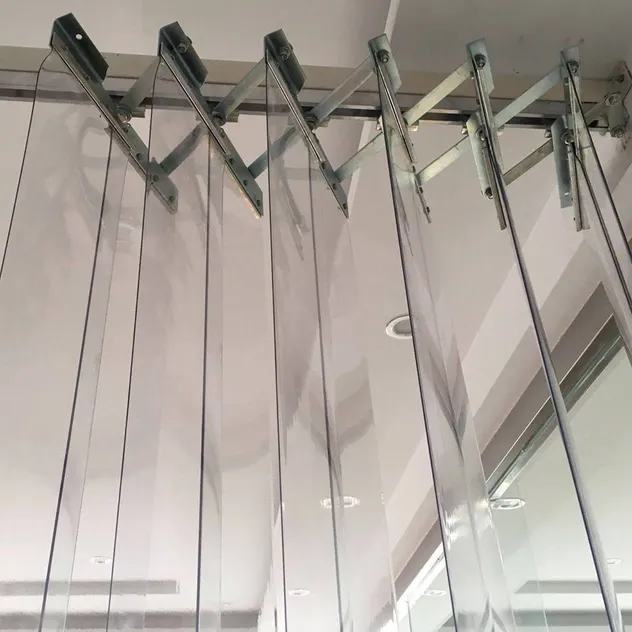

Available in CN/EU Hardware standards, Hook-on systems, and ABS plastic hangers.

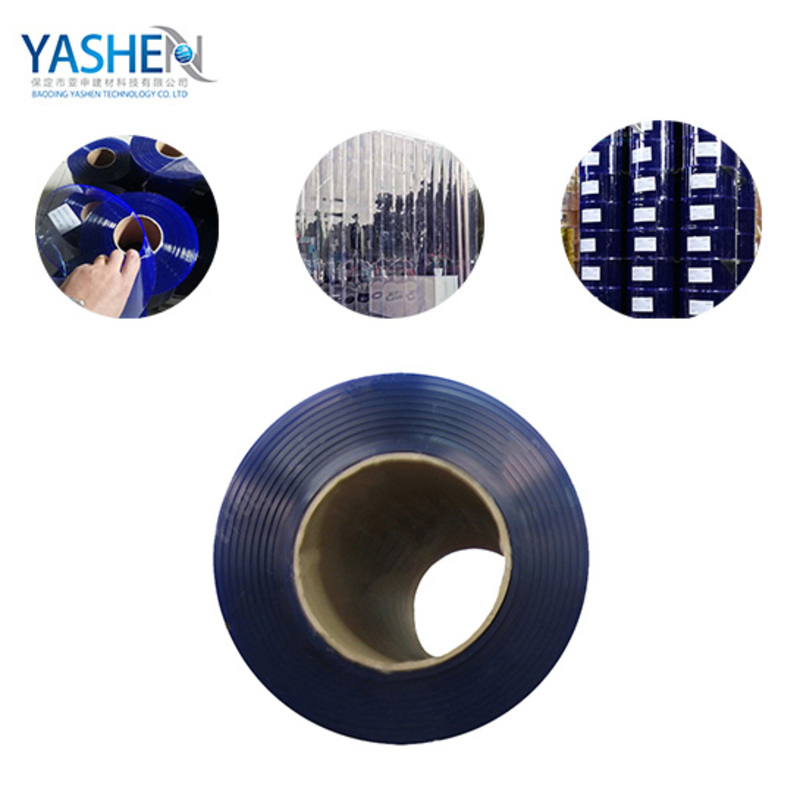

Packaging & Shipping

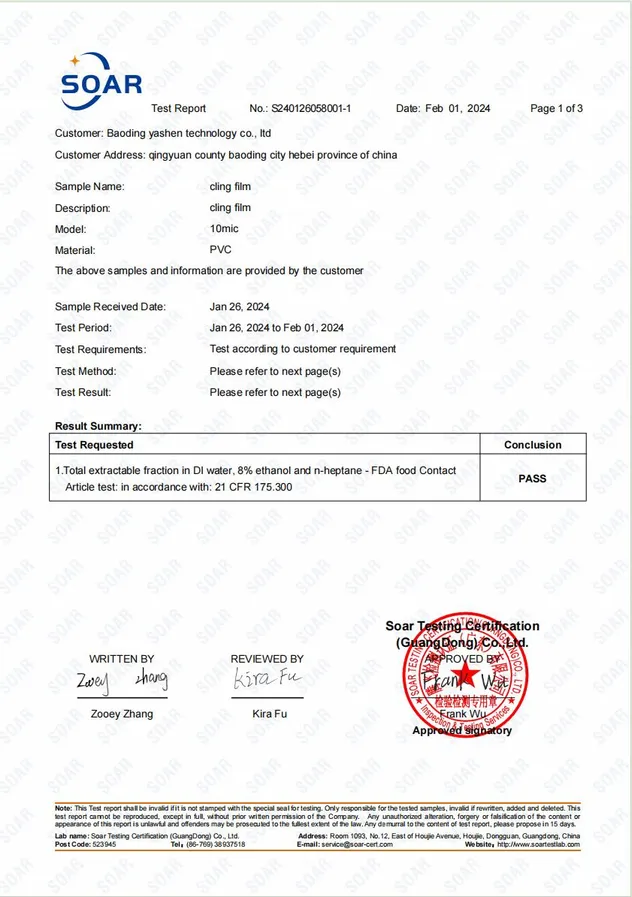

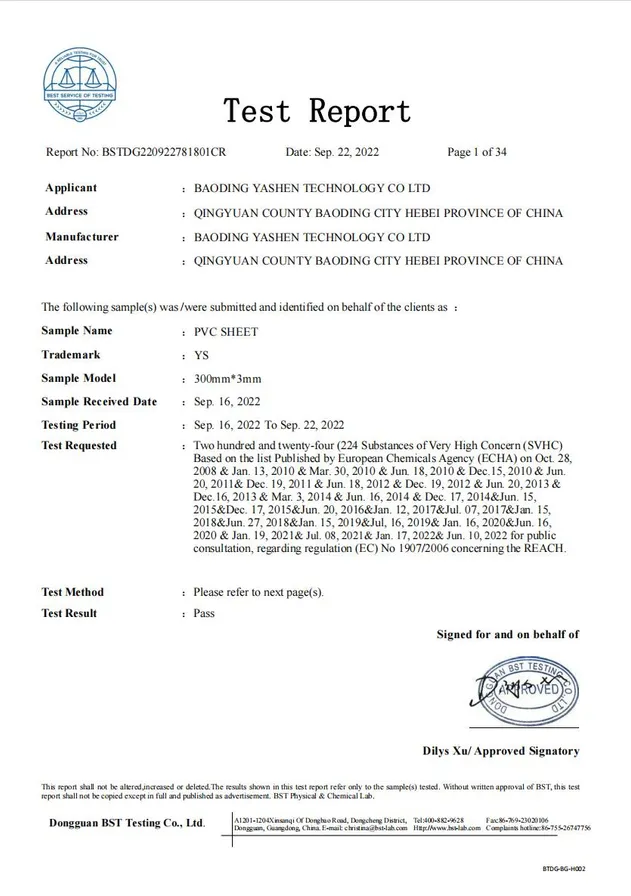

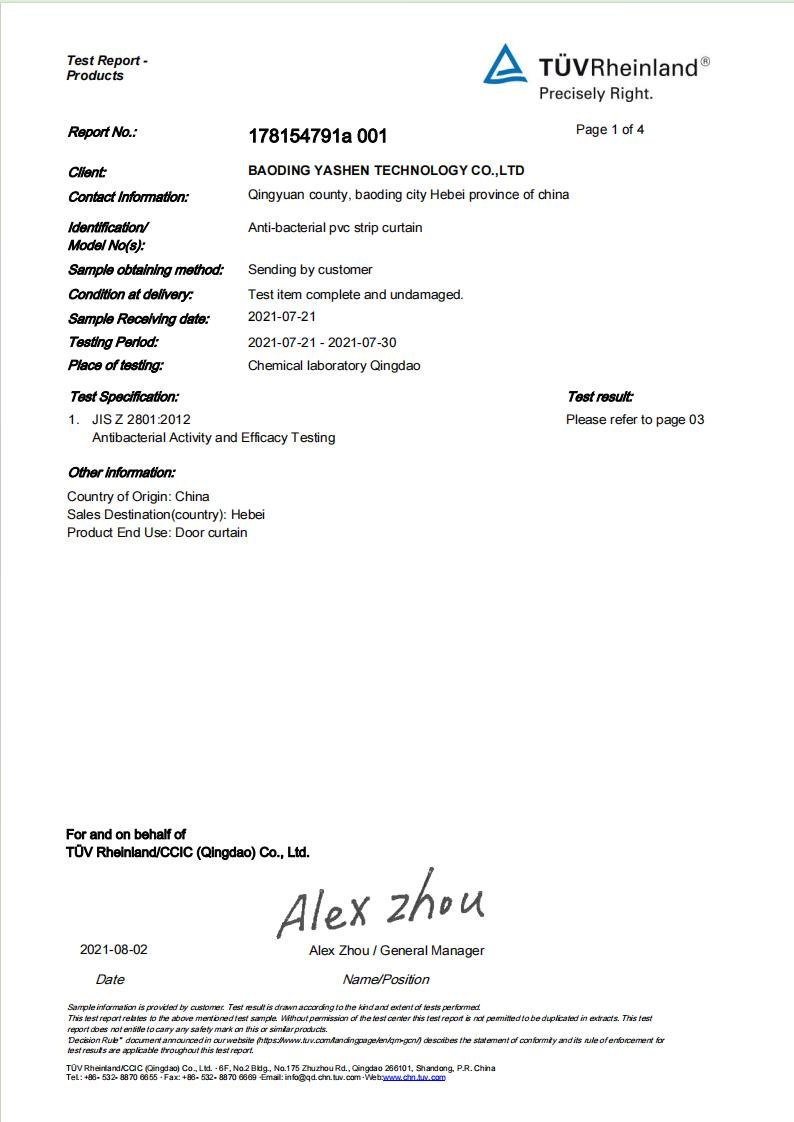

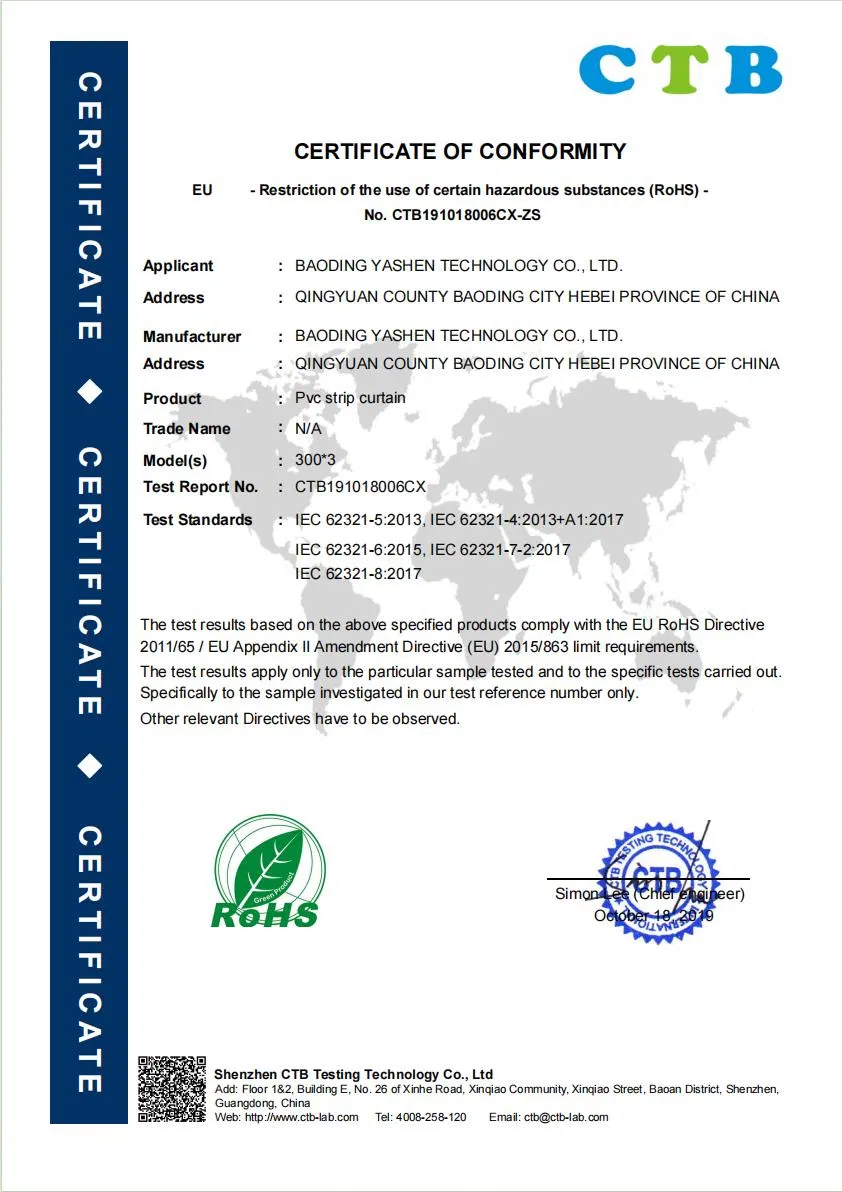

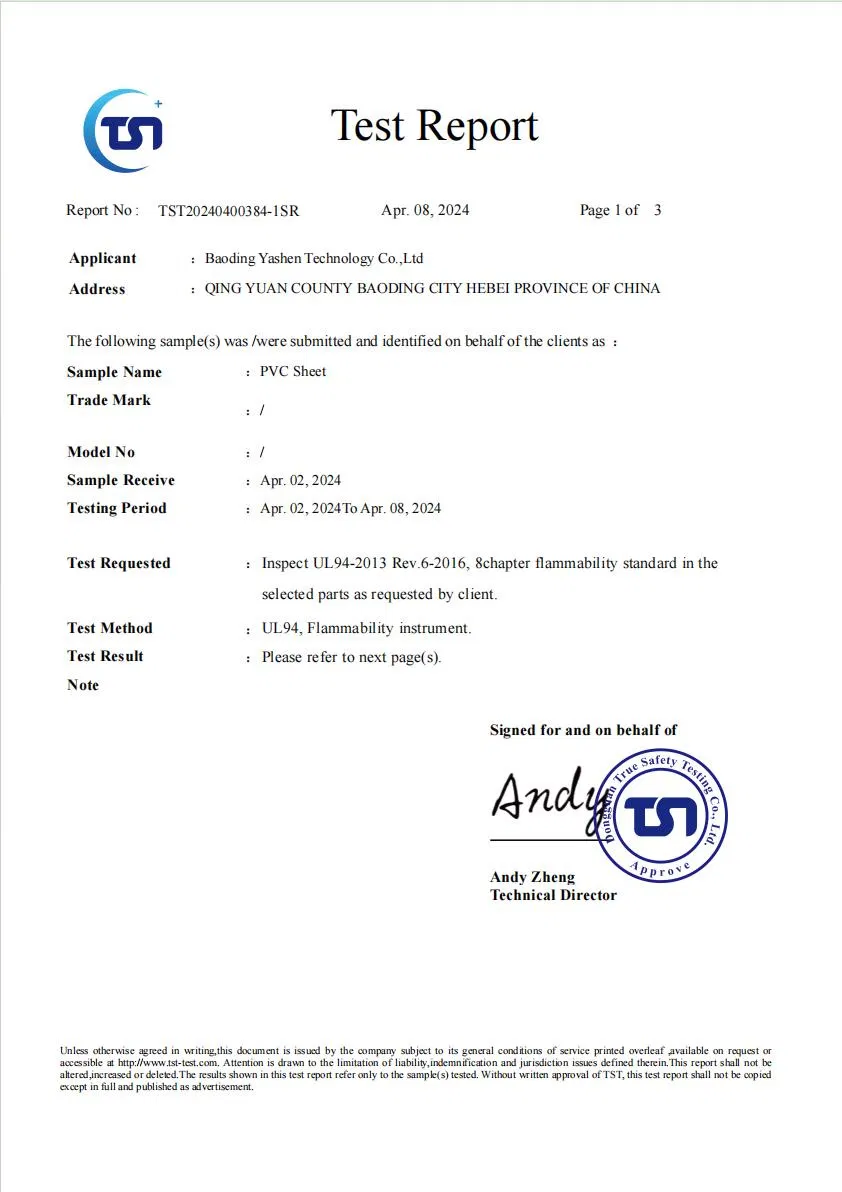

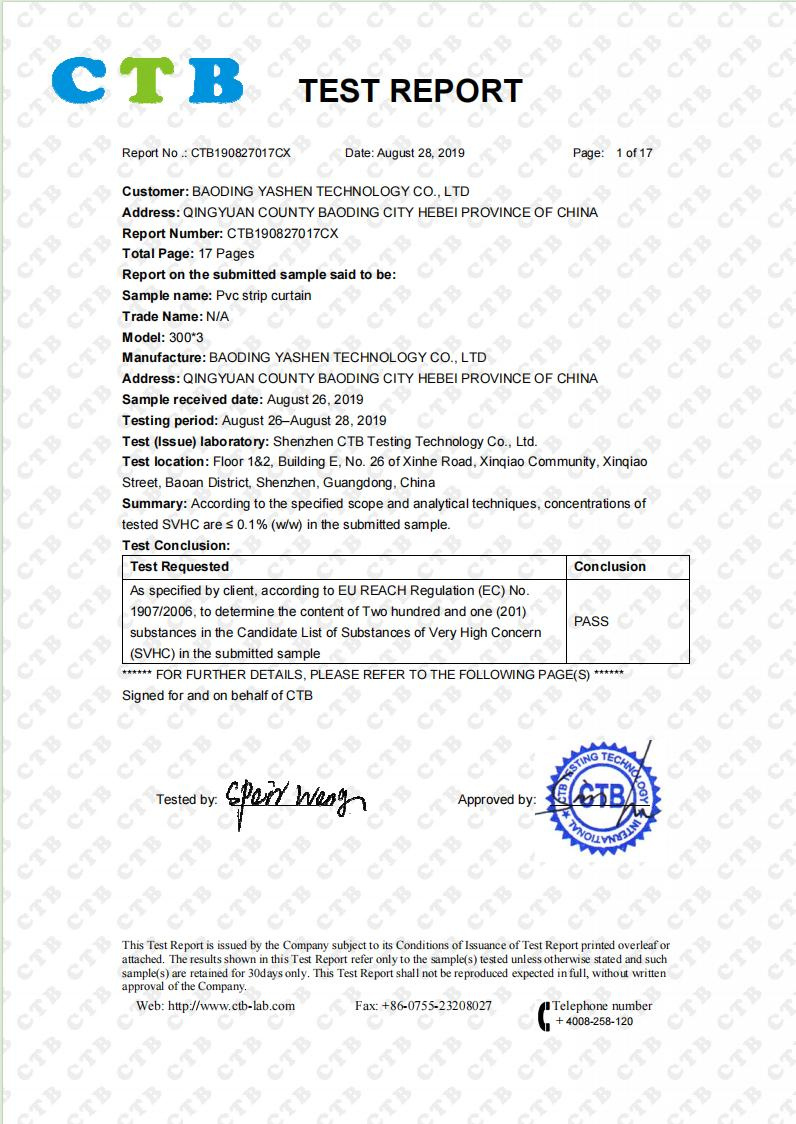

Certifications

Frequently Asked Questions (FAQ)

Q1: What temperature range can these PVC strip curtains handle?

A: Our standard PVC curtains operate between -15°C and +50°C. For extreme cold storage, we offer freezer-grade strips that can handle temperatures as low as -50°C.

Q2: Are the PVC curtains customizable in terms of size?

A: Yes, we provide various widths (100mm to 500mm) and thicknesses (0.8mm to 2.0mm). Lengths can be customized from 1 to 50 meters per roll.

Q3: Do you offer anti-static or UV-resistant options?

A: Absolutely. We provide specialized curtains with anti-static properties for electronics rooms and UV-resistant treatments for outdoor applications.

Q4: How much energy can I save using these curtains?

A: By reducing air conditioning and heating leakage, these curtains can achieve an energy-saving efficiency of over 30% compared to traditional open doorways.

Q5: Are these curtains safe for food processing areas?

A: Yes, we offer food-grade PVC that is odorless, non-toxic, and compliant with HACCP and FDA standards, making them ideal for bakeries and meat plants.

Q6: What installation hardware is required?

A: We provide various hanging systems, including aluminum alloy or stainless steel rails, as well as hook-on systems for easy installation and maintenance.
