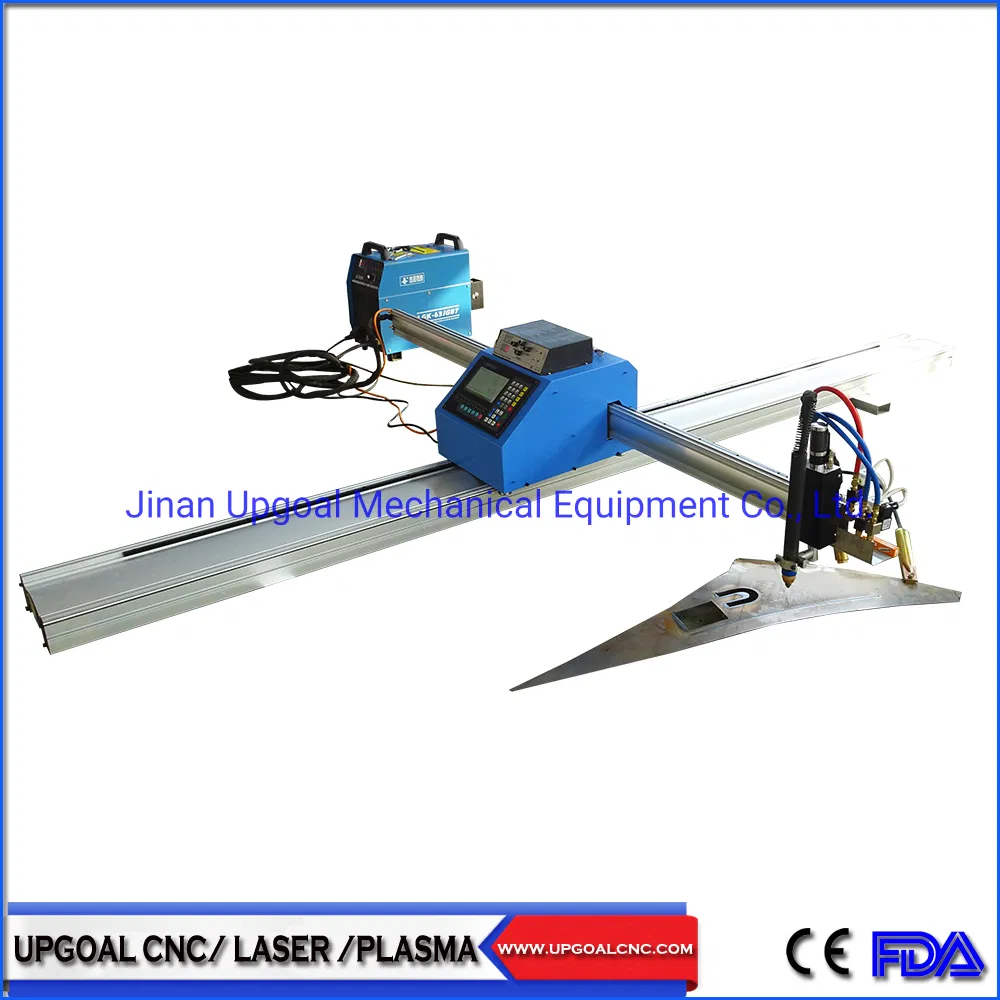

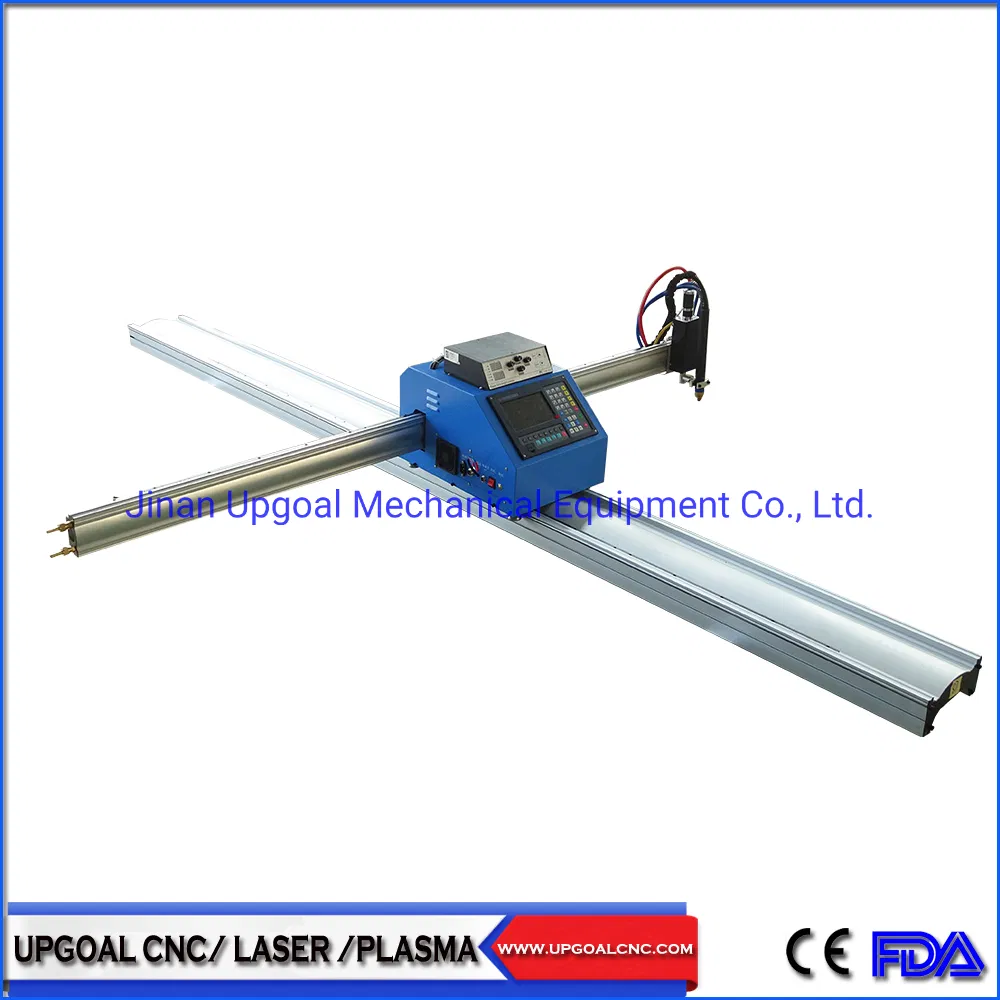

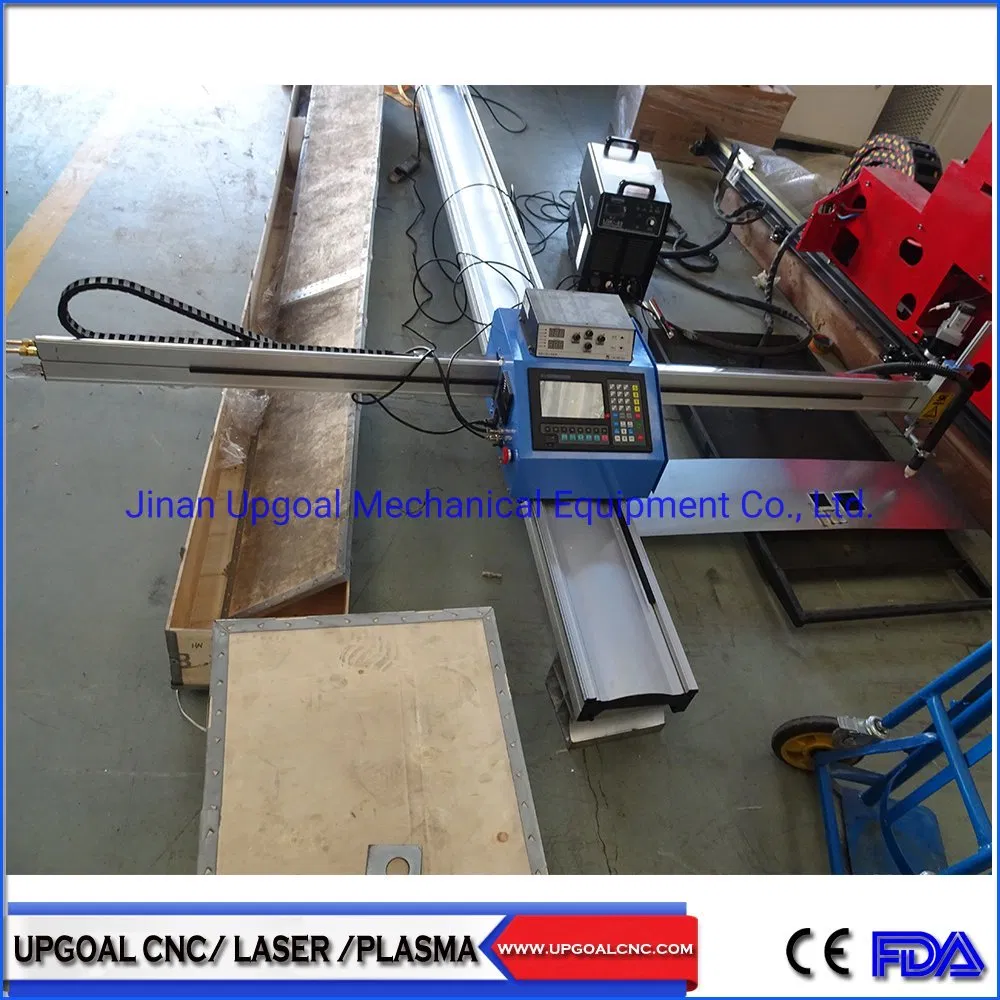

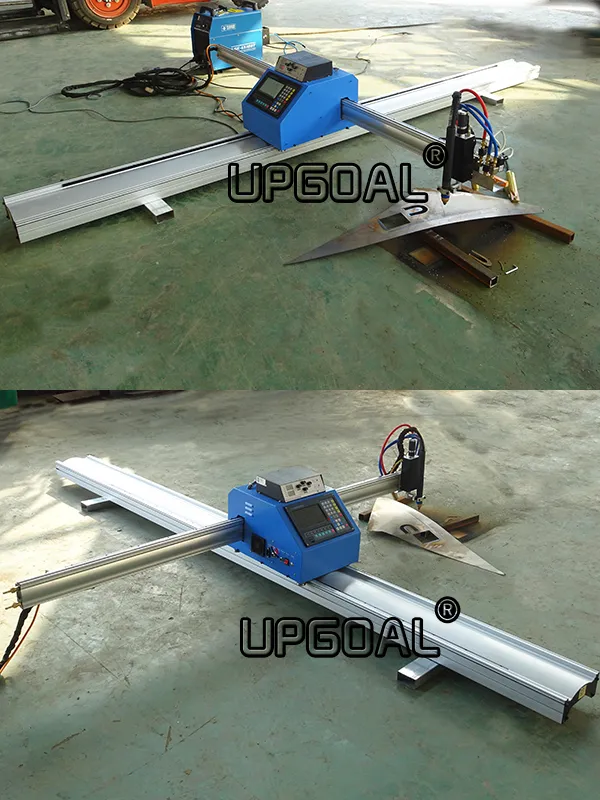

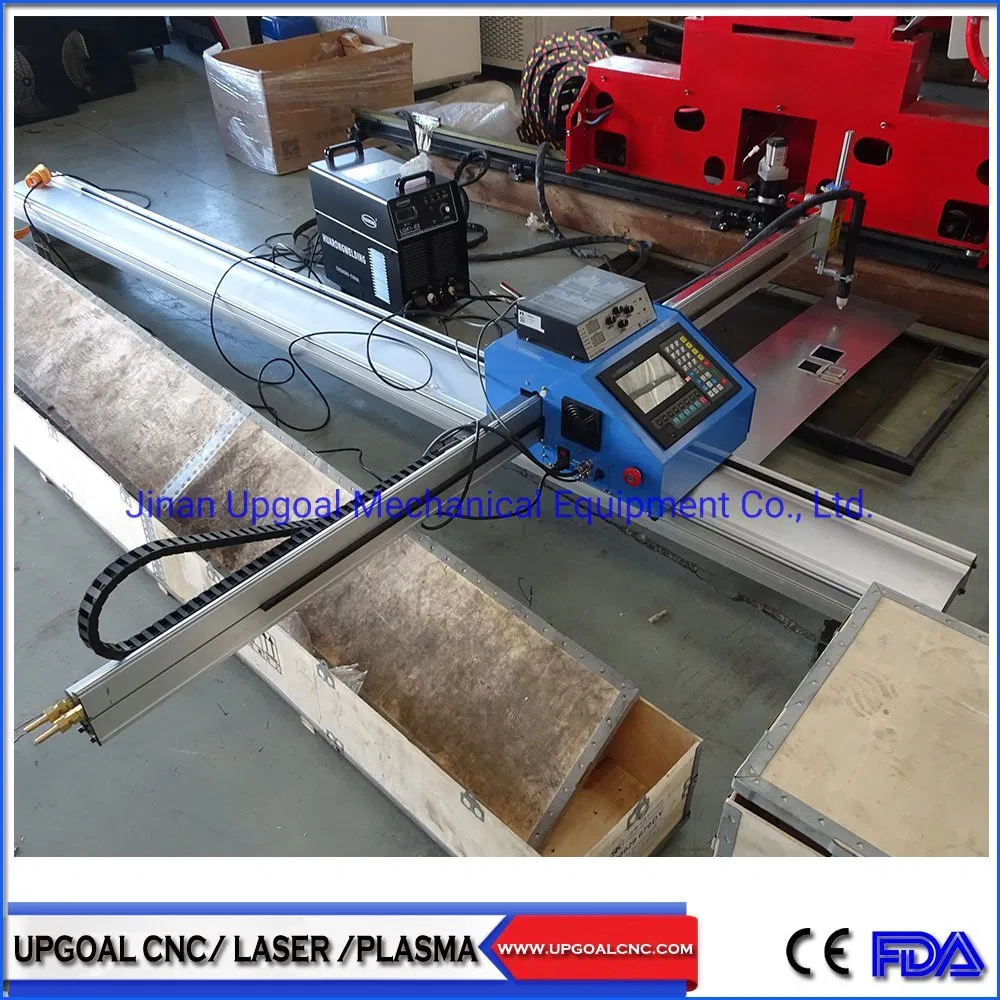

Economic 1500*3000mm Dual Plasma Flame CNC Cutting Machine for Carbon Steel

1 / 5

Economic 1500*3000mm Dual Plasma Flame CNC Cutting Machine for Carbon Steel

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

UG-1530P

Cutting Mode

Plasma & Flame Cutting

Cutting Area

1500*3000mm

Power Source

Electric (AC 220V)

Automatic Grade

Automatic, Semi-Automatic

Control System

Flangling 2100B

Material

6030 High-Strength Aluminum Alloy

Accuracy

0.3mm Straightness

Product Overview

Economic 1500*3000mm Dual Plasma Flame CNC Cutting Machine for Carbon Steel

Applications

This equipment is suitable for various industrial environments including large, medium, and small factories and mines. It is widely utilized in sectors such as automobile manufacturing, shipbuilding, and engineering machinery. It effectively handles materials including carbon steel, stainless steel, and nonferrous metals.

Core Features & Control System

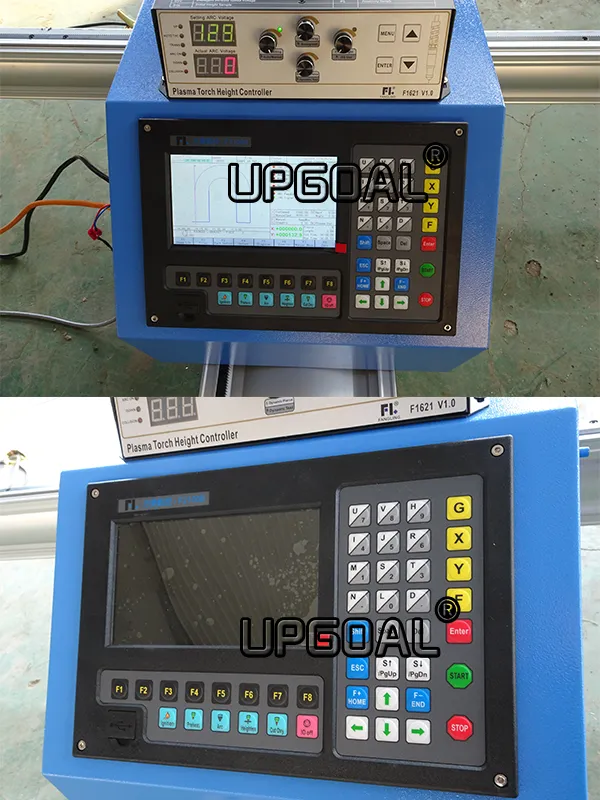

FlangLing 2100B Control System: Featuring a 7-inch 800*600 high-resolution color LCD screen with a user-friendly interface. Supports multi-language menus (Chinese/English) and real-time operation marks.

Software Compatibility: Supports EIA code (G-code), FastCAM, and other major nesting software.
Built-in Graphics: Includes 45 types of commonly used graphics for direct cutting without complex programming.
High Performance: 32-bit CPU using real-time multitasking and high-speed DSP control for stable, low-noise operation.
Storage Capacity: 256M large storage space capable of storing over 5000 complex cutting files.
Smart Safety: Features power failure and breakpoint data recovery to prevent material waste.
Precision Hardware: High subdivision stepper motor and all-steel chassis magnetic structure for anti-static and anti-jamming performance.

Height Control & Torch Technology

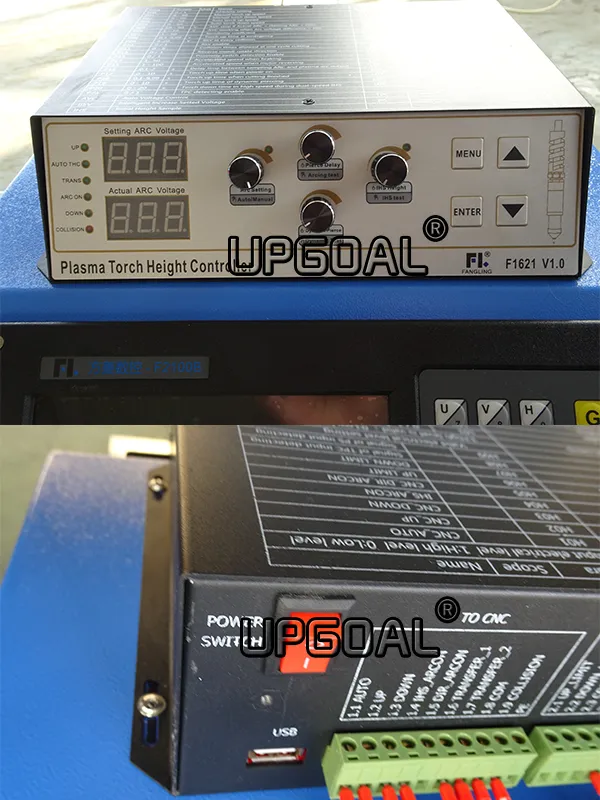

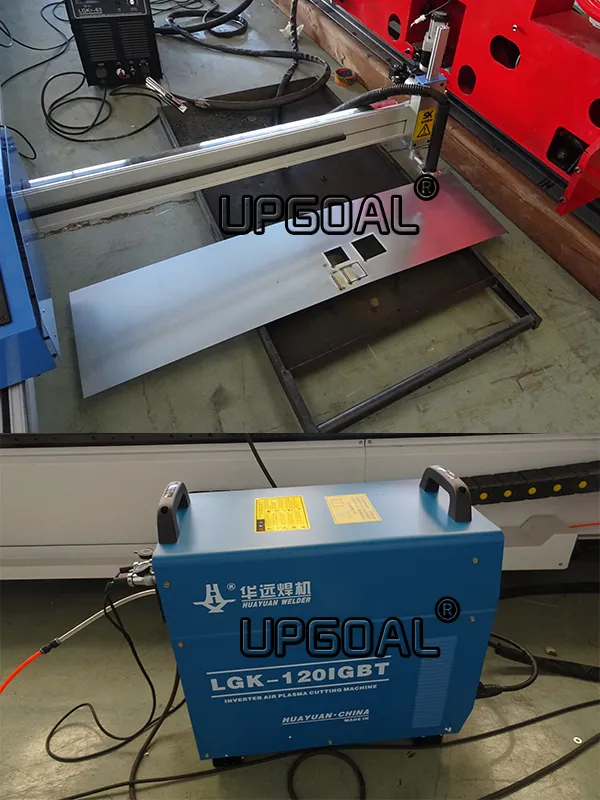

Equipped with FlangLing F1621 Digital Voltage THC (Torch Height Controller) for precise distance management during the cutting process.

Mechanical Components

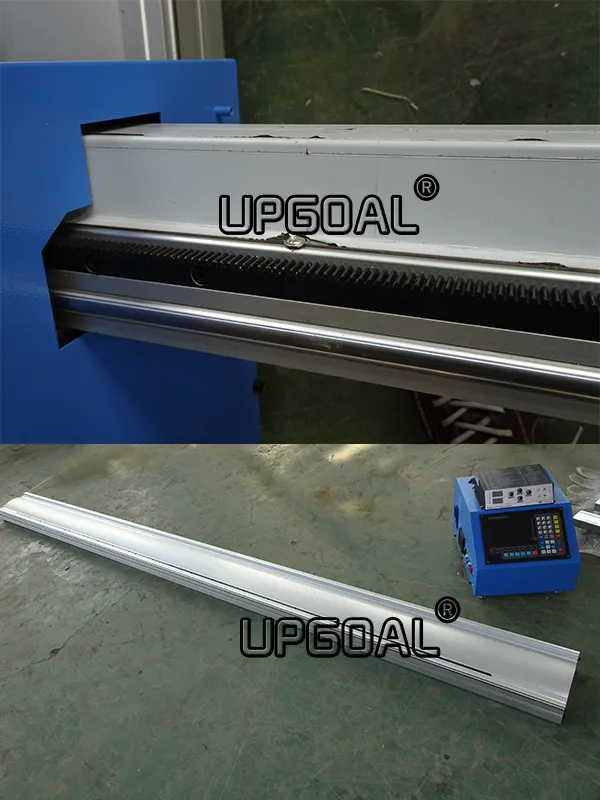

The machine utilizes a 6030 high-strength hardness aluminum alloy guide rail and Class 7 precision rack and pinion systems for maximum durability and precision.

Technical Parameters

Parameter	Specification
Effective Cutting Area	1500*3000mm
Beam / Guide Length	2100mm / 3500mm
Flame Cutting Thickness	6-150mm (Max 180mm)
Plasma Cutting Thickness	Depends on Plasma Power Supply
Cutting Speed	0-3500mm/min (Max 4000mm/min)
Scribing Accuracy	± 0.3mm
Voltage	AC 220V, 50/60Hz, Single Phase
Cutting Gas	Oxygen + Dimethylmethane or Acetylene
Surface Roughness	12.5μm ≤ Ra ≤ 25μm

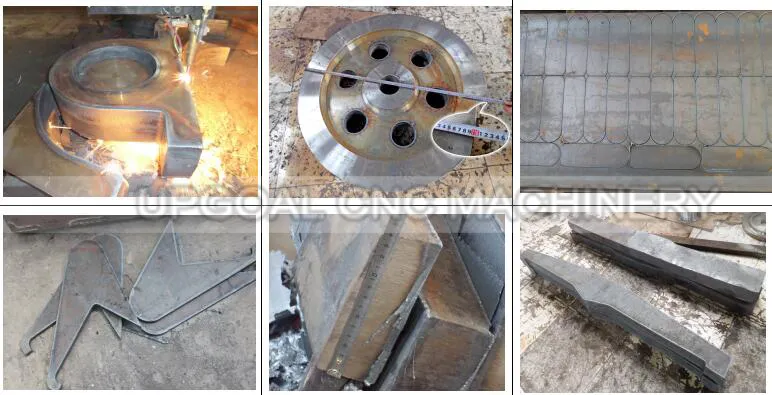

Samples & Packaging

Package Details:
Size: 356.00cm * 30.00cm * 20.00cm
Gross Weight: 130.00kg
Package Type: Plywood Case

Frequently Asked Questions (FAQ)

Q1: What materials can this CNC machine cut? A: It is suitable for cutting carbon steel, stainless steel, copper, iron, aluminum, and various metal alloys.

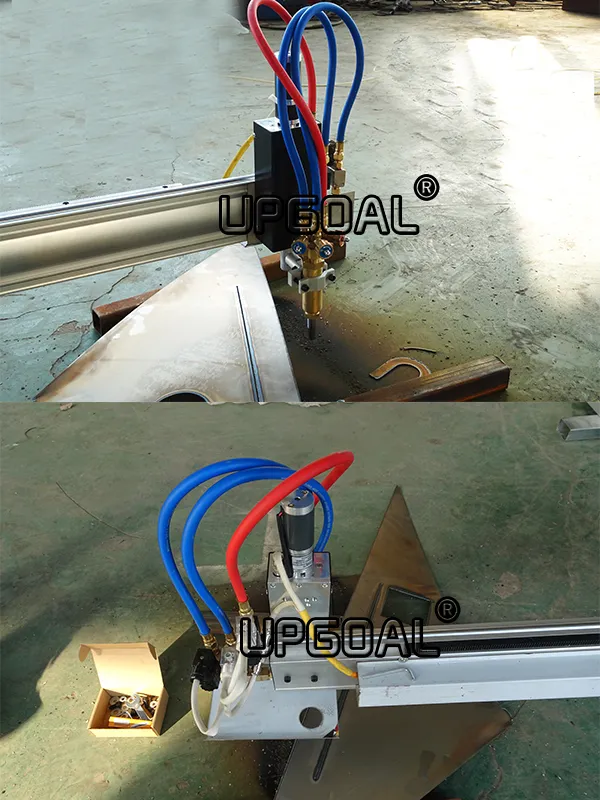

Q2: Does the machine support both plasma and flame cutting? A: Yes, it is a dual-mode machine. Flame cutting is standard, and plasma cutting is available as an optional torch configuration.

Q3: What is the effective cutting area of the UG-1530P? A: The effective cutting area is 1500mm in width and 3000mm in length.

Q4: What happens if there is a power failure during a job? A: The FlangLing 2100B control system includes power failure and breakpoint data storage, allowing the machine to recover and resume the task accurately.

Q5: Is specialized software required for nesting? A: The machine comes with original FastCAM nesting software and also supports G-code from other common programming software.

Q6: What is the maximum cutting speed? A: The adjustable cutting speed ranges from 0 to 3500mm/min, with a maximum rapid travel speed of 4000mm/min.
