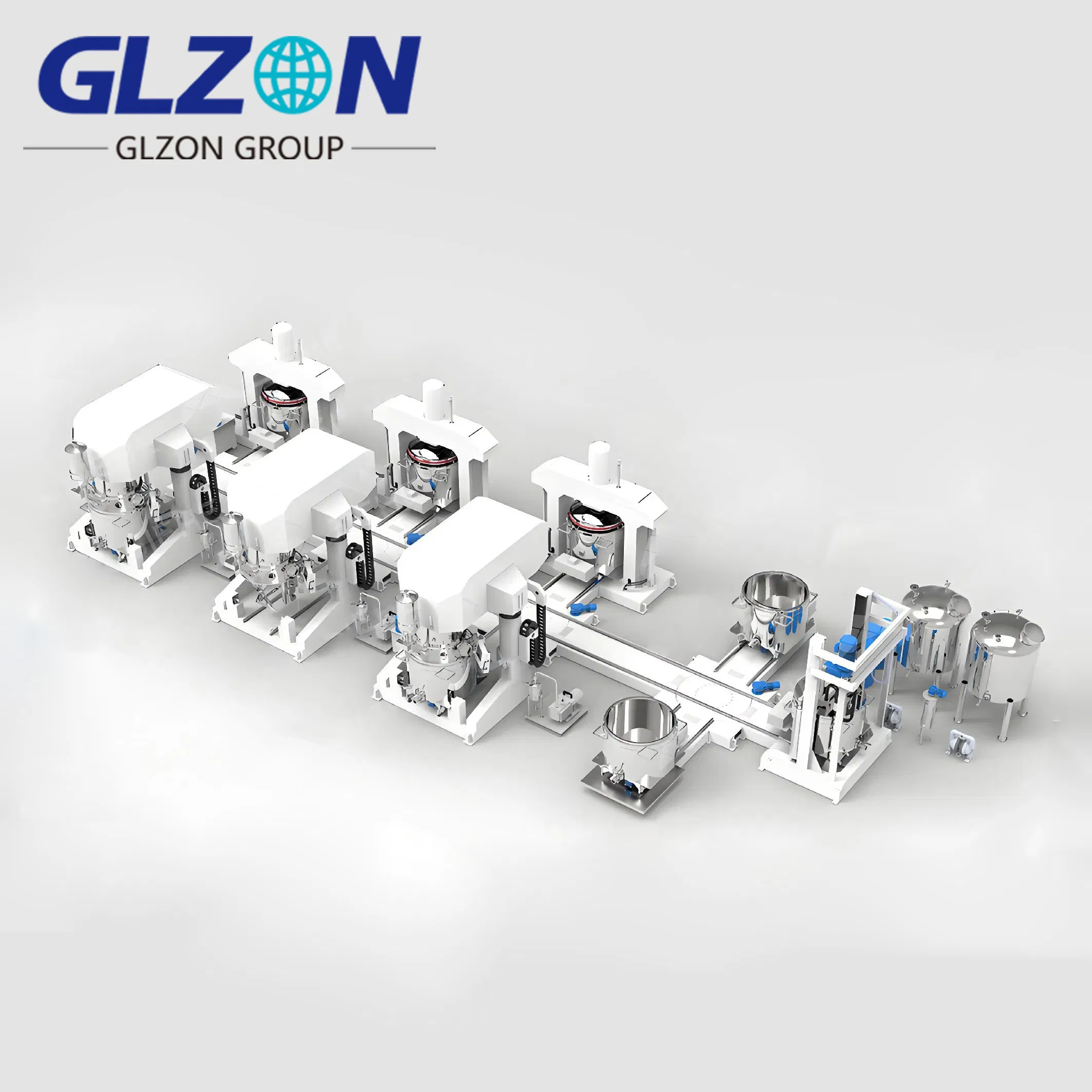

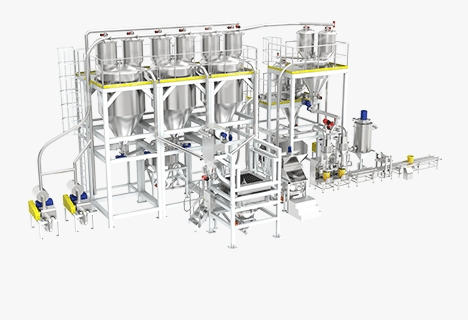

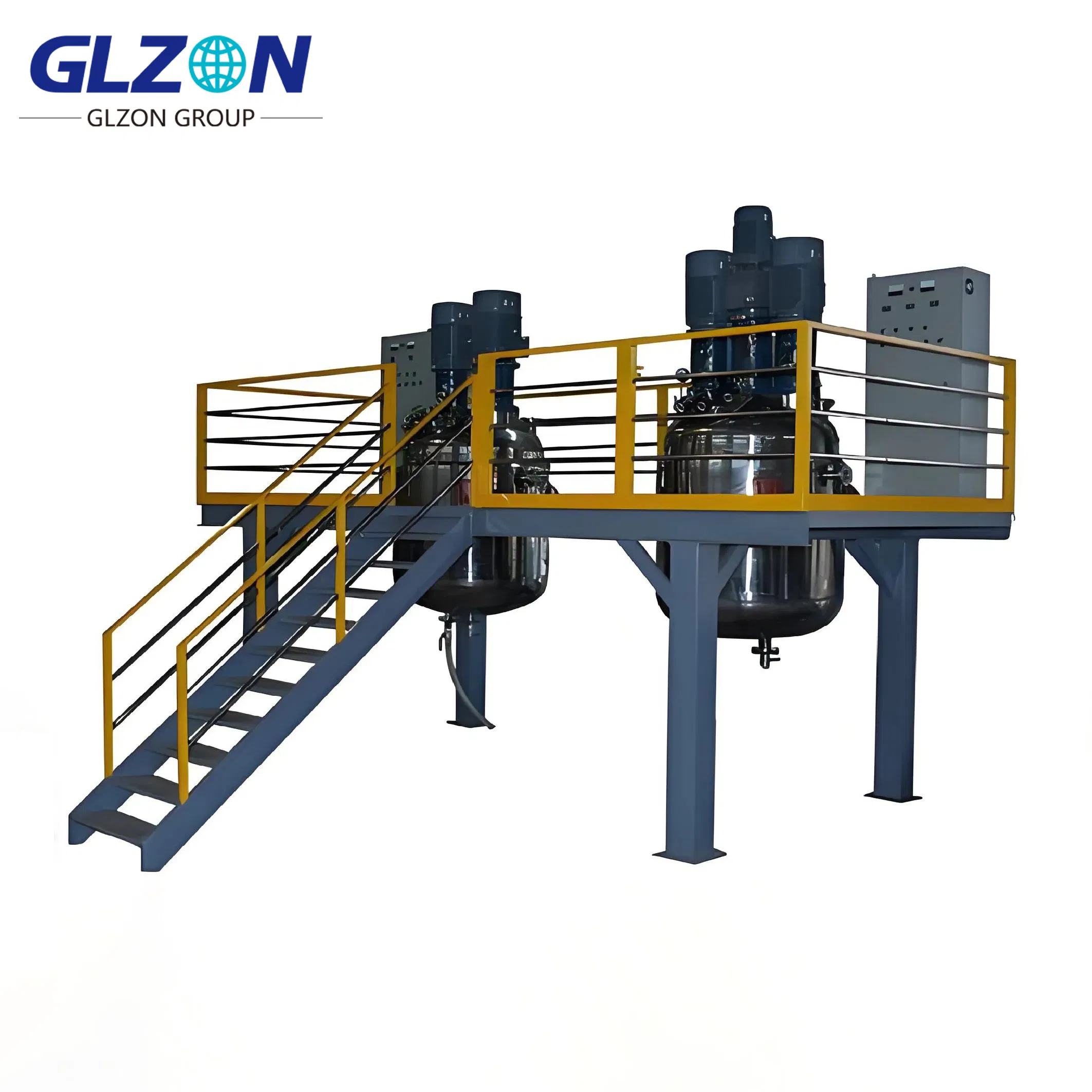

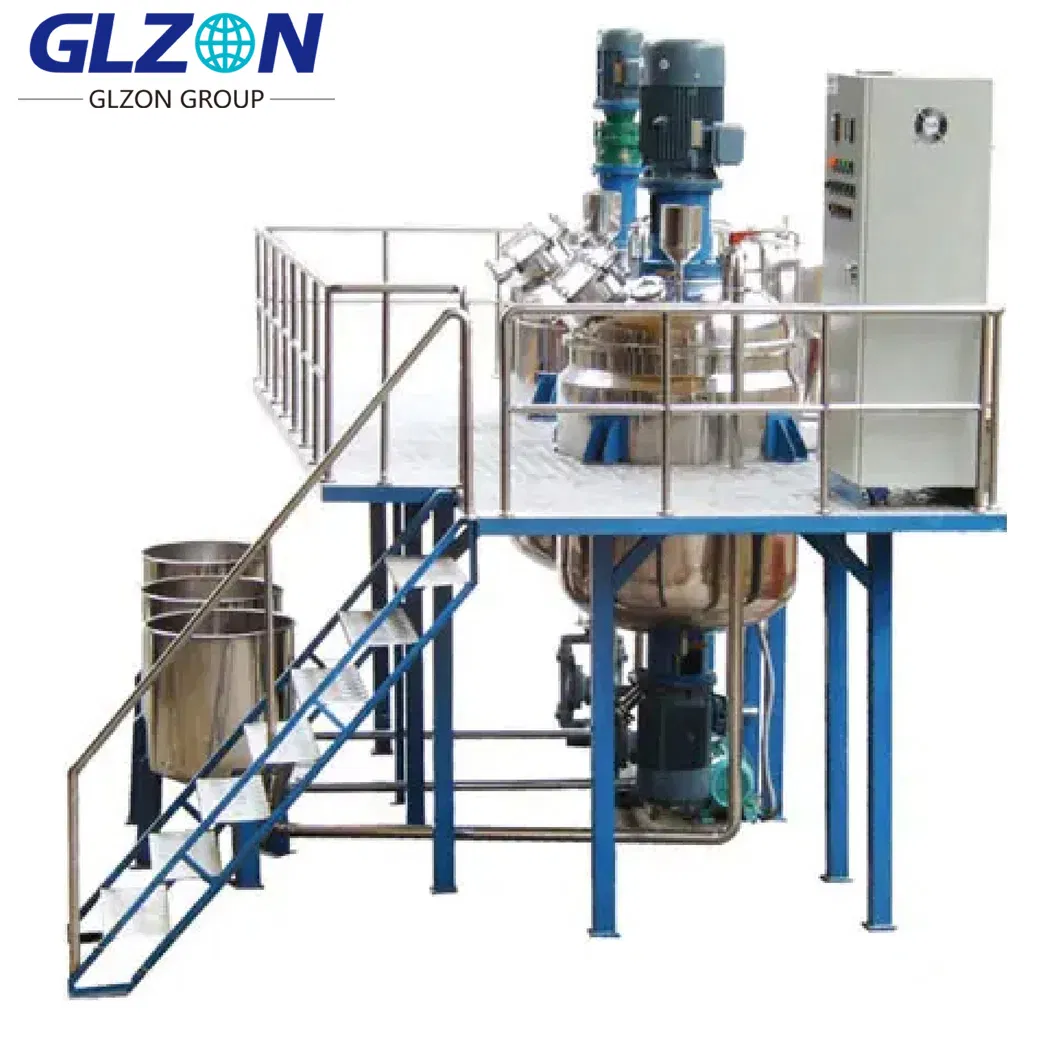

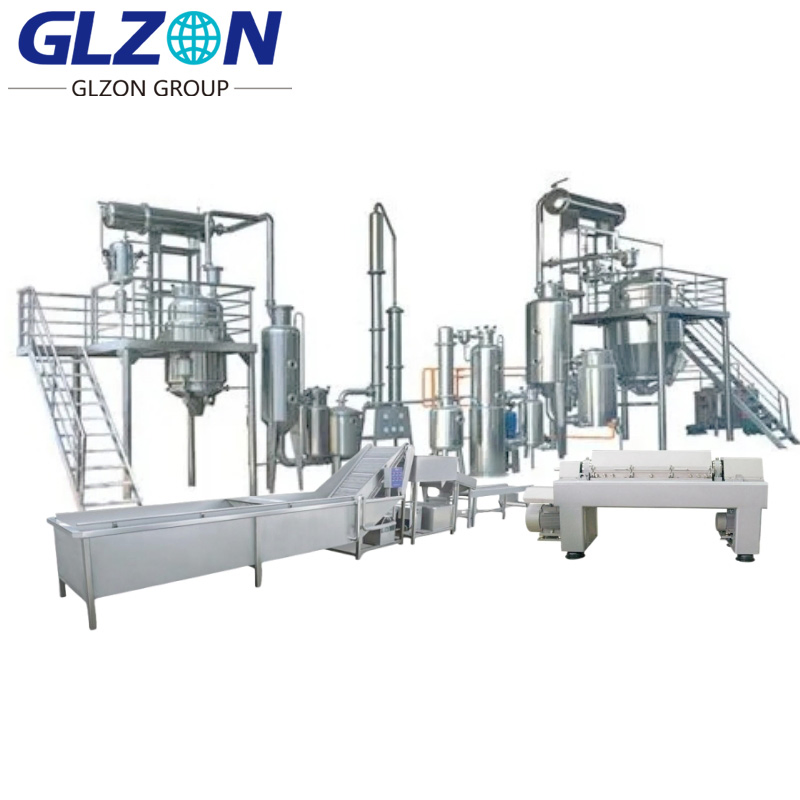

Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
1 / 5
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System
Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System

Turnkey Industrial Jacketed Reactor & Extraction Production Line with Integrated Mixing, Heating and Processing System

Customization: Available
After-sales Service: Provided
Warranty: 1year
Send Inquiry

Product Description

Basic Information

Model NO.GZM_30L
TypeWeighing-type Filling Machine
Automatic GradeSemi-Automatic
Material TypeLiquid
Filling Valve HeadSingle-Head
Dosing DeviceCapacity Cup
Filling PrincipleAtmospheric Pressure
PackagingBarrel
Filling Capacity10L-50L (Adjustable)
Filling Accuracy±0.5% (Volume-Based)
Filling Speed100-200 Barrels/Hour
Power Supply220V/380V, 50/60Hz, 3-Phase
Specification1500*500*1550 mm

Technical Specifications

Processing materialsEpoxy Putty
Viscosity range200,000-250,000 cps
Production capacity500L/batch
Plant process featuresApplicable for most industrial work
Core competencyAdvanced technology innovation ability

System Overview & Details

Industrial Processing System

Based on material characteristics and production requirements, the horizontal plow-type vacuum drying system features an integrated design. This encompasses powder unpacking, conveying, automatic liquid batching, mixing, drying, and intelligent control.

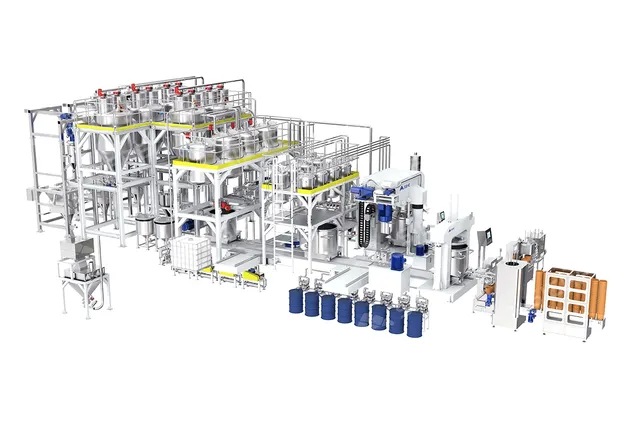

System Part 1

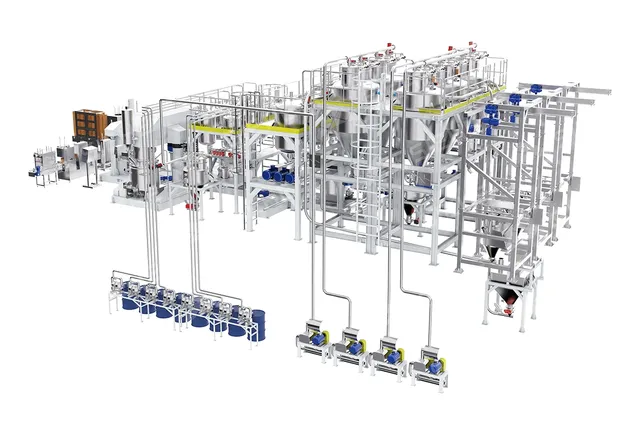

System Part 2

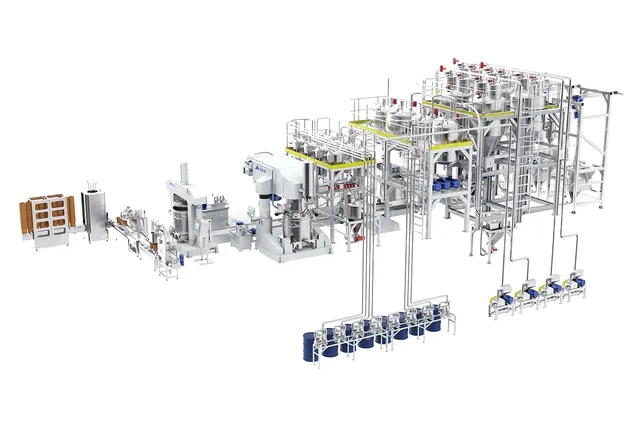

System Part 3
Powder Unpacking Feeds via small bag station to suppress dust and prevent impurities.
Liquid Dispensing Pressurized transport with heating jackets up to 180°C and high-accuracy sensors.
Control System Siemens PLC managed units with real-time monitoring and formula storage.
Detail 1

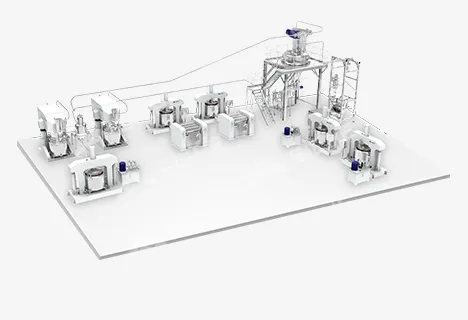

Detail 2

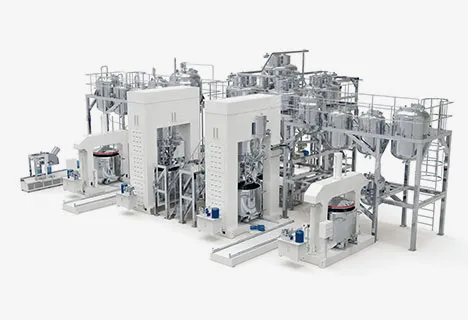

Detail 3
Cleaning System Equipped with 360° rotating high-pressure spray heads for comprehensive CIP cleaning.
Supporting Units Integrated heating/cooling (10-200℃) with high-precision control of ±1℃.
Mixed Drying Horizontal plowshare mixer ensures rapid homogenization and shortened drying cycles.

Key Features

Full integration of feeding, batching, mixing, drying, and filling.
Enclosed conveyor system with efficient dust removal for clean production.
Intelligent metering ensures stable batch ratios and product consistency.
Vacuum system + plow blades for rapid homogenization and depolymerization.
Compact integrated design adaptable to various plant requirements.

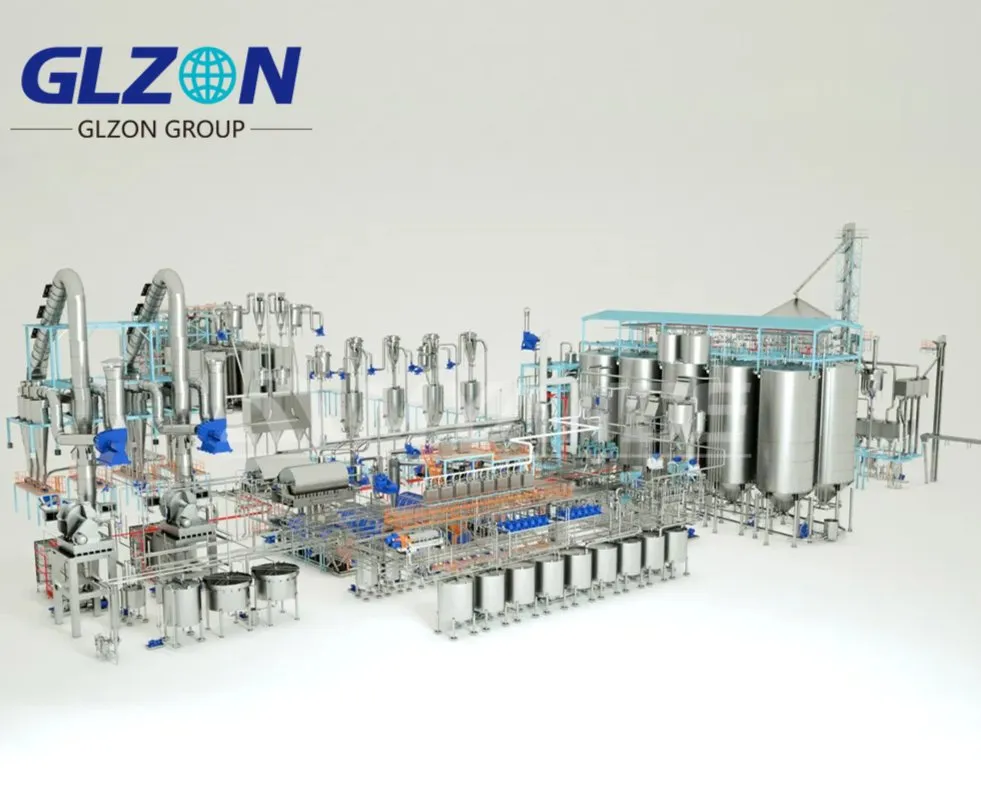

Integrated Production Line

Industrial Applications

Specializing in liquid filling lines, powder packaging, and bulk bag systems, the equipment serves industries such as petrochemical, chemical, paints, oils, food, and pharmaceuticals.

Bag Filler
Material Handling
Automation Unit
Packaging Line

Frequently Asked Questions

What is the filling capacity range of the GZM_30L?
The filling capacity is adjustable between 10L and 50L per barrel, designed specifically for liquid materials.
What is the weighing accuracy of the system?
The system utilizes high-precision weighing sensors (such as Mettler Toledo) with an accuracy of ±0.5% based on volume or 3‰ for specific liquid batches.
Can the machine handle high-viscosity materials?
Yes, the system is capable of processing high-viscosity materials like Epoxy Putty within the 200,000 to 250,000 cps range.
Does the system support automated cleaning?
Absolutely. The equipment features a Cleaning-In-Place (CIP) system with two 360° rotating high-pressure spray heads for one-button cleaning without dead corners.
What control technology is integrated into the equipment?
The equipment is managed by a Siemens PLC and touch screen interface, supporting real-time parameter monitoring, formula storage, and data traceability.
What power supply is required for operation?
The machine is compatible with 220V or 380V power supplies, operating at 50/60Hz on a 3-phase system.
