Advanced 30-Ton Flake Ice Storage and Rake System

Customization:	Available
Ice Making:	Flowing
Cooling Way:	Water-cooled

Send Inquiry

Product Description

Basic Specifications

Model NO.LR-30T

AutomationAutomatic

Unit StructureIntegral

Machine SizeLarge

Ice Temperature-5℃~-10℃

Ice ShapeFlake Ice

ApplicationFood Processing

CertificationUR, CE, SGS

ConditionNew

Ice Capacity30t

TransportContainer

Specification5600*2130*2555mm

OriginChina

HS Code8418699090

Product Description

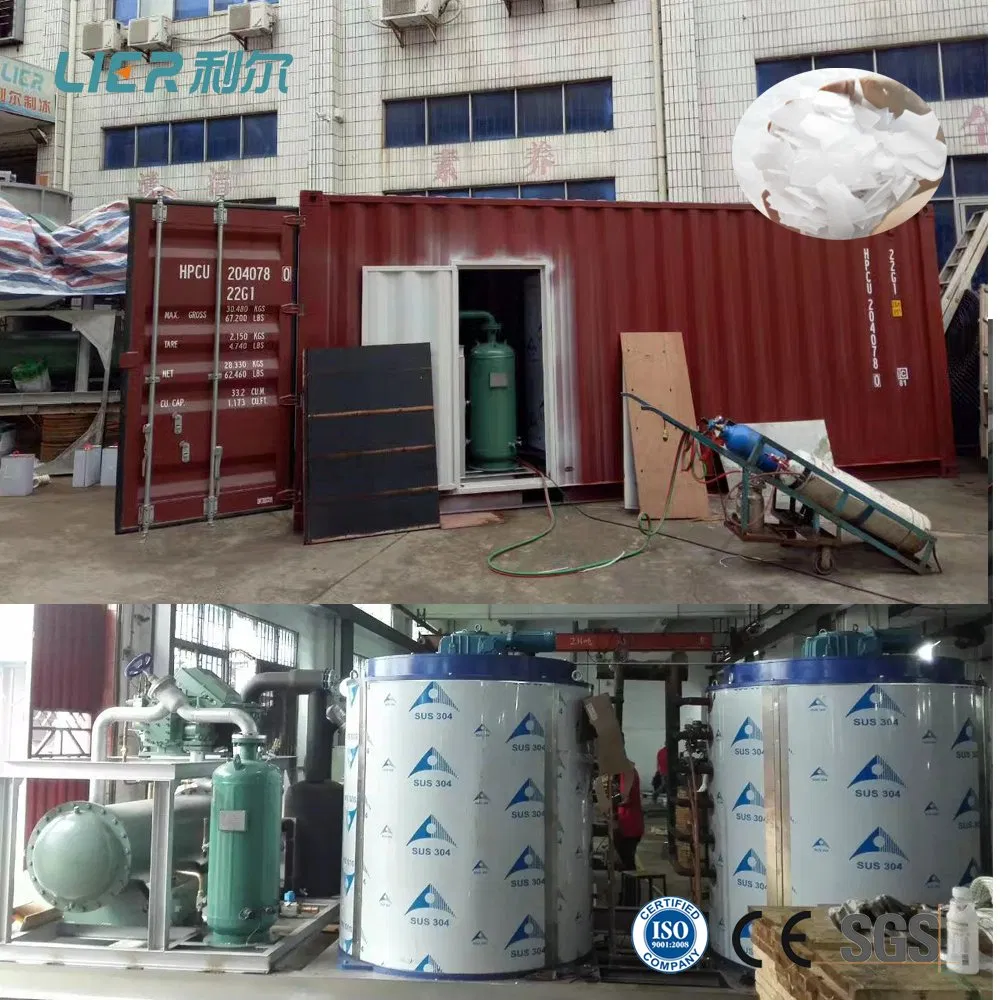

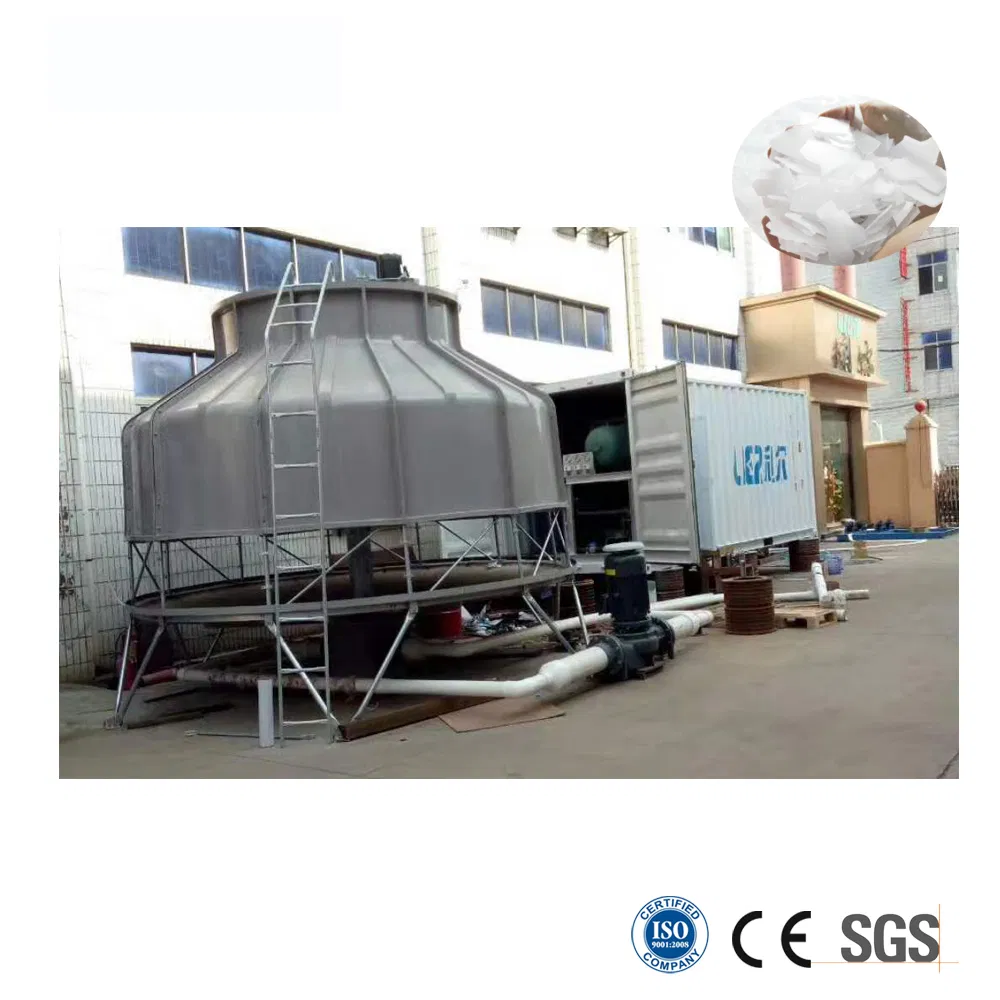

Flake Ice System with 30-Ton Rake Storage System

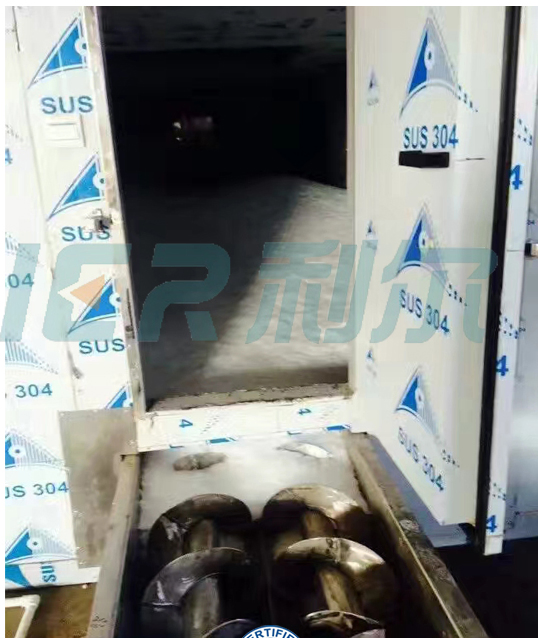

The ice rake system is primarily installed in ice storage containers for flake ice. Flake ice is composed of dry, small pieces. After harvesting, ice falls into the storage room where it can easily pile up and block sensors. An automatic ice rake is essential to level the ice and ensure continuous operation.

Intelligent Sensors: Full-time sensors detect ice levels and command the rake structure to move horizontally, tiling the ice flakes.
Automated Cycle: Once the ice is flat, the rake enters dormant mode until new ice is detected.
Temperature Control: A cooling fan system maintains temperatures between 5ºC to 8ºC to keep flakes dry and prevent bridging.
Sanitary Design: All internal parts and lubricating oils are food-grade quality.
Large Capacity: Storage container capacities available up to 100 tons.

Core Features:

Superb Stability: Long service life with EU standard quality.

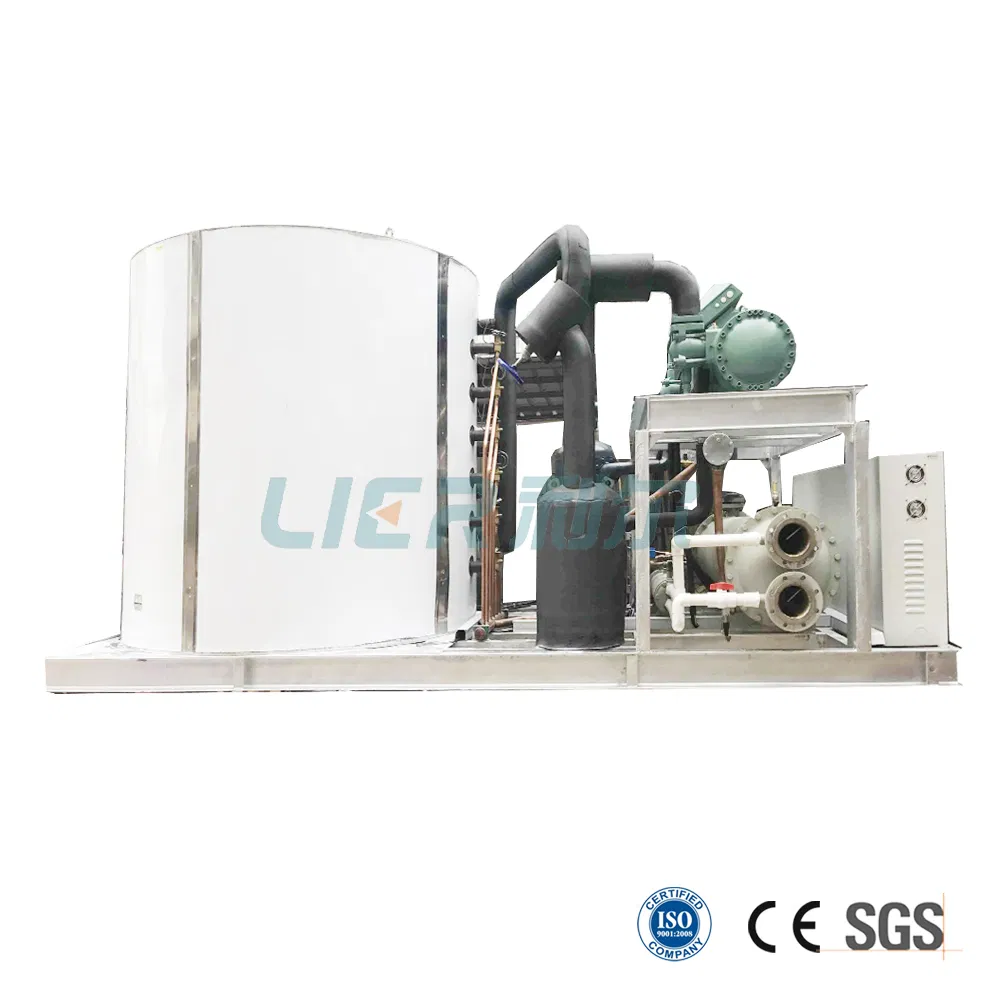

Premium Components: Utilizes Germany Bitzer/Italy Refcomp/Taiwan Hanbell compressors and Danfoss valves.
Advanced Control: LG PLC controller and HCI (Human-Computer Interaction) for remote monitoring and self-protection.
High Efficiency: Evaporators designed to produce 1/20 more ice than standard conditions.

Technical Parameters

Model	Daily Output (kg/24h)	Ref. Capacity (kw)	Power Supply	Total Power (kw)	Refrigerant	Dimensions LWH(mm)	Weight (kg)
LR-02T	200	1.2	1P/220V/60HZ	1.1	R404A	760730600	105
LR-05T	500	3	3P/380V/50HZ	2.62	R404A	1310890780	195
LR-1T	1000	6	3P/380V/50HZ	4.31	R404A	1310970880	227
LR-2T	2000	12	3P/380V/50HZ	10	R404A	150010951050	425
LR-5T	5000	30	3P/380V/50HZ	23.12	R404A	175015501600	765
LR-10T	10000	65	3P/380V/50HZ	45.5	R404A	253018301680	1540
LR-20T	20000	130	3P/380V/50HZ	75.8	R22	369520902050	2860
LR-30T	30000	210	3P/380V/50HZ	86	R22	388021202400	3240

Service & Support

Pre-sale: 24/7 consultation, customized OEM/ODM solutions, and R&D support.
Sale Service: Strict adherence to delivery dates and comprehensive cargo management.
After-sales: Responsible for technical issues and quality assurance.
Technical Support: Installation guidance, debugging, operation training, and spare parts availability.

Frequently Asked Questions

1. Why is an ice rake system necessary for flake ice storage? Flake ice is dry and tends to pile up quickly. An automatic rake levels the ice to prevent false "full" signals to sensors and ensures the system operates continuously.

2. What is the daily production capacity of the LR-30T model? The LR-30T is designed for large-scale operations with a daily output of 30,000kg (30 tons) per 24 hours.

3. Are the materials used in the system safe for food processing? Yes, all internal components and even the lubricating oils used in the container are sanitary and food-grade.

4. How is the temperature maintained in the ice container? The system includes a cooling fan that maintains temperatures between 5ºC and 8ºC, keeping the ice flakes dry and preventing them from sticking or "bridging."

5. Does the system support remote monitoring? Yes, the HCI (Human-Computer Interaction) control system allows for remote status checks and equipment control via a computer.

6. What certifications does this flake ice machine hold? The equipment is certified by UR, CE, and SGS, meeting international standards for safety and quality.
