Concrete cooling is a vital procedure that diminishes the temperature of poured concrete to a specific level, ensuring the structural integrity and quality of the mix. In regions with high ambient temperatures, concrete cooling prevents splitting or cracking and manages heat generation during the curing process.

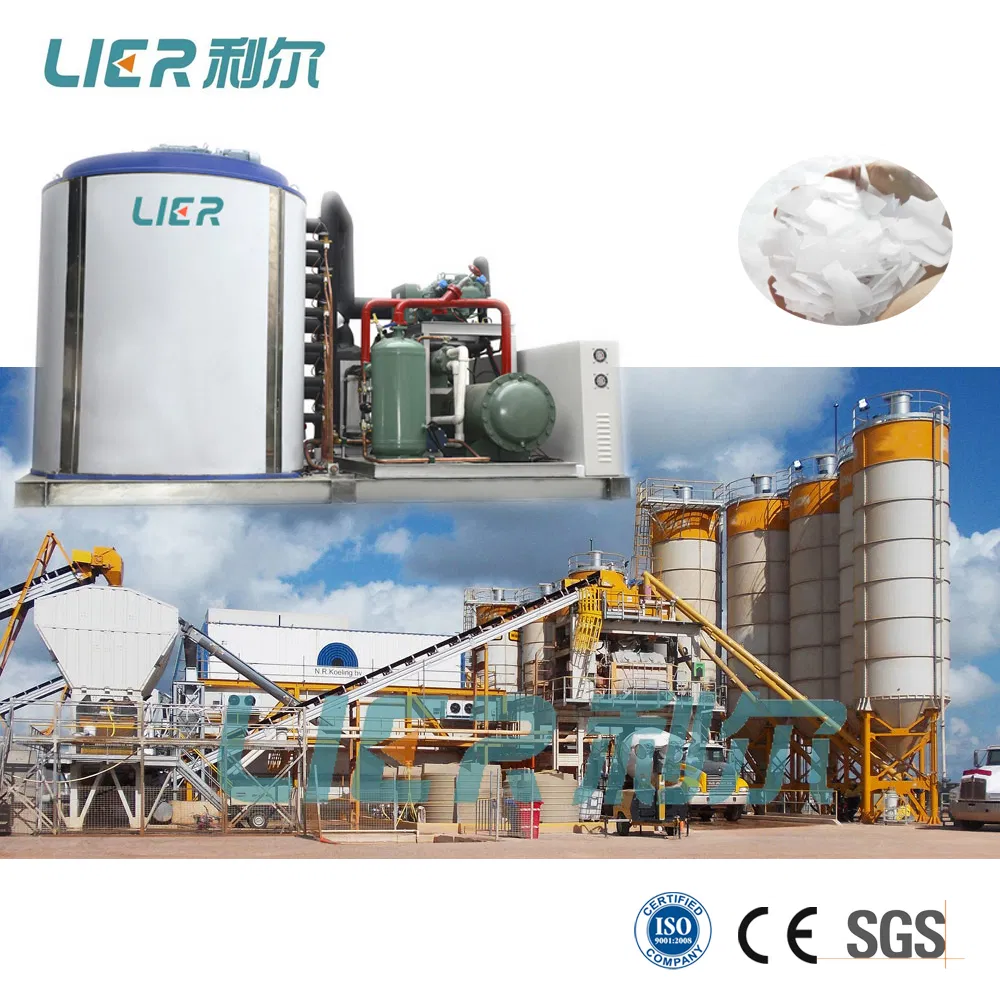

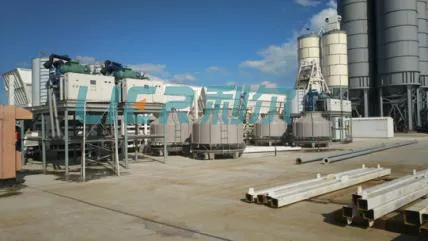

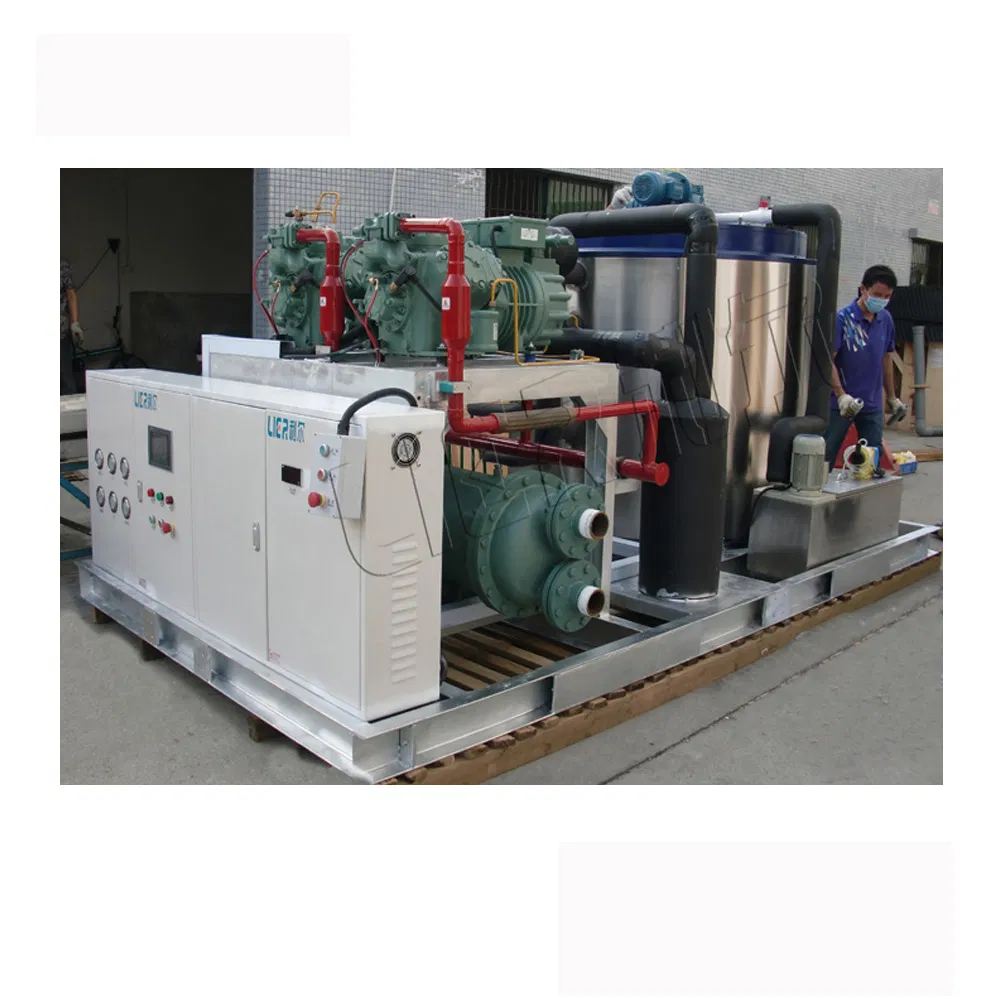

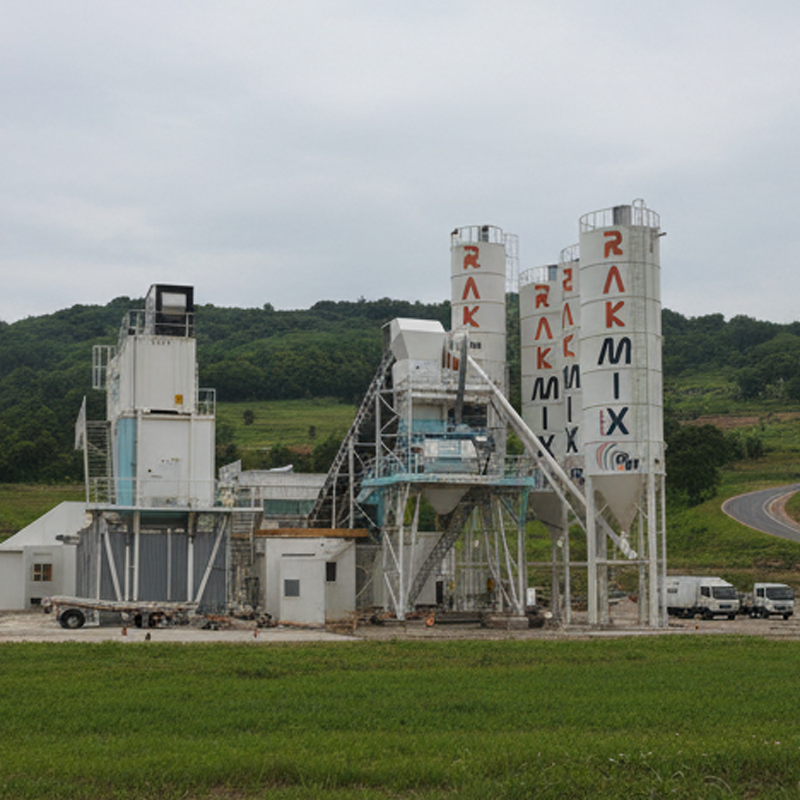

Flake ice is the preferred cooling method for mass pour projects such as hydro dams, nuclear power plants, and batching plants. It effectively reduces heat during hydration, meeting critical low-temperature specifications.

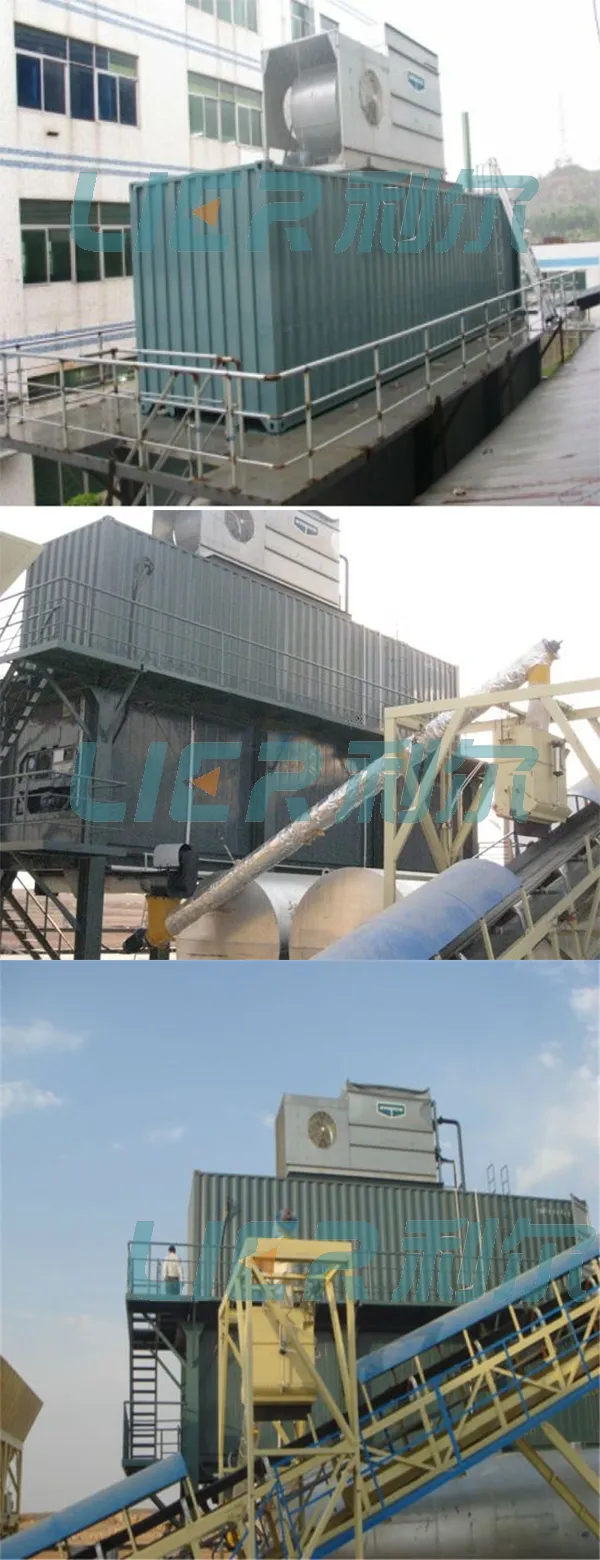

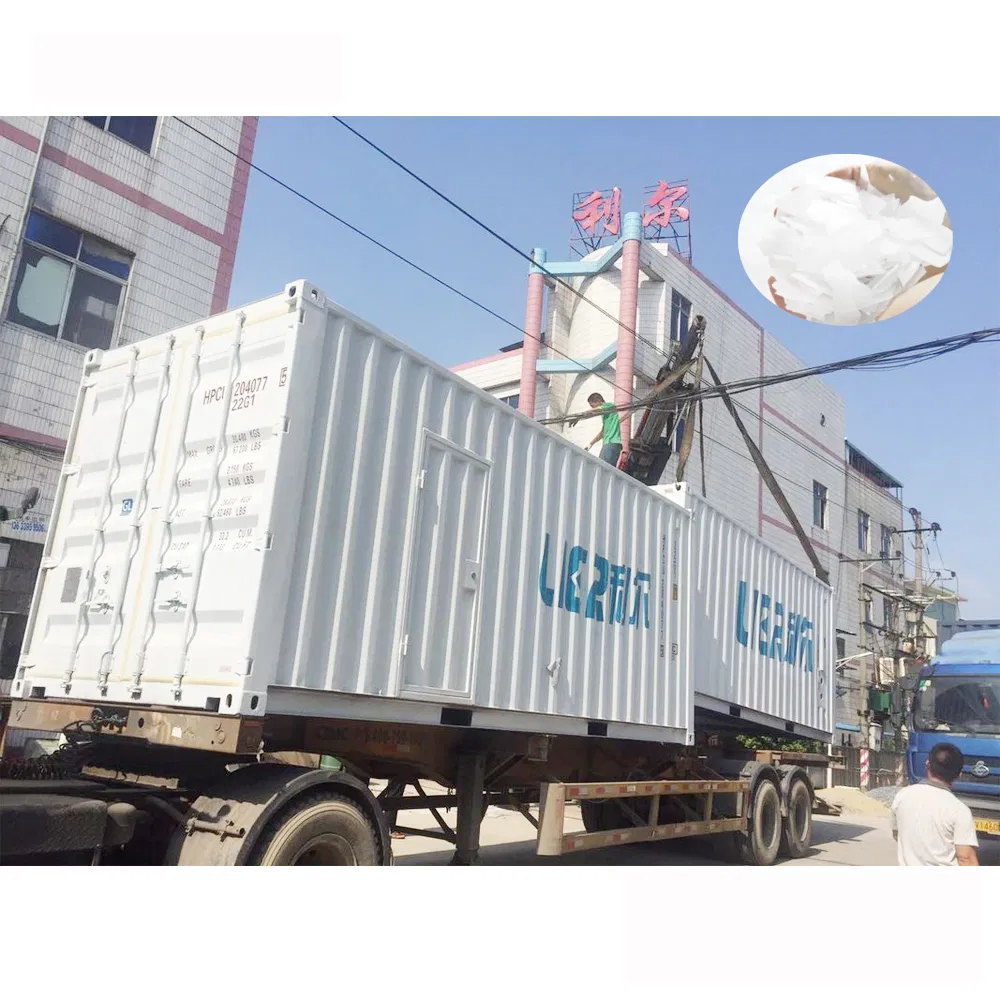

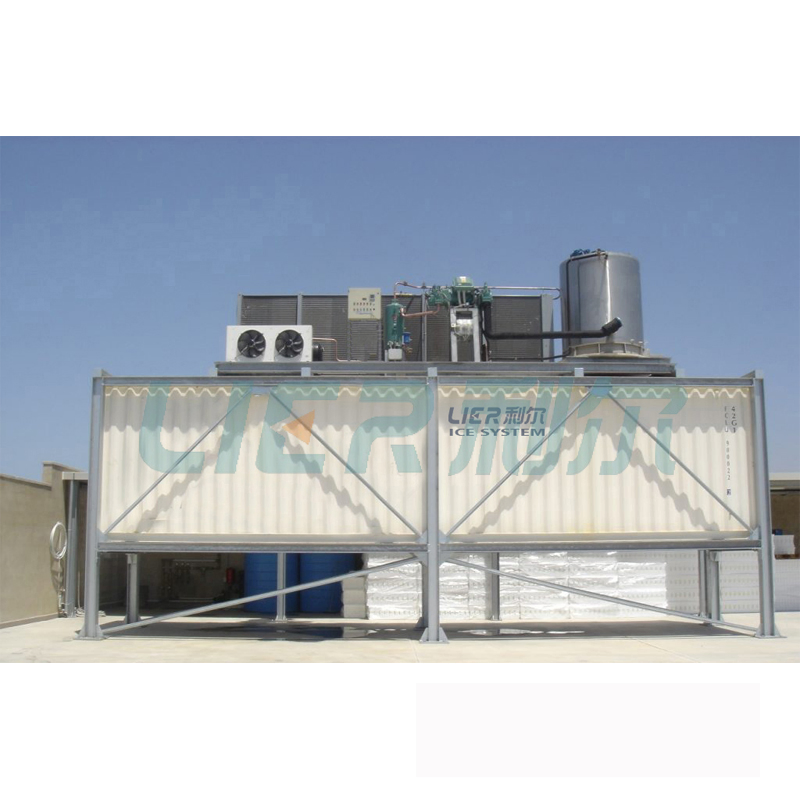

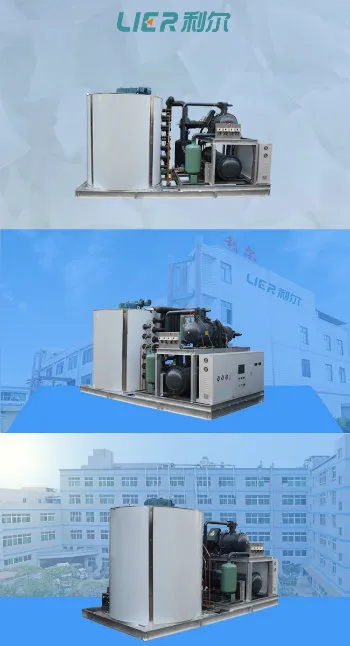

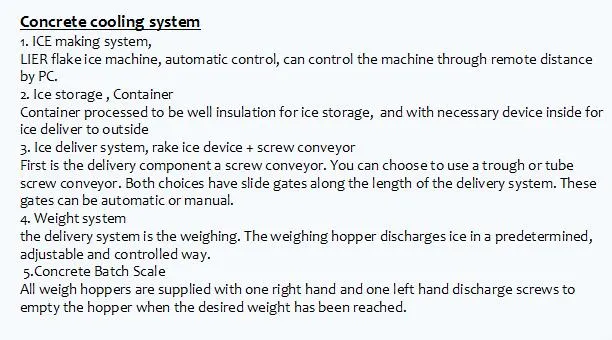

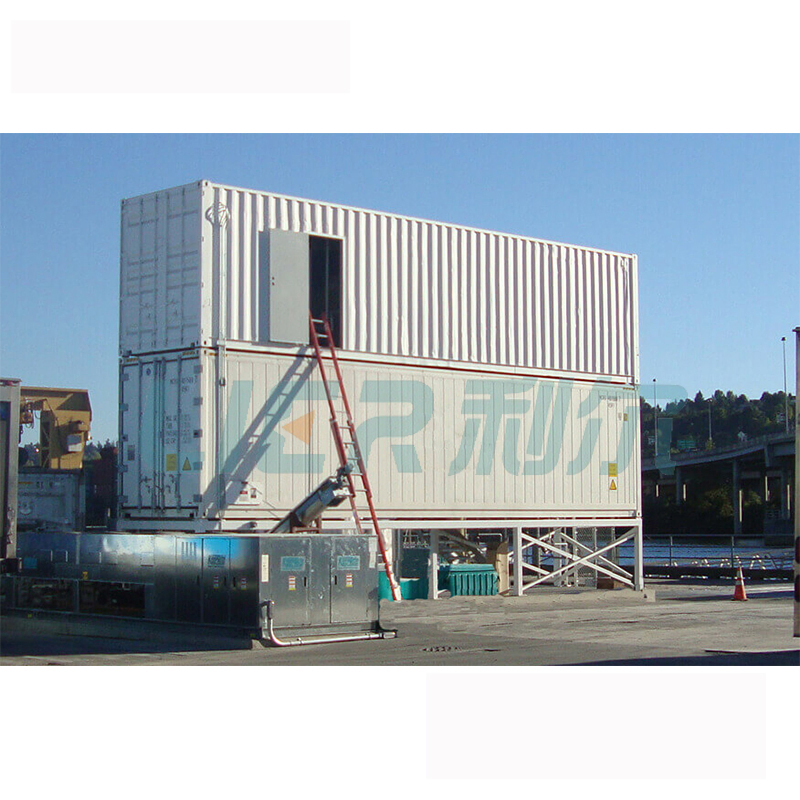

Automatic ice rake systems are installed in storage containers to prevent flake ice from piling up and blocking sensors. Sensors continuously detect ice levels, commanding the rake to level the ice flakes automatically.
Cooling fans within the container maintain temperatures between 5ºC to 8ºC, keeping ice dry and preventing bridging for easy transport. All internal parts are sanitary and food-grade.
| Model | Daily Output (kg/24h) | Ref. Capacity (kw) | Power Supply | Total Power (kw) | Refrigerant | Dimensions (L*W*H mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| LR-1T | 1000 | 6 | 3P/380V/50HZ | 4.31 | R404A | 1310*970*880 | 227 |
| LR-5T | 5000 | 30 | 3P/380V/50HZ | 23.12 | R404A | 1750*1550*1600 | 765 |
| LR-10T | 10000 | 65 | 3P/380V/50HZ | 45.5 | R404A | 2530*1830*1680 | 1540 |
| LR-20T | 20000 | 130 | 3P/380V/50HZ | 75.8 | R22 | 3695*2090*2050 | 2860 |
| LR-30T | 30000 | 210 | 3P/380V/50HZ | 86 | R22 | 3880*2120*2400 | 3240 |
Our comprehensive service ensures optimal performance from project planning to after-sales maintenance.

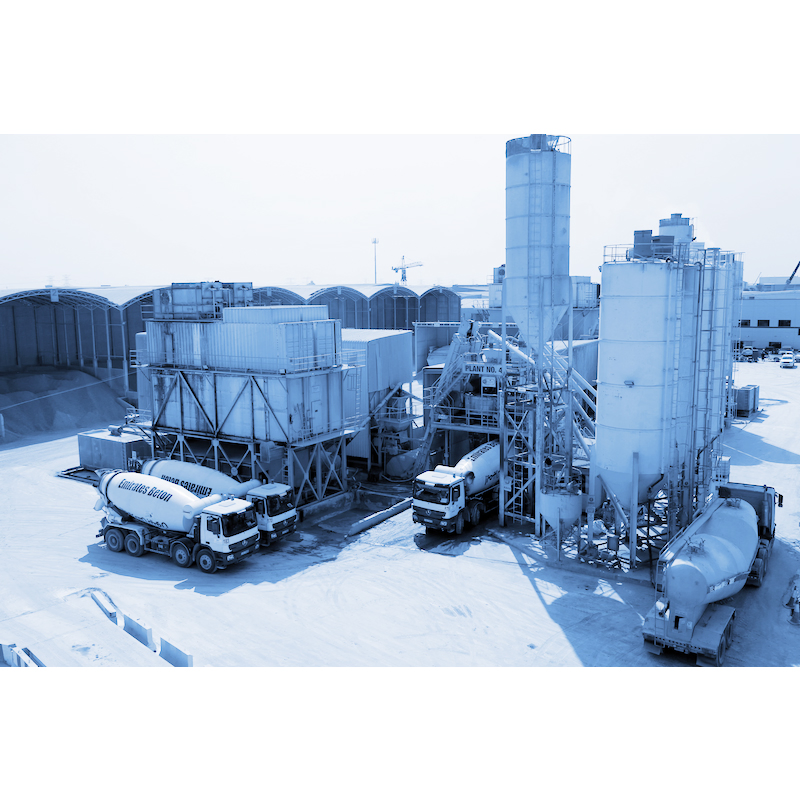

In large-scale construction, concrete hydration generates significant heat. Cooling with ice maintains the temperature between 10-21°C, preventing cracks and ensuring the structural integrity of the project.
Flake ice is thin and dry, providing a large surface area for rapid cooling. It mixes evenly with concrete without leaving large clumps, making it the best choice for mass pour projects like dams and power plants.
The ice rake system prevents ice from "mounding" and triggering false full-room signals. It levels the ice automatically, ensuring maximum storage capacity and consistent delivery to the batching plant.
Yes, we use international high-end brands such as Bitzer or Refcomp compressors, Schneider electrical components, and Siemens or LG PLC controllers for maximum reliability and service life.
Our ice container and rake systems are highly scalable, with manufacturing capacities supporting up to 100 tons per day to meet the needs of even the largest construction sites.
Absolutely. We provide comprehensive installation guidance, debugging support, and training services to ensure your team can operate the system efficiently and safely.
