Basic Info.
◈Model NO.:2-380L
◈Size:Medium
◈Structure:Assembled
◈Use Nature:Distribution
◈Suitable for:Factory
◈Usage:Food, Blood, Medicine
◈Warranty:1-2 Years
◈Certification:RoHS, CE, SGS
◈Type:Box Type Condensing Unit
◈Application:Cold Room, Freezer
◈Gas:Refrigerant, Ammonia
◈Voltage:110V-440V
◈Compressor:Bitzer, Copeland
◈Capacity:30HP
◈Production:2000unit/Week
Product Description

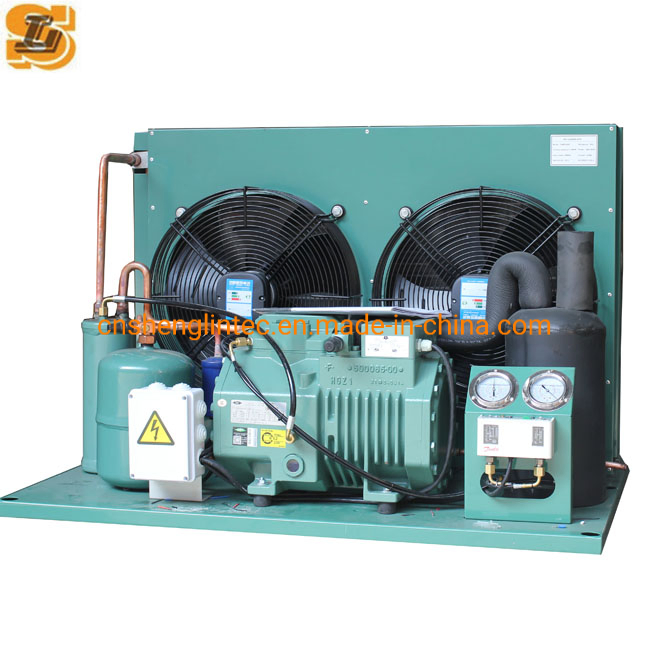

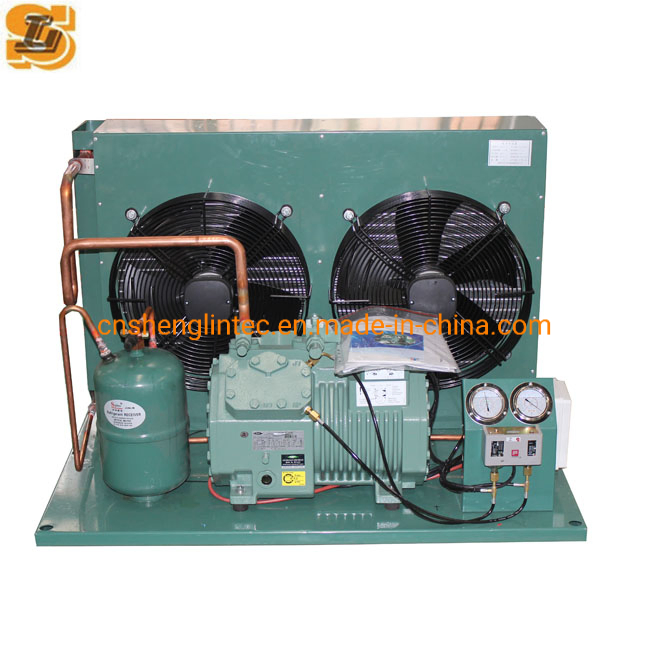

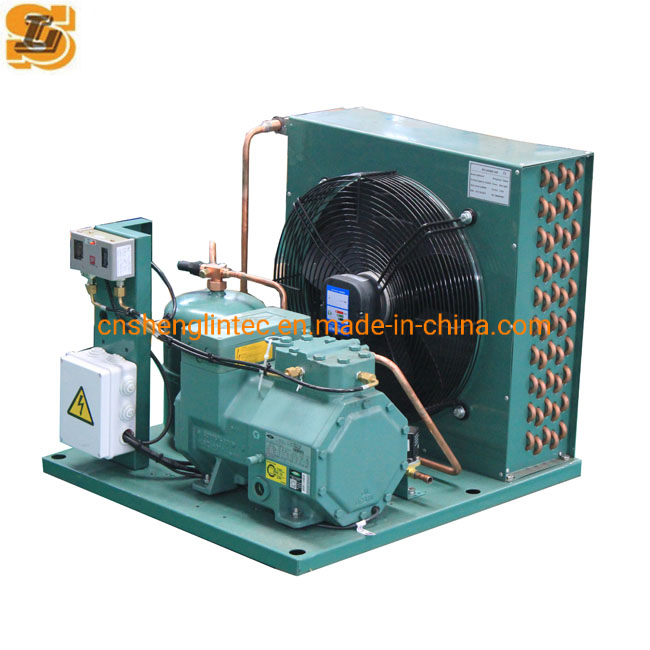

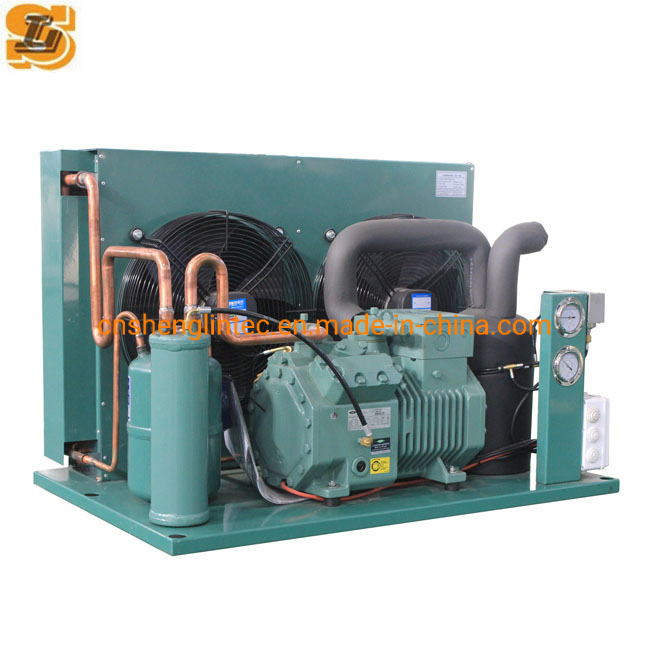

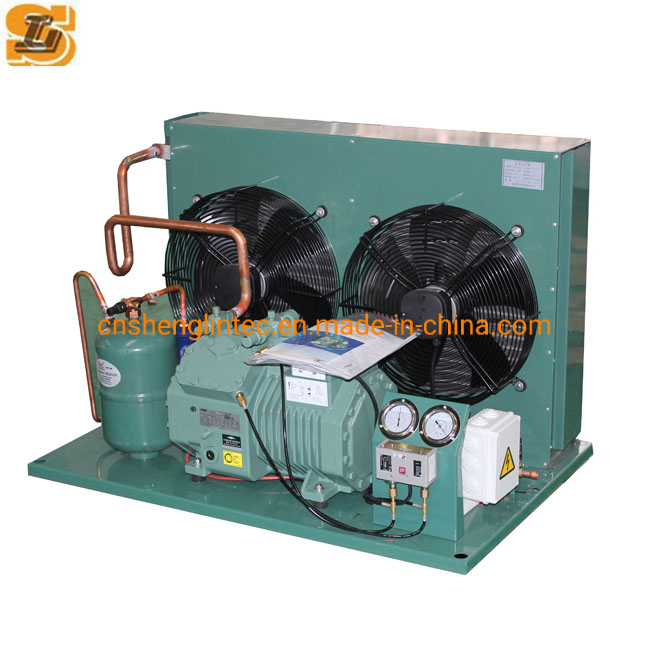

Air Cooled Hermetic Compressor Condensing Unit for Container Food Protection
Condensing Unit Characteristics:
- Condensing unit for medium & high temperature (environment +12ºC~ -10ºC)
- Condensing unit for low temperature & frozen environment (-10ºC ~ -30ºC)

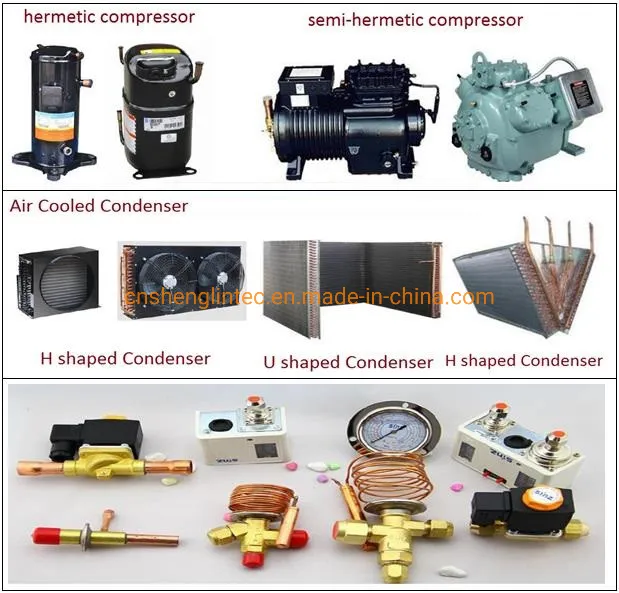

- Equipped with semi-hermetic piston compressor
- Air cooled condensers punched by high velocity ram machine with mechanical tube expansion for high heat exchanging capacity.
- Shell & tube water condensers use high efficient wire-whorled copper pipes.
- Strictly inspected based on "Pressure Vessel of Refrigeration equipment" standards.

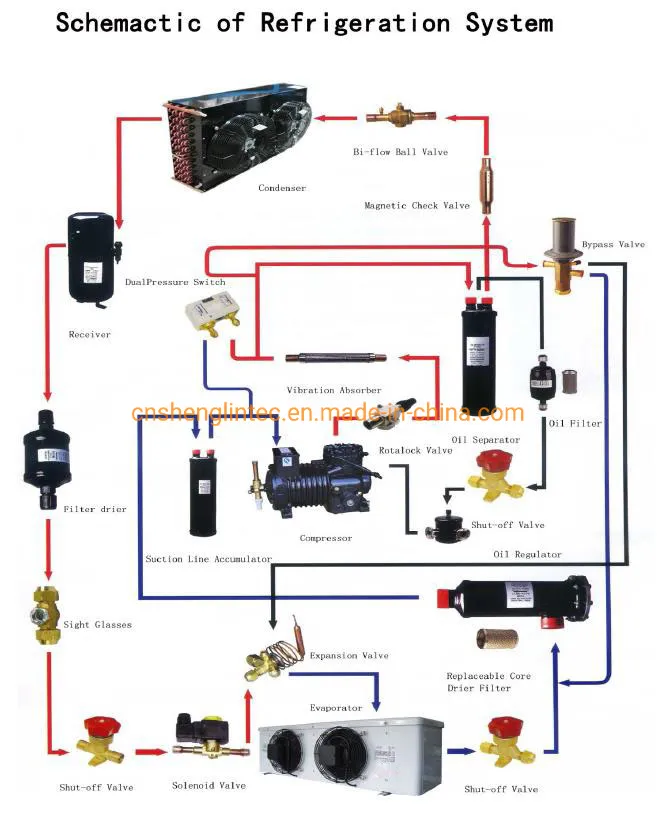

- Equipped with well-known brand parts: filter drier, solenoid valve, double pressure controller, vibration absorber, oil separator, and sight glass.
Standard Components: Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame.
Optional Components: Shock absorber, oil separator, gas liquid separator.
| Model |
2-100L |
2-120L |
2-140L |
2-160L |
2-180L |
2-190L |
2-200L |
| Evaporating temperature |
-15ºC to -40ºC |
| Refrigerant |
R404A |
| Power supply |
380V/50HZ |
| Unit |
Type |
Semi hermetic screw type |
| SRL |
160E-DP |
200E-DP |
240E-DP |
290E-DP |
330E-DP |
350E-DP |
370E-DP |
| Qty |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| Refrigerating Capacity & Power |
| -20ºC |
QoW |
- |
160240 |
198700 |
243980 |
296760 |
330020 |
353820 |
382020 |
| PeKW |
- |
65.1 |
78.22 |
95.76 |
117.18 |
139.54 |
149.02 |
149.92 |
| Overall Dimension |
| L(mm) |
2380 |
2600 |
2850 |
2850 |
2850 |
2850 |
2980 |
| W(mm) |
1500 |
1600 |
1600 |
1650 |
1700 |
1700 |
1700 |
| H(mm) |
1764 |
1779 |
1779 |
1892 |
1892 |
1892 |
1972 |
Frequently Asked Questions
What temperature ranges do these condensing units support?
We offer units for medium & high temperatures (+12ºC to -10ºC) and low temperature/frozen environments (-10ºC to -30ºC).
What brands of compressors are used in your units?
Our units are equipped with world-renowned semi-hermetic piston or screw compressors, such as Bitzer and Copeland.
Are the condensing units customizable?
Yes, we offer comprehensive customize services and welcome OEM/ODM requests to meet specific technical requirements.
What certifications do your refrigeration products carry?
Our products are certified with CE, RoHS, and SGS, ensuring compliance with international quality and safety standards.
What are the primary applications for this equipment?

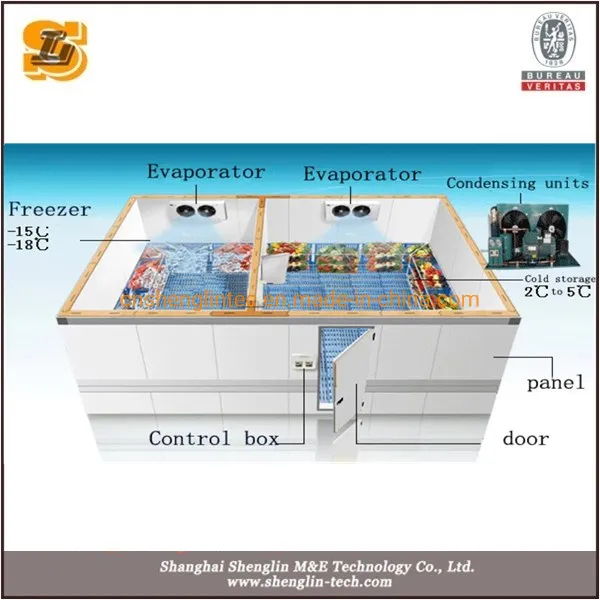

These units are ideal for cold rooms and freezers used in the storage and protection of food, blood, and medicines.

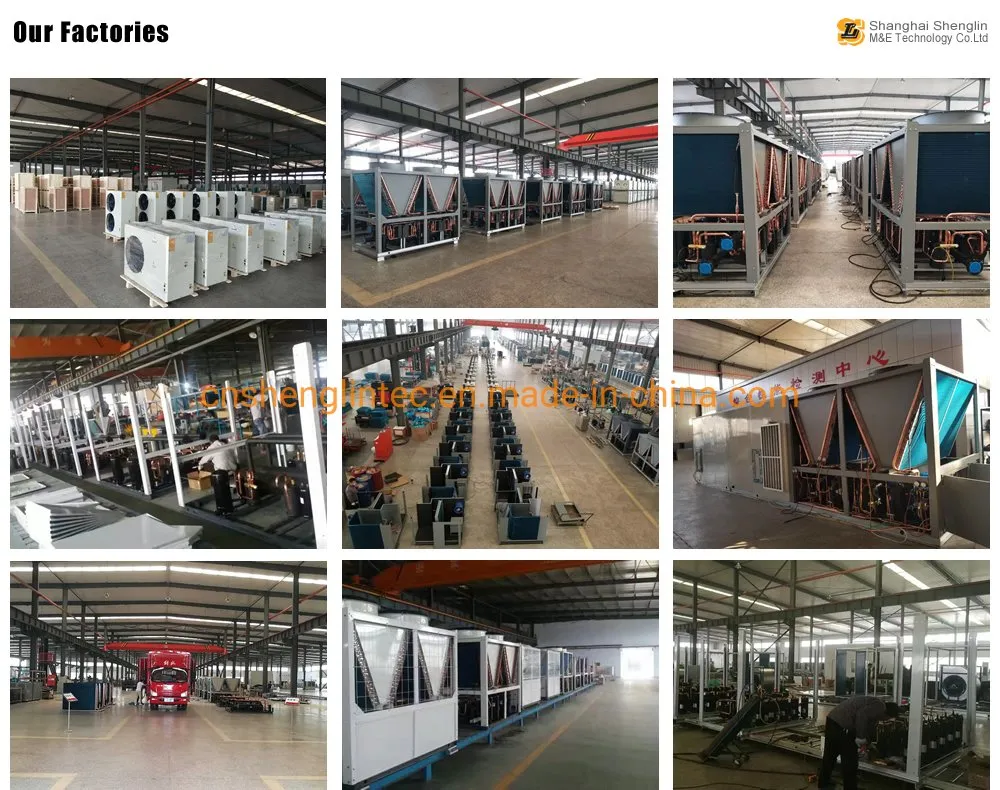

What is your weekly production capacity?
We have a robust manufacturing capability with a production capacity of approximately 2000 units per week.
