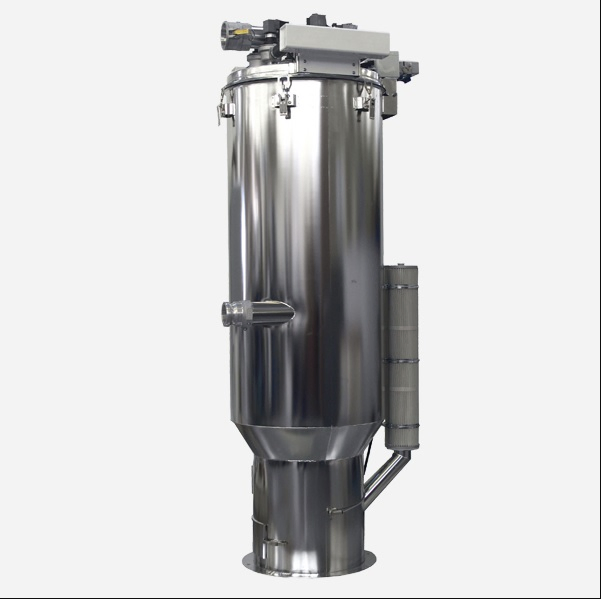

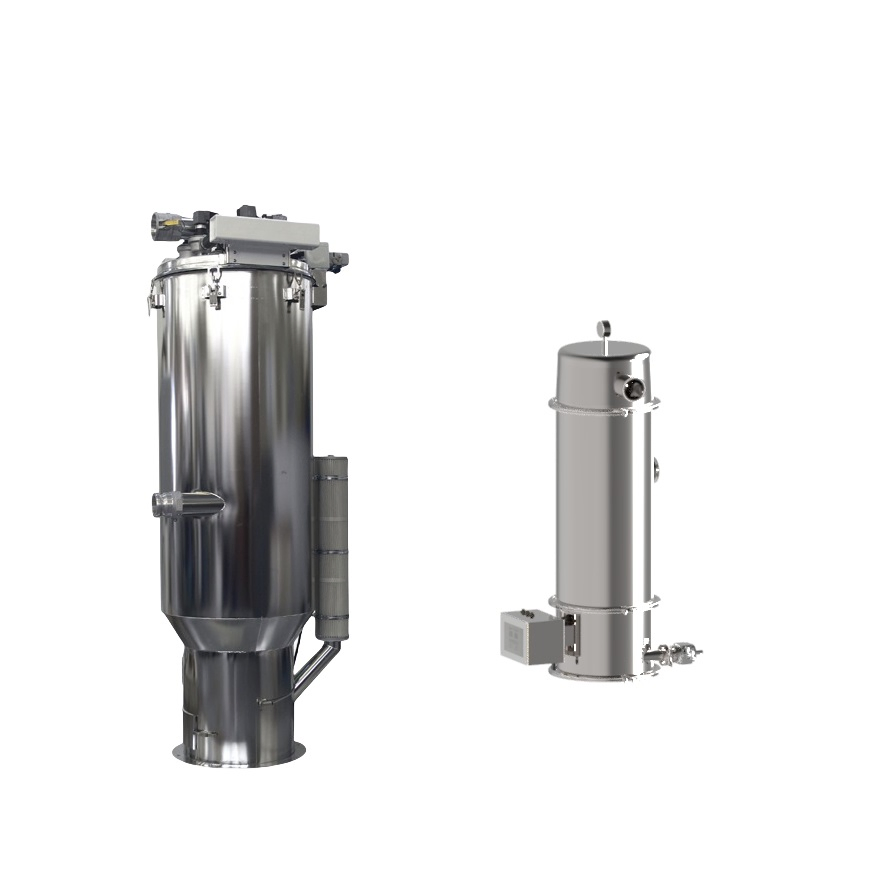

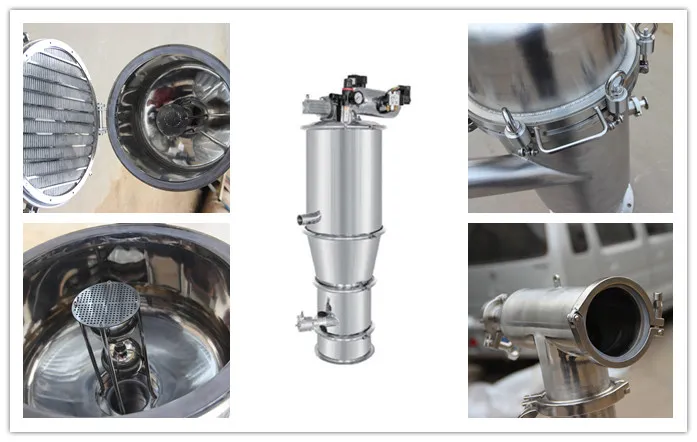

The vacuum suction equipment uses a vacuum pump to generate a vacuum, and the negative pressure sucks the material out of the feeding port. Then, the air is separated from the material in the filtration chamber of the separation container. The material automatically falls due to gravity and is collected in the silo.
Our cyclone separator prevents fine powder from entering the filter to improve the efficiency of the filter. When the silo is filled with materials, the vacuum pump will automatically shut down and the pressure inside the conveying equipment will reach equilibrium.
| Model Parameters |
RX-14 |
RX-33 |
RX-56 |
| Volume (L) | 14 | 33 | 56 |
| Power (W) | 200 | 200 | 200 |
| Air Pressure (Mpa) | 0.6 | 0.6 | 0.6 |
| Capacity (t/h) | 2.5-5.5 | 4-7 | 6-8 |
| Overall Dimension (mm) | Φ400*1000 | Φ400*1250 | Φ650*1350 |

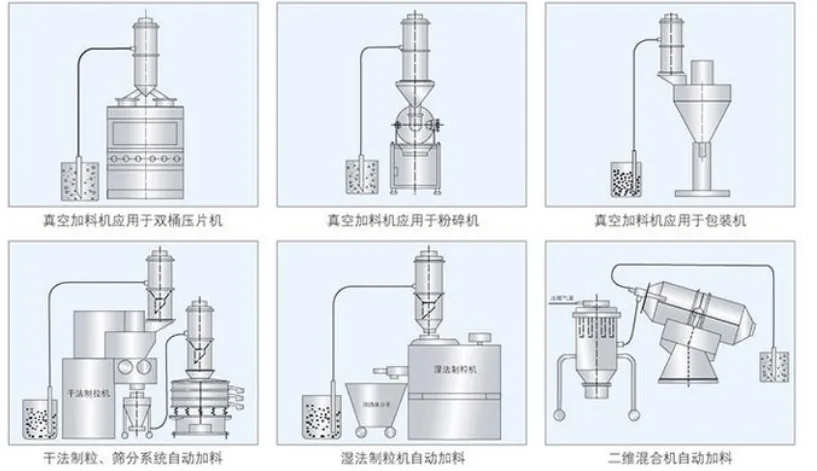

Pharmaceuticals: Raw materials, powders, granular materials, capsules, and tablets.
Food Industry: Additives, flour, cocoa powder, candies, and crystals.
Chemical Industry: Metal powders, dyes, pigments, and carbon powder.
Agriculture: Bulk grain seeds and urea fertilizers.
?
Frequently Asked Questions
Q1: What materials are suitable for the vacuum feeding conveyor?
A: It is ideal for powders, granular materials, and mixed materials in the pharmaceutical, food, chemical, and agricultural industries.
Q2: Does the equipment meet hygiene standards?
A: Yes, it is made of stainless steel and designed to meet GMP requirements, ensuring no dust pollution during the conveying process.
Q3: How does the filter cleaning system work?
A: The equipment features an automatic blowback airbag that cleans the filter element during the unloading phase to maintain efficiency.
Q4: Can it handle multi-point feeding?

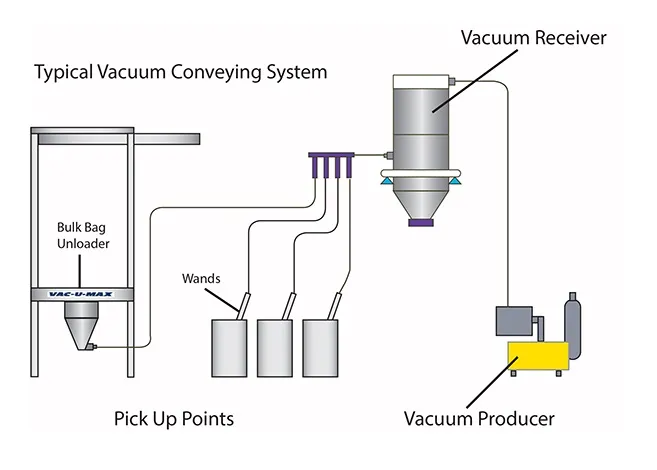

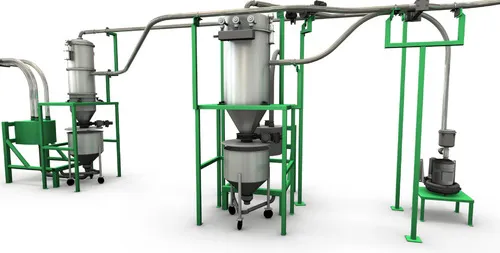

A: Yes, the suction type is specifically designed for centralized transportation of materials from multiple locations to a single collection point.
Q5: What is the standard warranty and delivery time?
A: We provide a 1-year warranty, and the standard delivery time is between 10 to 25 days depending on the model.
Q6: Is the vacuum conveyor easy to install?
A: Yes, the interfaces use a quick-installation design (2-4 inch options) for easy setup and integration with existing machinery like mixers or packaging machines.
