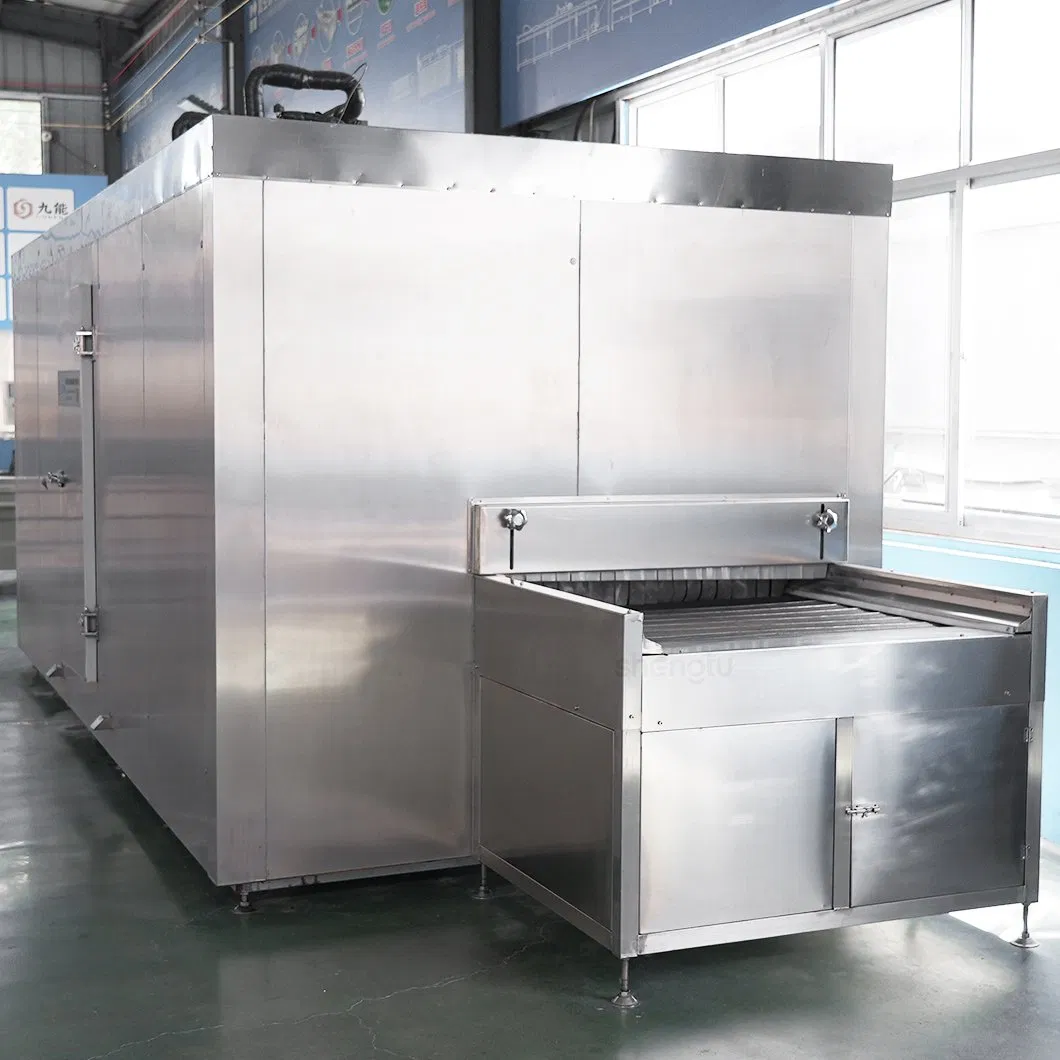

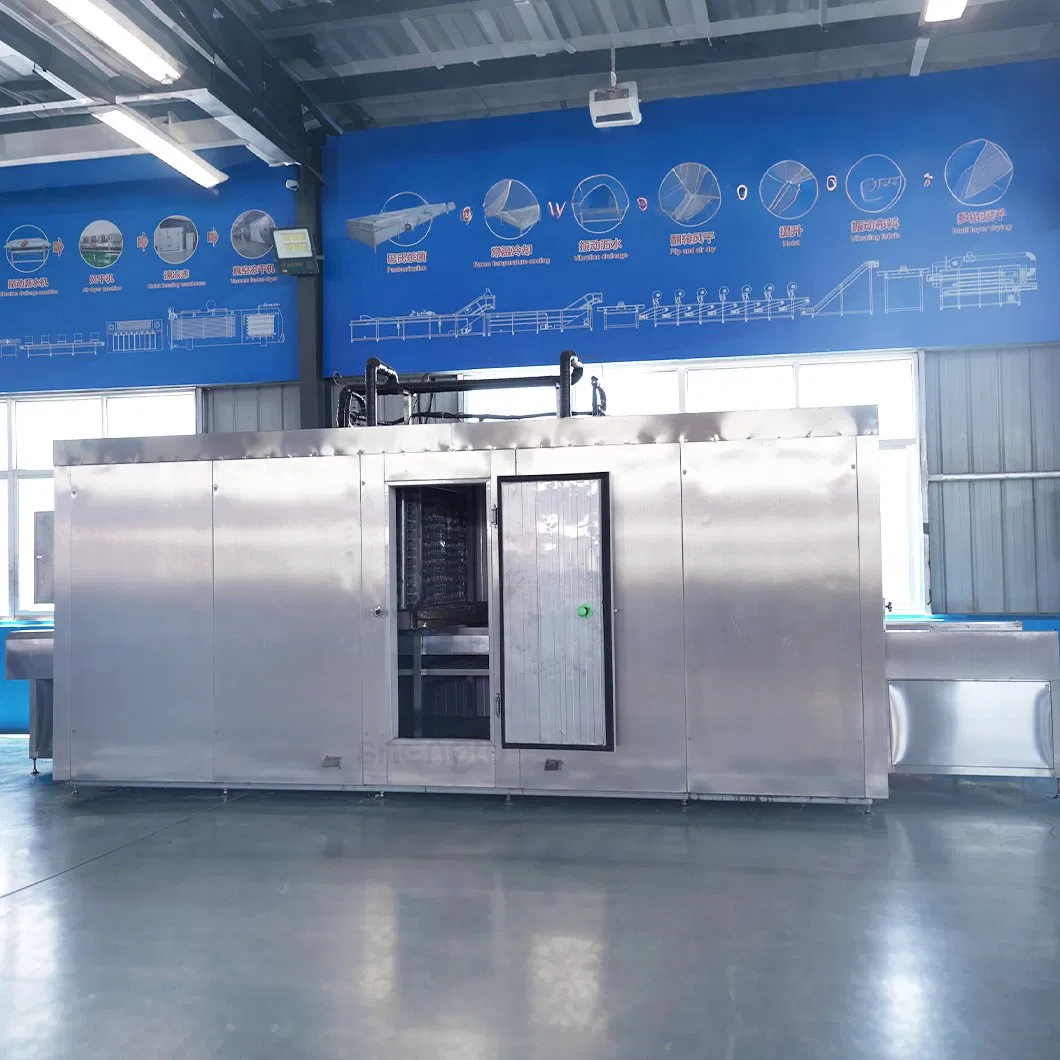

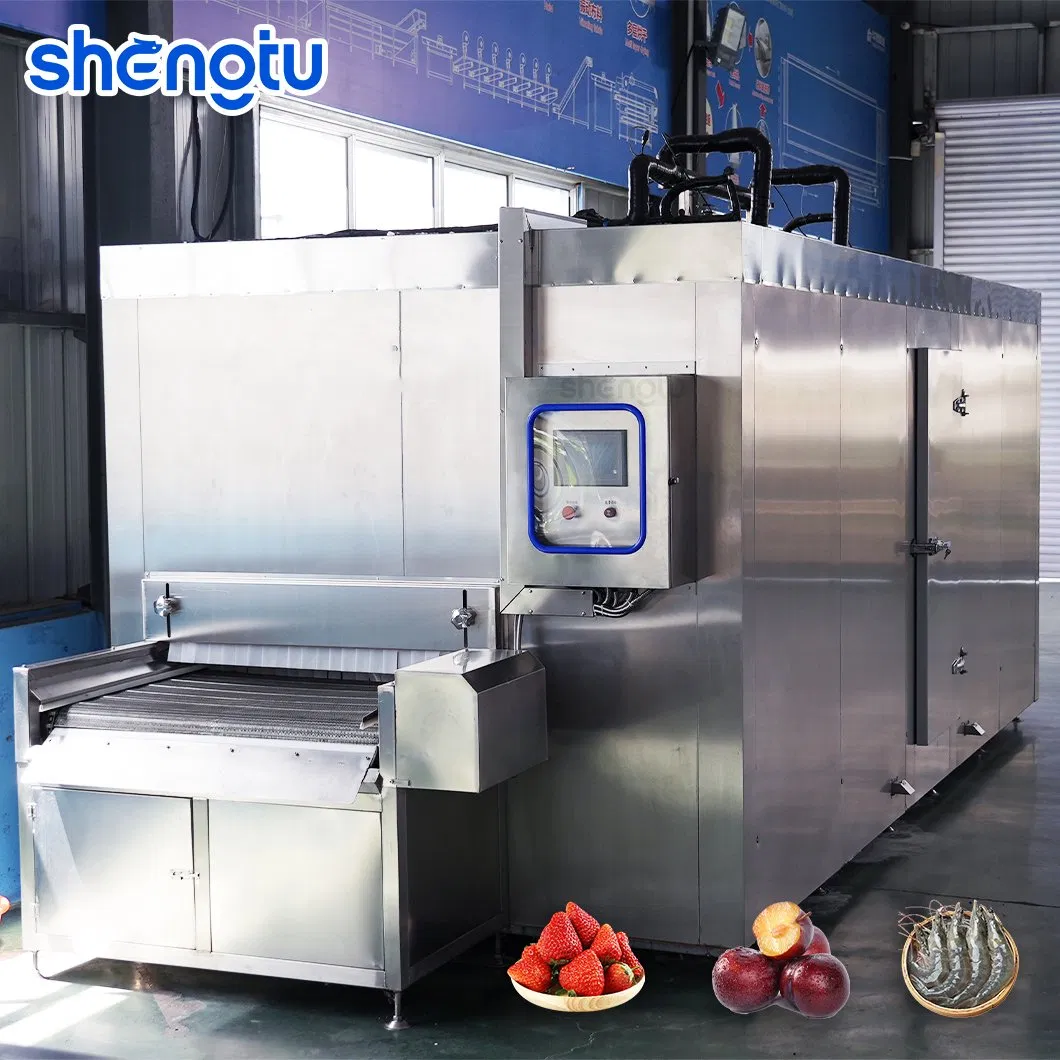

Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
1 / 5
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer
Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer

Automated Cryogenic Freezing Tunnel - Ready-to-Cook Food Freezing System for Seafood Freezer

Customization: Available
After-sales Service: One-Year Free Maintenance and Lifetime Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model
GR01-19
Type
Tunnel Fast Freezer
Voltage
380V
Power
4kw / 7kw / 10kw..
Material
Stainless Steel
Control System
PLC
Production Capacity
70 sets / Year
Application
Food Processing
Feature
Anti-Corrosion
Packaging
Standard Export Wooden Case

Product Description

Energy Saving High Capacity Automated High Speed Tunnel Quick Freezer for Seafood Vegetable Meat Fruit Dairy Products with CE Certified.
Video Cover

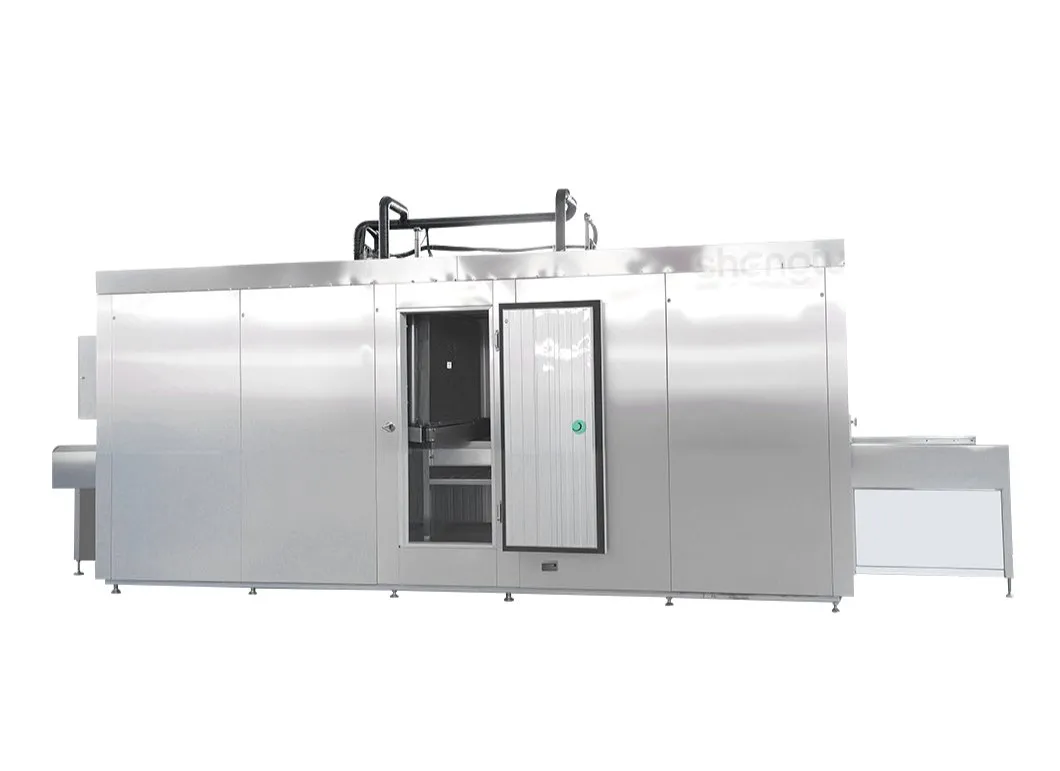

Tunnel Freezer Structure

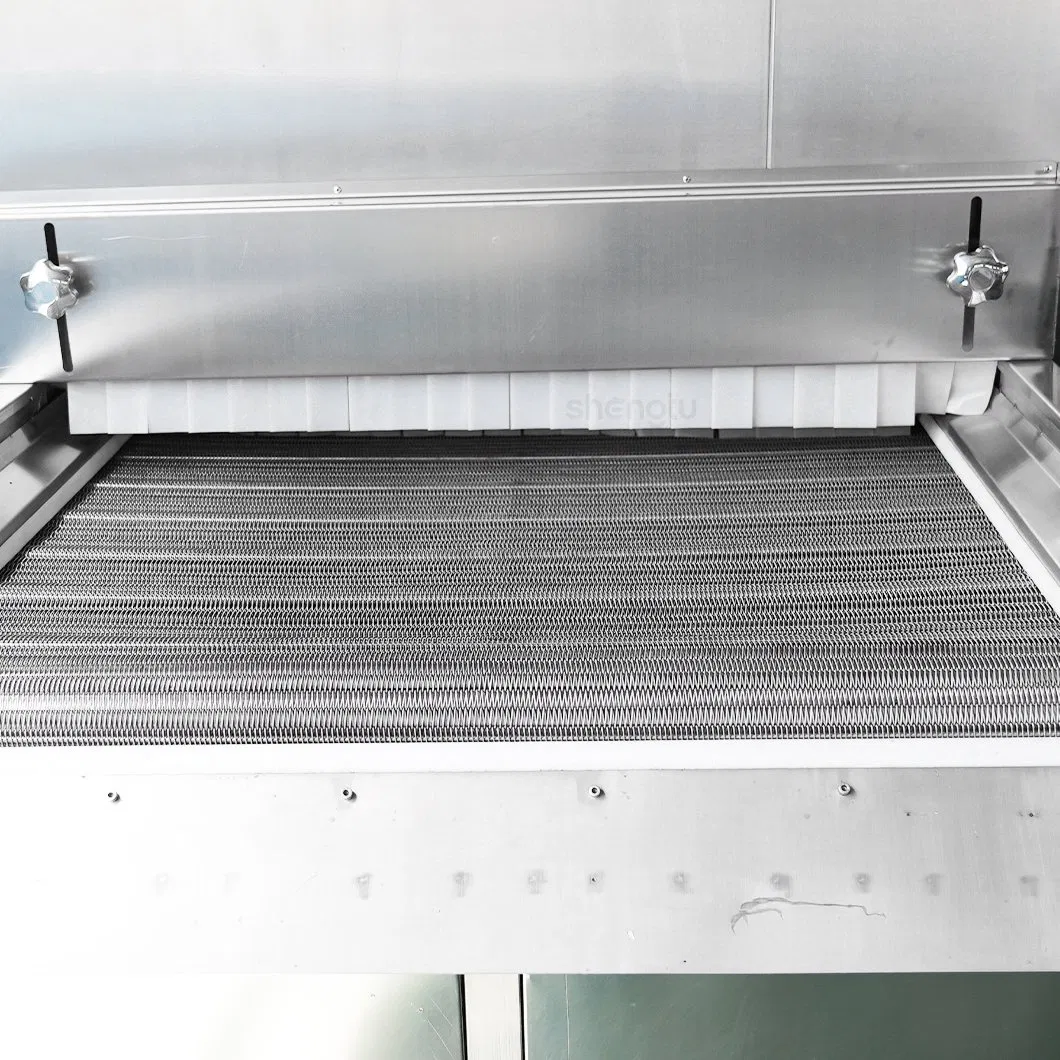

Tunnel-type quick-freezers utilize insulating materials to form an insulated tunnel. Inside the tunnel, a slow-moving conveyor system transports goods, which are rapidly frozen by intense cold air. Production capacity ranges from 100 to 2000 kg/h. Tunnel temperatures typically range from -30 to -40°C, with cold air speeds of approximately 3-6 m/s.
Model Total Length Width Height Inlet Length Mesh Belt Width Cooling Consumption Installed Power
B03-4660023002200900120022KW4KW
B03-1213800250023001000140075KW12KW
B03-402250041002500150030002200KW40KW
B03-CustomCustomizedCustomizedCustomizedCustomizedCustomizedCustomizedCustomized

Core Features & Advantages

❄️
Uniform Cooling
Rapidly passes through the ice crystal formation zone (0-5°C) within 30 minutes, preserving texture.
⚡
Energy Efficiency
Reduces electricity consumption by 30-40% compared to traditional models.
🛡️
Hygienic Design
Stainless steel SUS304/316 construction with high-temperature sterilization meeting HACCP standards.

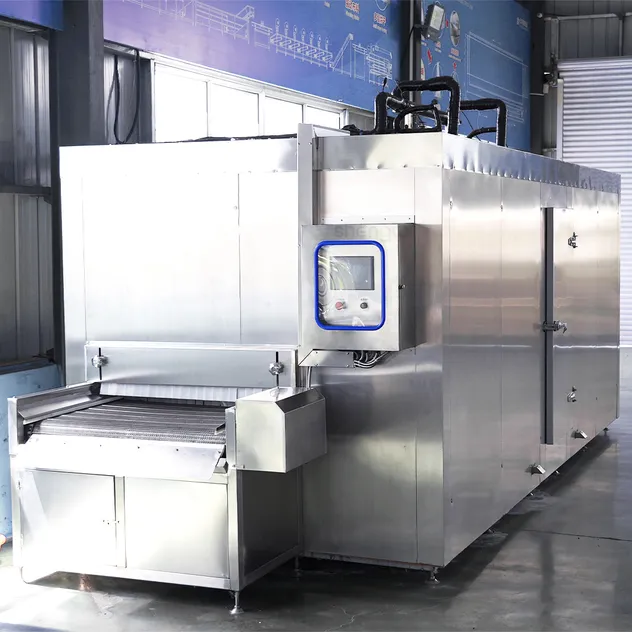

Detail 1

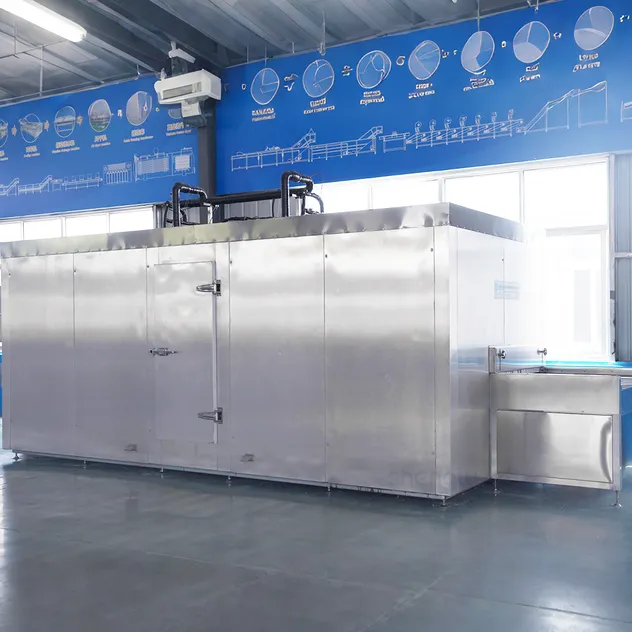

Detail 2
Detail 3

Sanitary & Safety Design

1. Material Specifications: Food contact parts are made of SUS304 or SUS316. Seals and belts are food-grade and oil-resistant.
2. Structural Design: Rounded transitions with minimal dead corners for easy cleaning. Detachable parts for maintenance.
3. Safety: Equipped with emergency stop buttons, safety switches, and IP54/IP65 electrical protection.
Application Range

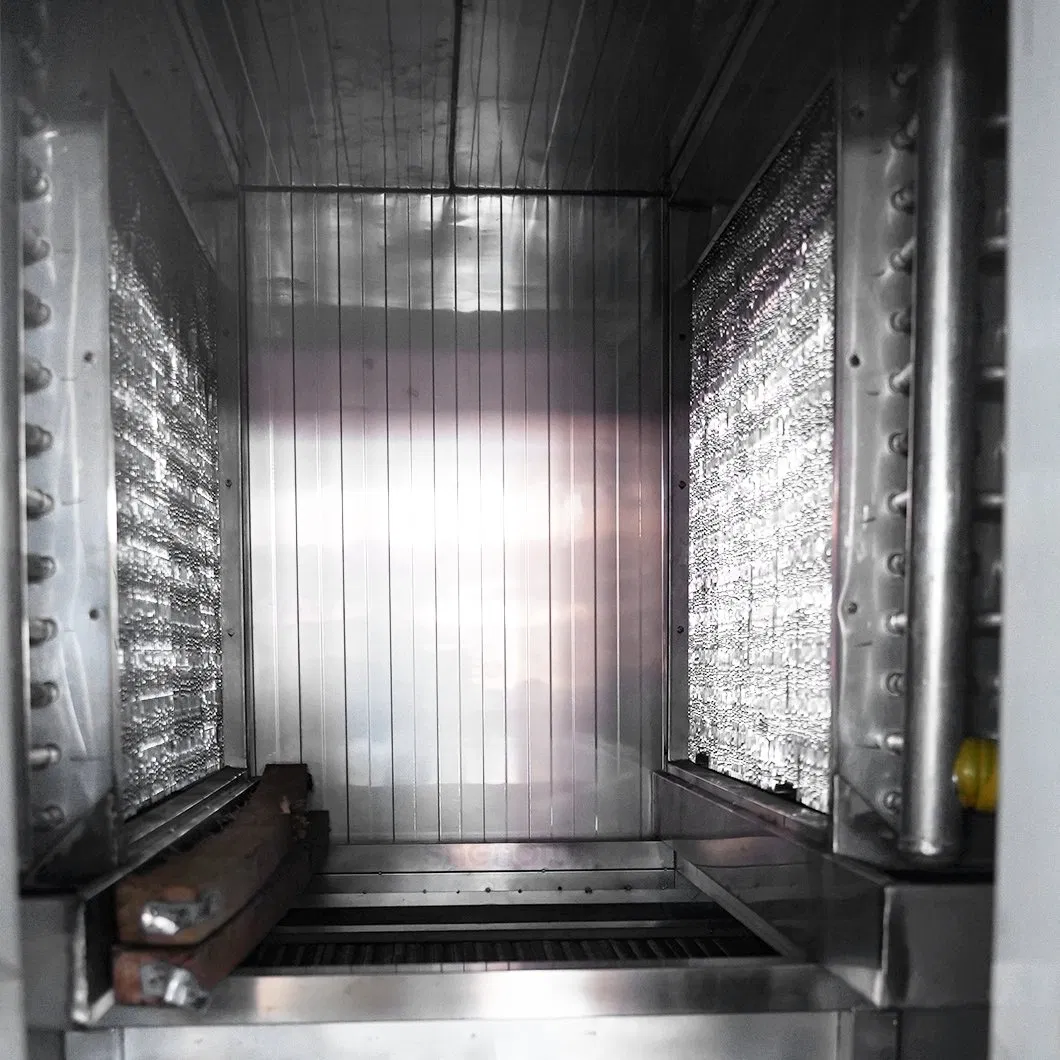

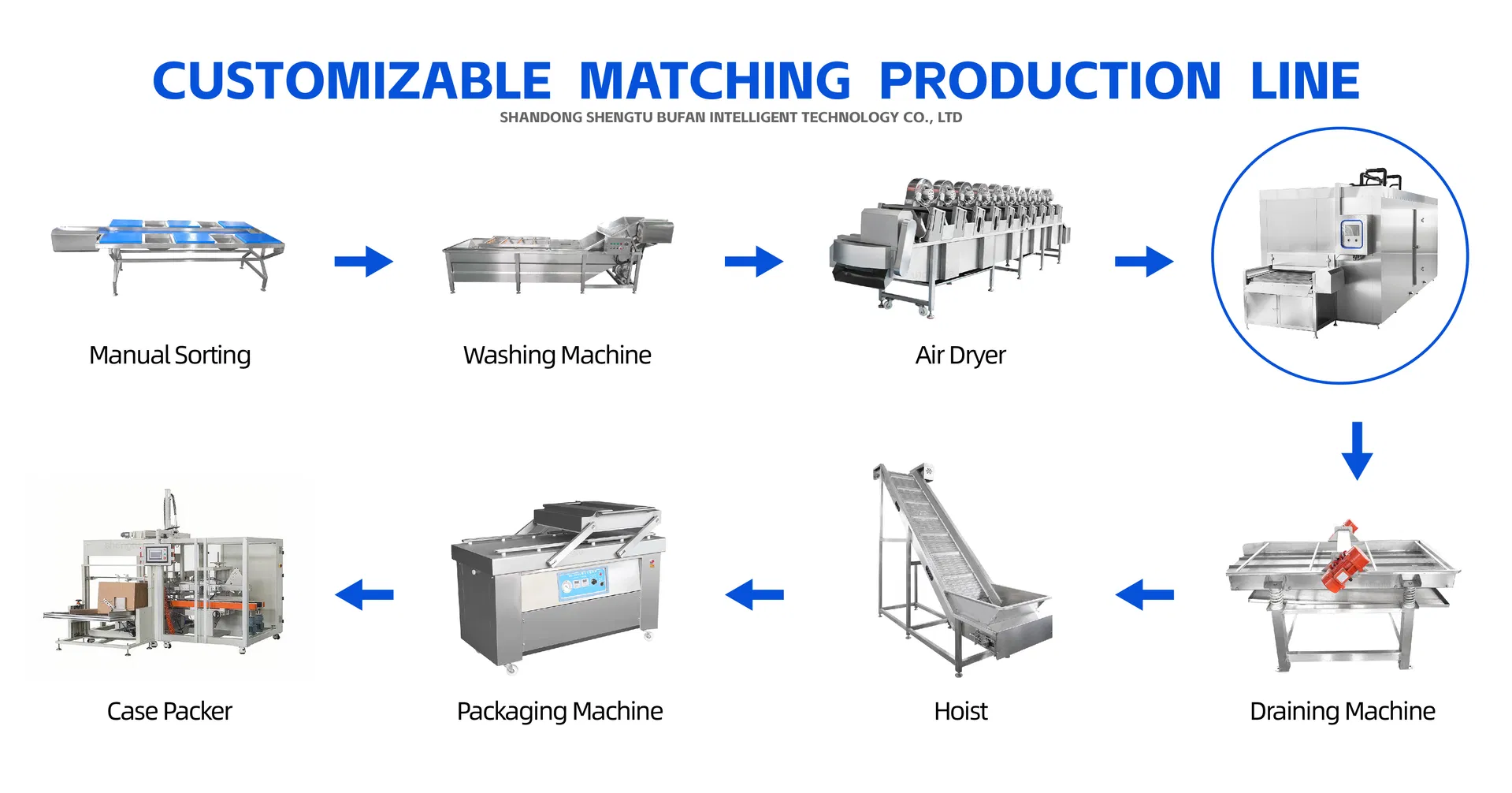

Machine Internal

Intelligent Cloud Management

🚀 Remote Control: Securely perform remote debugging and PLC program updates.

📊 Real-time Data: Critical parameters visible via Web or APP.

⚠️ Instant Alerts: Failures trigger WhatsApp, SMS, and voice calls immediately.

📈 Actionable Insights: Historical data records support performance optimization.

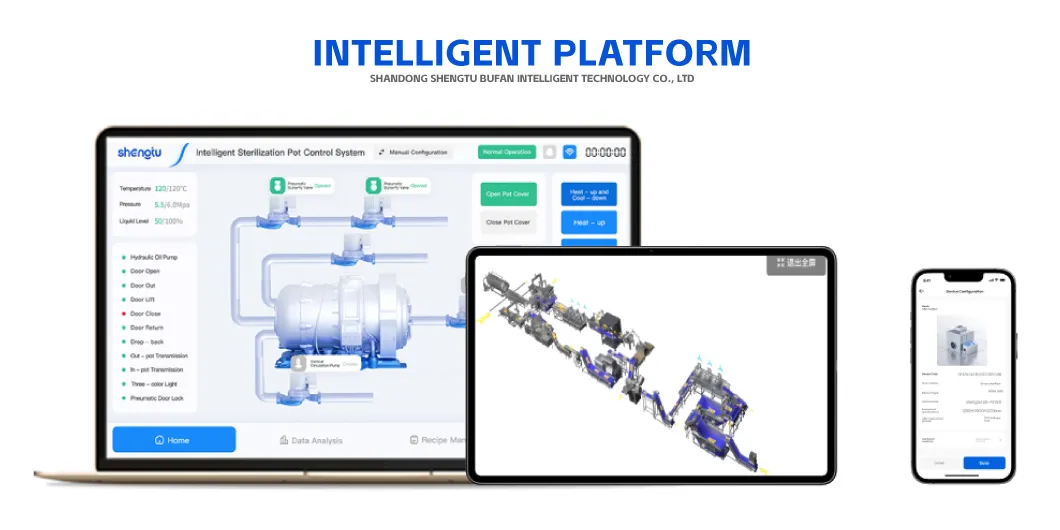

Cloud Platform

Cooperation & Certifications

Cooperation Case
Certifications

Frequently Asked Questions

Q1: What support does the after-sales service include?
We provide 24/7 remote technical support via instant video, worldwide local service outlets, and a production stoppage guarantee where backup machines may be supported after 3 days of downtime.
Q2: How is the equipment delivered and installed?
We offer end-to-end delivery including technical drawing confirmation, weekly production updates, online Factory Acceptance Tests (FAT), and high-definition guidance videos for installation.
Q3: How do you simplify cleaning and maintenance?
Our hygienic design features zero dead zones, SUS304 stainless steel surfaces, and optional One-button CIP (Clean-in-Place) systems to reduce manual labor.
Q4: What is the typical production capacity?
The system is highly flexible and can be customized to handle production capacities ranging from 100kg/h to 2000kg/h depending on your specific requirements.
Q5: Is the equipment compliant with international food safety standards?
Yes, our machines are built to meet HACCP food safety requirements and are CE certified, using food-grade materials like SUS304 and SUS316.
Q6: What is the standard lead time for a custom freezer?
The standard delivery time is generally between 45 to 60 days, depending on the level of customization and specific project requirements.
