Technical Specifications - Basic Info
Automation
Full Automation
Ice Temperature
-5℃ ~ -10℃
Application
Concrete Cooling & Food Processing
Ice Capacity
30 Tons / 24h
Dimensions
5600*2130*2555mm

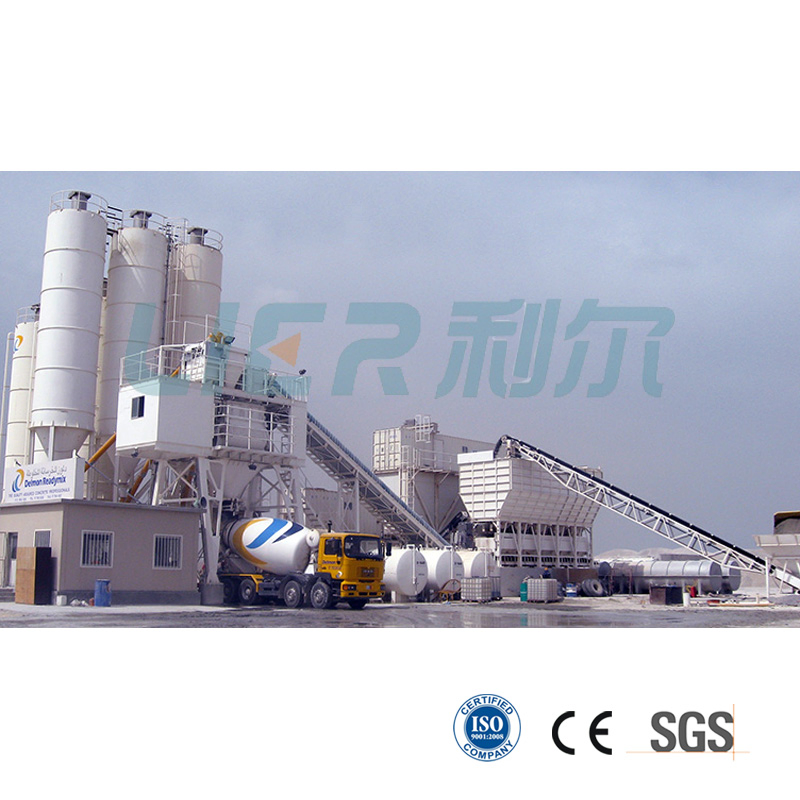

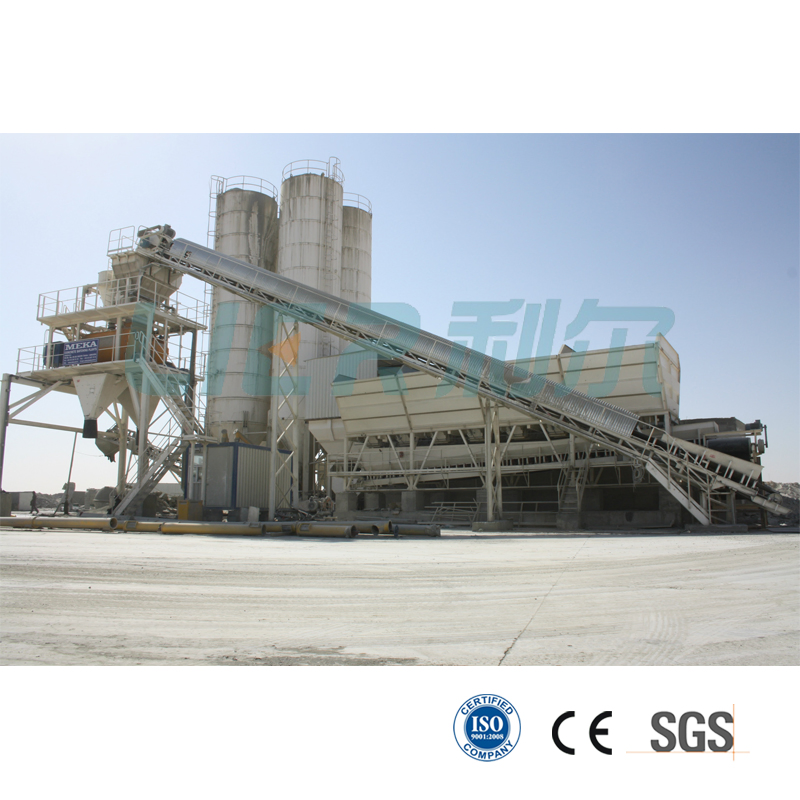

Automatic Concrete Cooling Ice System
❄️

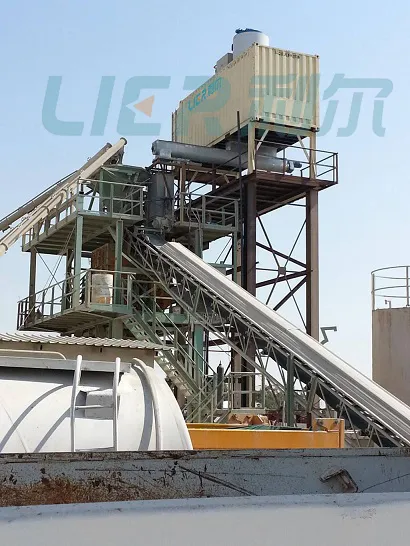

System Overview: The ice rake system is primarily installed in storage containers for flake ice. Since flake ice consists of dry, small pieces, it can easily pile up and block sensors. An automatic rake system is essential for maintaining continuous operation and ensuring level distribution.
Sensors continuously detect ice levels and command the rake structure to move horizontally, leveling the ice flakes. Once the ice is flat, the system enters a dormant state until more ice is detected. The container includes a cooling fan system to maintain temperatures between 5ºC and 8ºC, ensuring the flakes remain dry and free-flowing for easy transport.
Key Features & Engineering
Diamond Grade Ice Quality: Our evaporators use advanced processing technology and pressure vessels with ASME authentication. All parts in contact with ice are sanitary and food-grade.
Intelligent Control: Equipped with PLC full-automatic electric boxes using international components from brands like Schneider and Siemens. The HCI (Human-Computer Interaction) system allows for remote monitoring and complete self-protection functions.
🛡️
Stability & Reliability: Utilizing Germany Bitzer, Italy Refcomp, or Taiwan Hanbell compressors with R404A refrigerant and Danfoss expansion valves for superb stability and a long service life.
Technical Data Sheet
| Model |
Daily Output (kg/24h) |
Ref. Capacity (kw) |
Power Supply |
Total Power (kw) |
Refrigerant |
Dimensions (L*W*H mm) |
Weight (kg) |
| LR-05T | 500 | 3 | 3P/380V/50HZ | 2.62 | R404A | 1310*890*780 | 195 |
| LR-1T | 1000 | 6 | 3P/380V/50HZ | 4.31 | R404A | 1310*970*880 | 227 |
| LR-5T | 5000 | 30 | 3P/380V/50HZ | 23.12 | R404A | 1750*1550*1600 | 765 |
| LR-10T | 10000 | 65 | 3P/380V/50HZ | 45.5 | R404A | 2530*1830*1680 | 1540 |
| LR-20T | 20000 | 130 | 3P/380V/50HZ | 75.8 | R22 | 3695*2090*2050 | 2860 |
| LR-30T | 30000 | 210 | 3P/380V/50HZ | 86 | R22 | 3880*21200*2400 | 3240 |
Comprehensive Service Support
📋
Pre-Sale Service
24/7 support, customized OEM/ODM options, and professional R&D project suitable schemes.
🚚
Sale Service
Strict adherence to delivery dates and comprehensive cargo management until destination arrival.
🛠️
Technical Support
Installation guidance, debugging support, and spare parts availability at any time.
Frequently Asked Questions
What is the main application for the 30-ton ice system?
It is primarily used for large-scale concrete cooling in construction projects and industrial food processing where high volumes of flake ice are required.
Why is an automatic ice rake necessary?
Flake ice tends to pile up in a "mountain" shape, which can block sensors and stop production. The rake levels the ice automatically to ensure maximum storage capacity and continuous operation.
What temperature is the ice produced at?
The ice flakes are produced at a low temperature of -5℃ to -10℃, making them dry and highly effective for rapid cooling.
Are the materials used in the machine safe for food?
Yes, all inner parts, lubricating oil, and the SS314/SS304 evaporators are food-grade and sanitary.
Can the system be monitored remotely?
Yes, the HCI control system supports remote monitoring of working status and equipment control via computer.
Does the system support non-standard customization?
Yes, we provide R&D support to develop bespoke ice-making and delivery solutions if standard models do not satisfy your specific requirements.
