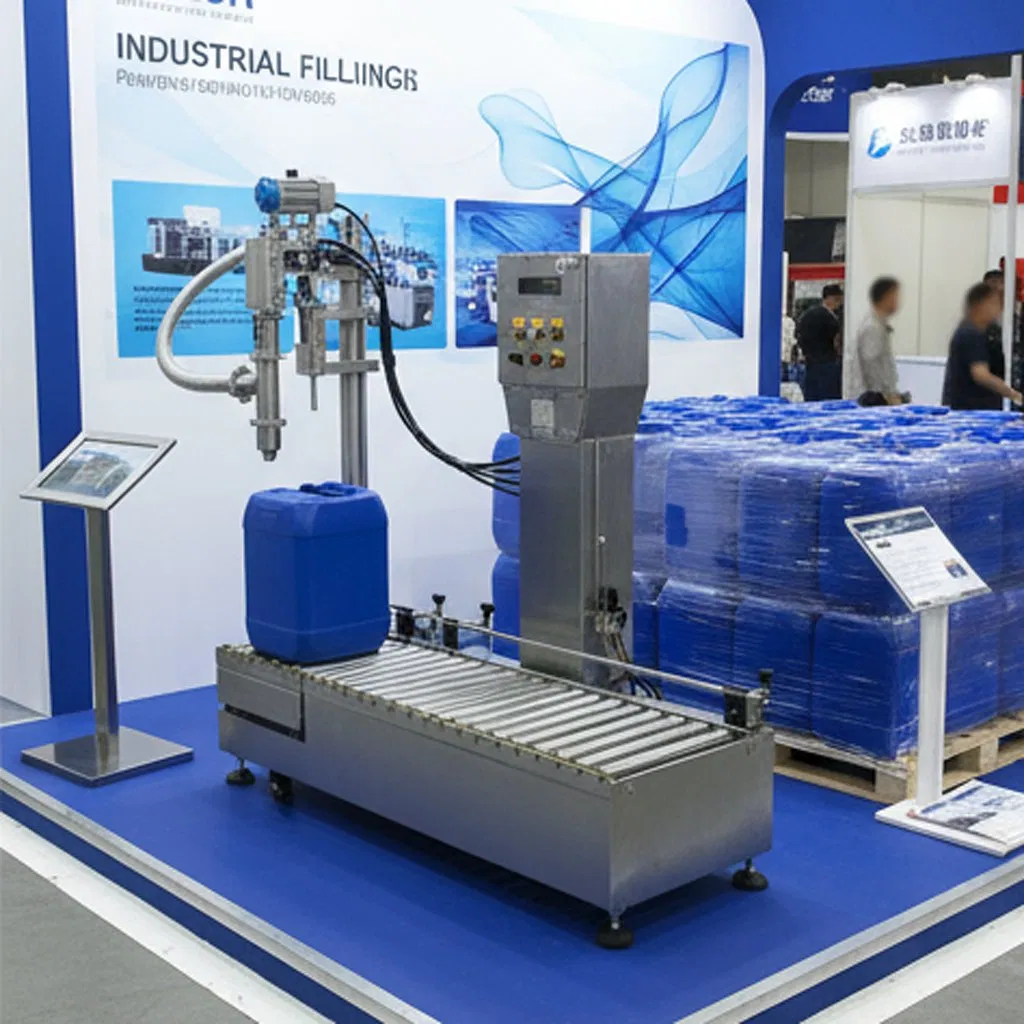

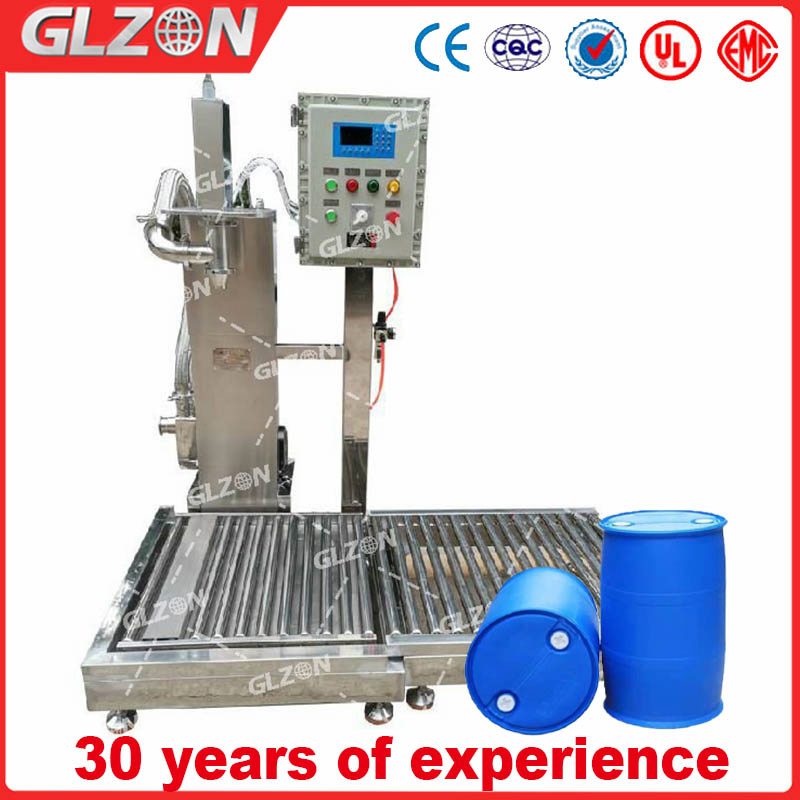

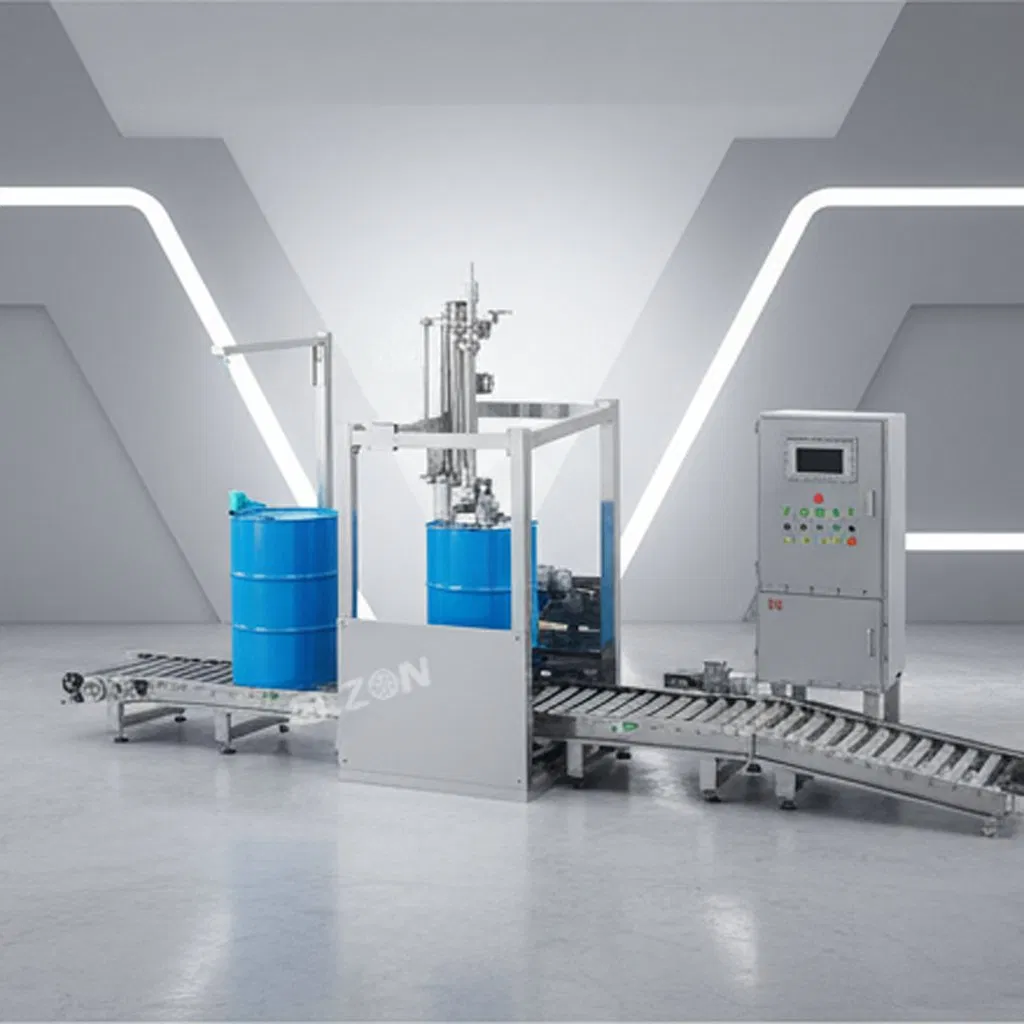

Automatic Drum Filler Systems for Efficient Liquid Dispensing and Packaging

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Basic Information

Model NO.	GZM-200
Type	Weighing-type Filling Machine
Automatic Grade	Automatic
Material Type	Liquid
Filling Valve Head	Single-Head
Feed Cylinder Structure	Single-Room Feeding
Dosing Device	Drum Barrel
Filling Principle	Pressure
Packaging Container Lifting	Pneumatic Lifting
Structure	Linear
Packaging Material	Wood / Barrel
Application	Food, Beverages, Daily Necessities, Chemicals
Filling Accuracy	0.2%
Specification	751020302100mm

Product Parameters

Filling Capacity	300kg/barrel
Rated Speed	30-120 barrels (200L)/hr
Weighing Device	Maximum 300kg, d: 50g
Temperature Range	-10°C ~ +45°C
Power Supply	220V, 50HZ, 1.0kw
Working Air Source	0.5MPa±0.1MPa
Material Inlet Pressure	0.2~0.6 MPa
Filling Speed	150-300 barrels/hour
Filling Range	5-30kg

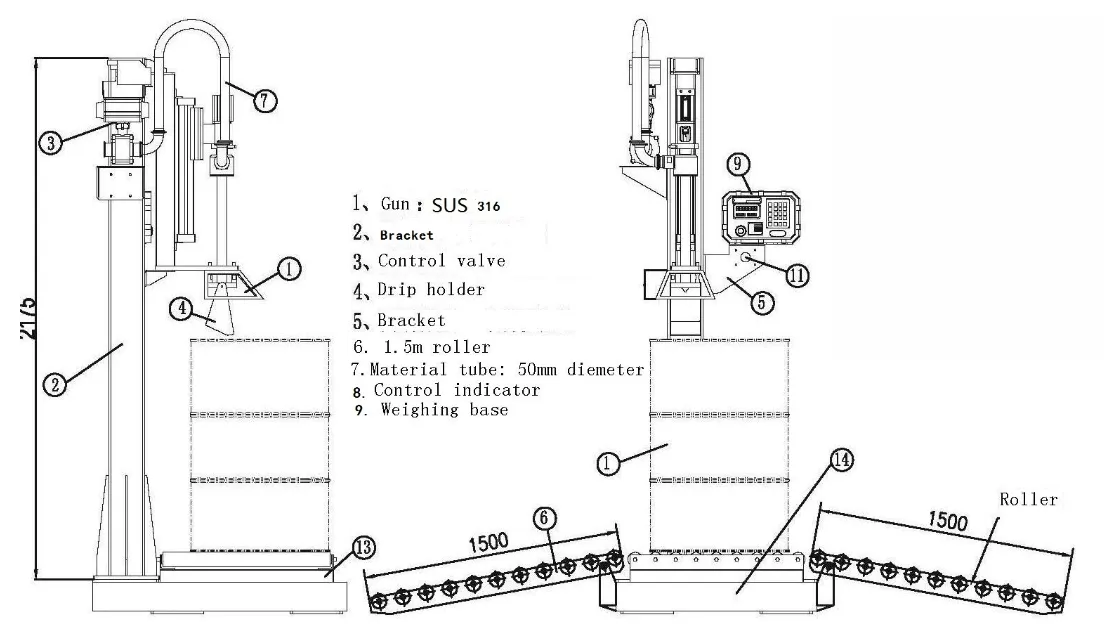

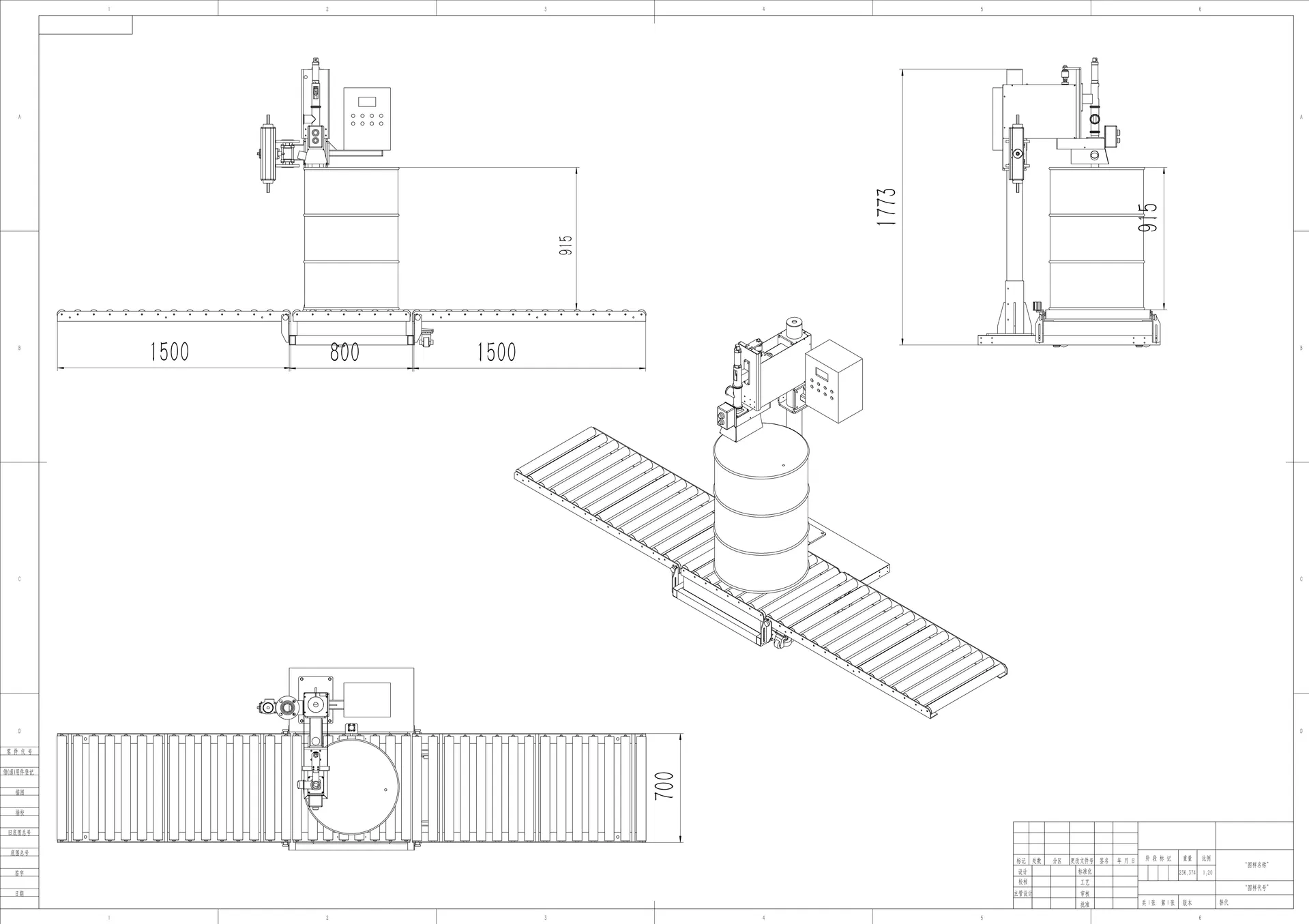

Design & Dimensions

Detailed CAD drawings and dimensional diagrams are available for engineering review. Our team provides tailored designs to meet specific project requirements.

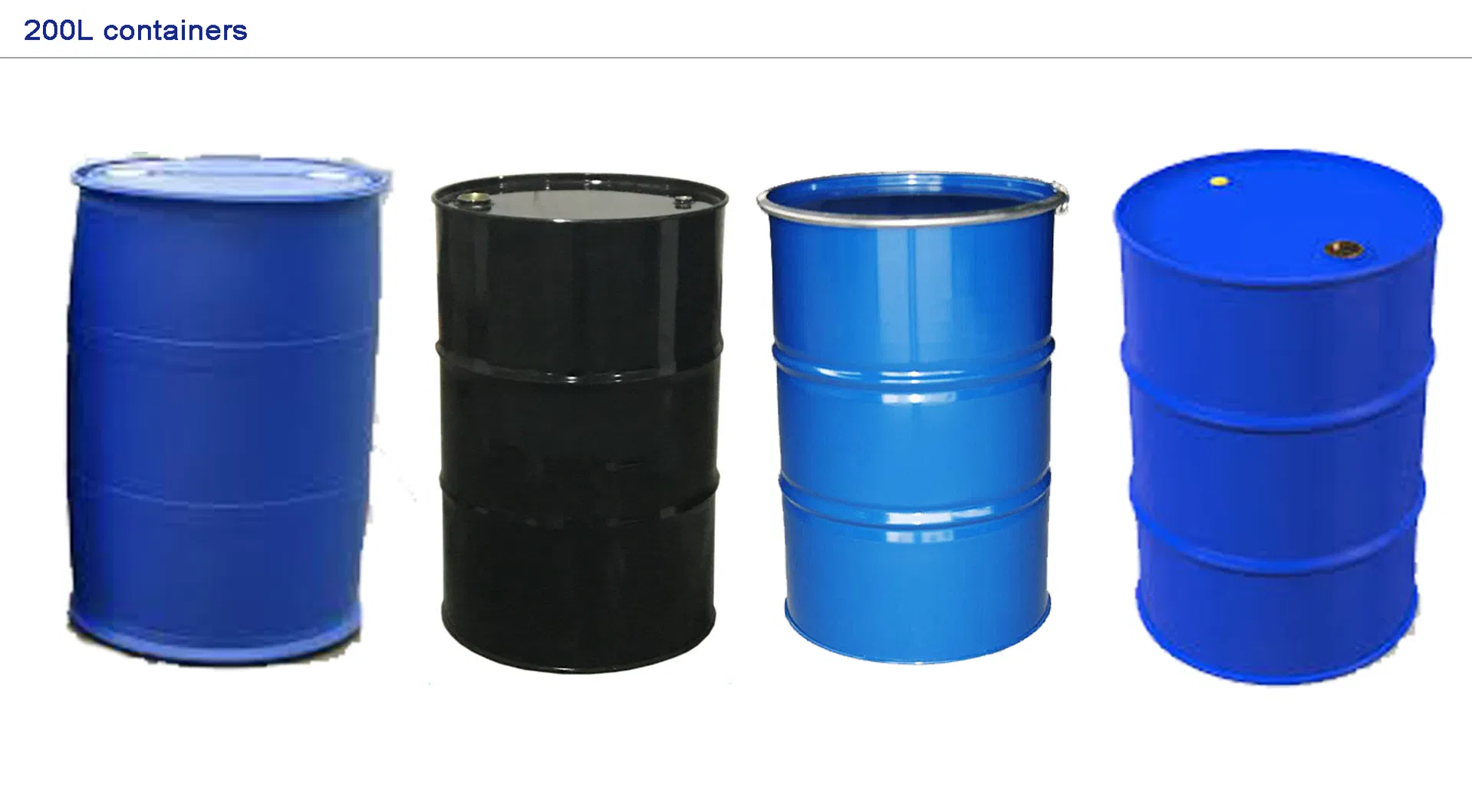

Applicable Barrel Types

Product Advantages & Features

Core Advantages

Cost-Effective: Ideal for SMEs and batch production.
High-Precision: ±0.1~0.3% accuracy minimizes waste.
Bottom Filling: Reduces foam and splashing for volatile liquids.
Safety: Explosion-proof options (ATEX/IECEx) for solvents.
Compact Design: Space-saving layout for small workshops.

Key Features

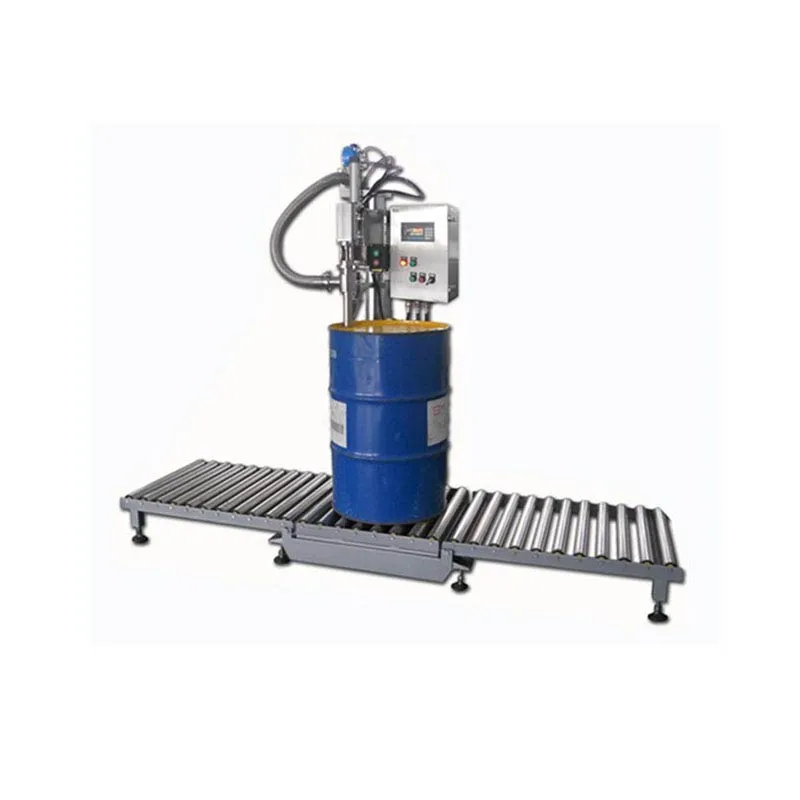

Material: 316L/304 stainless steel contact parts.
Control: PLC + 7-inch Touchscreen HMI.
Programs: 10+ preset recipe storage.
Protection: Drip tray with drainage and dual-circuit emergency stop.

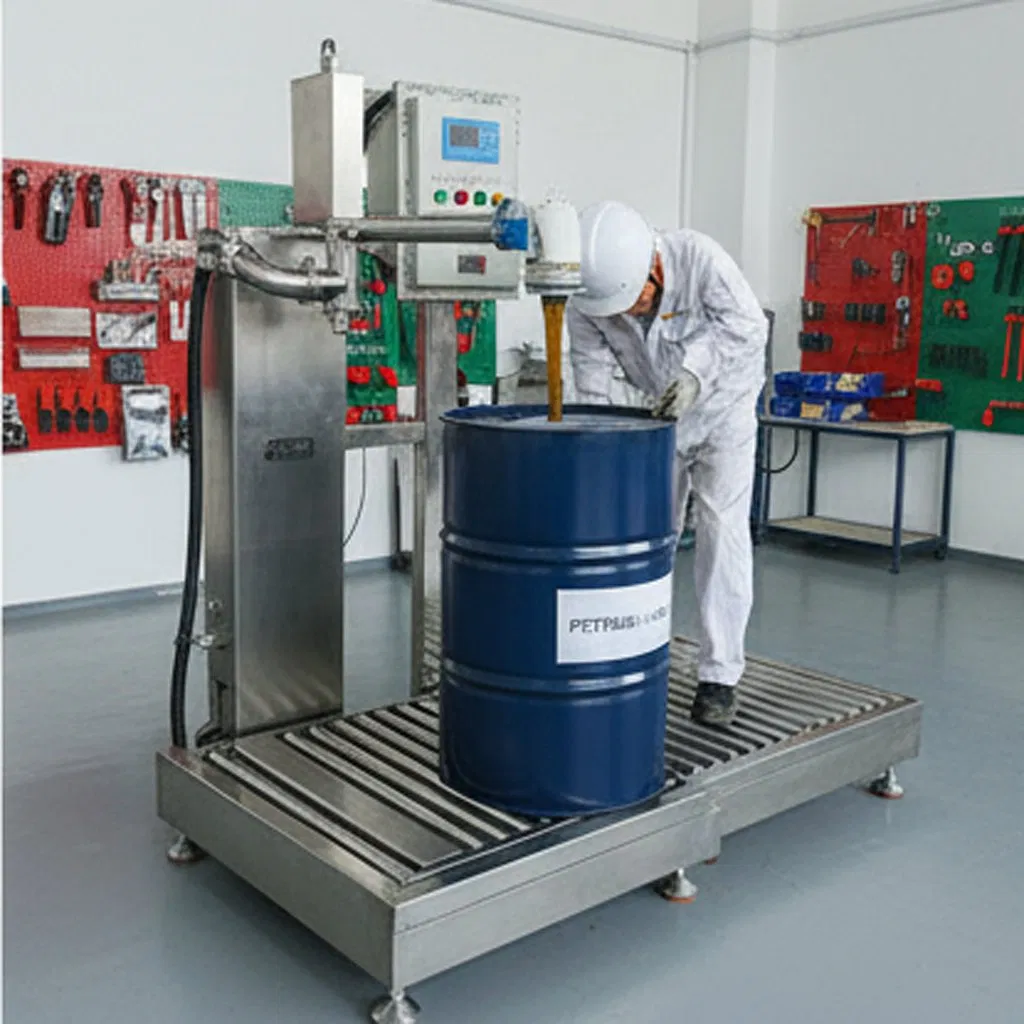

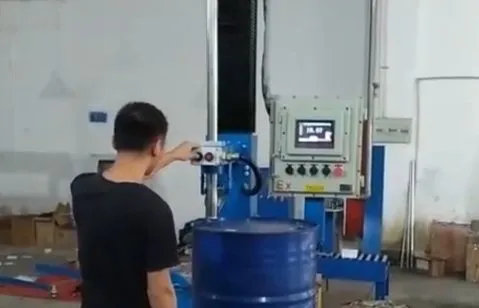

Operation Process

1

Manually place bucket on weighing platform; system detects position.

2

Automatic nozzle insertion and tare (peeling); valve opens to start filling.

3

Four-stage filling (large, medium, small, trace) until target value is reached.

4

Nozzle rises and closes; manual move to lid lock area.

5

Pneumatic lid locking and manual palletizing.

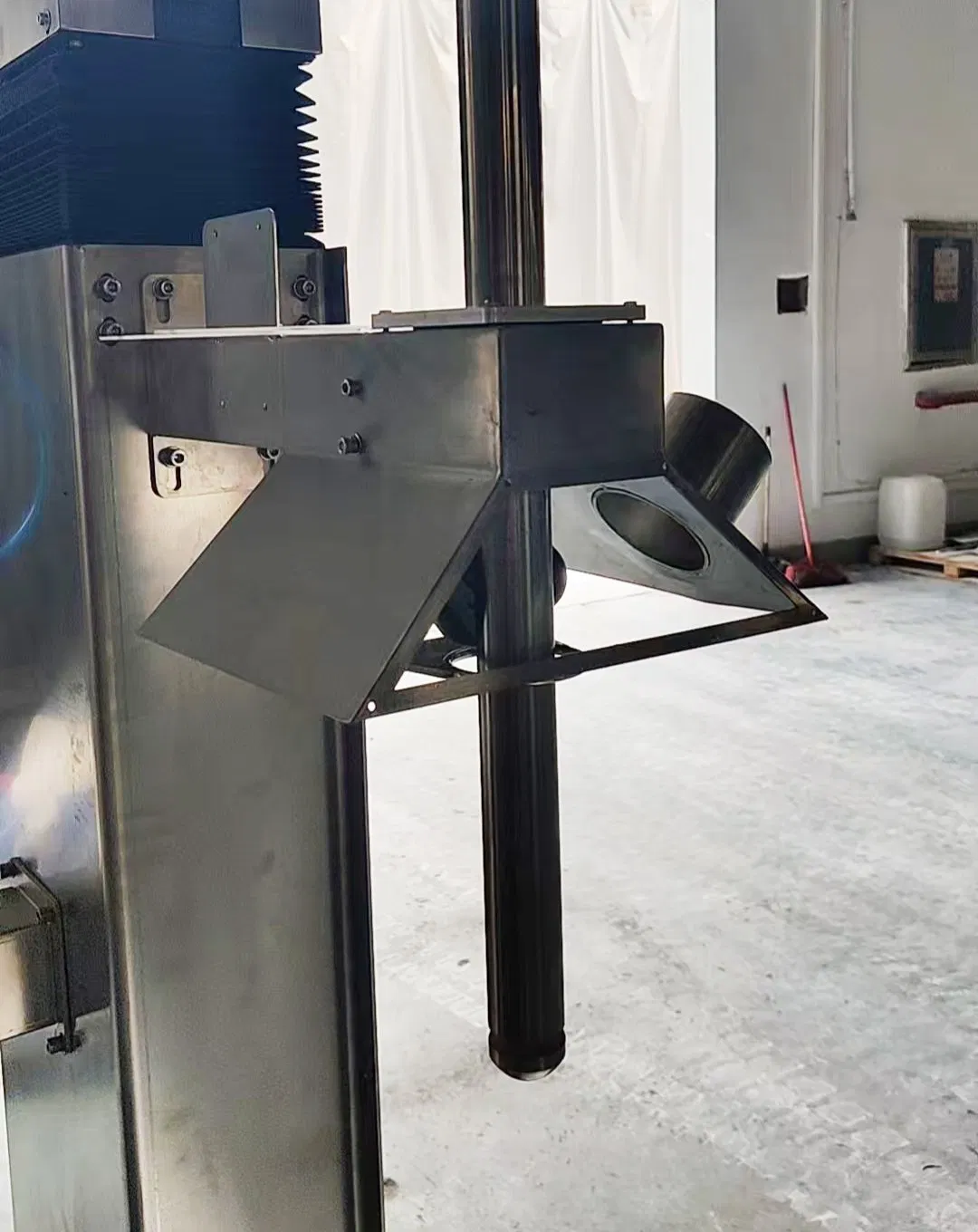

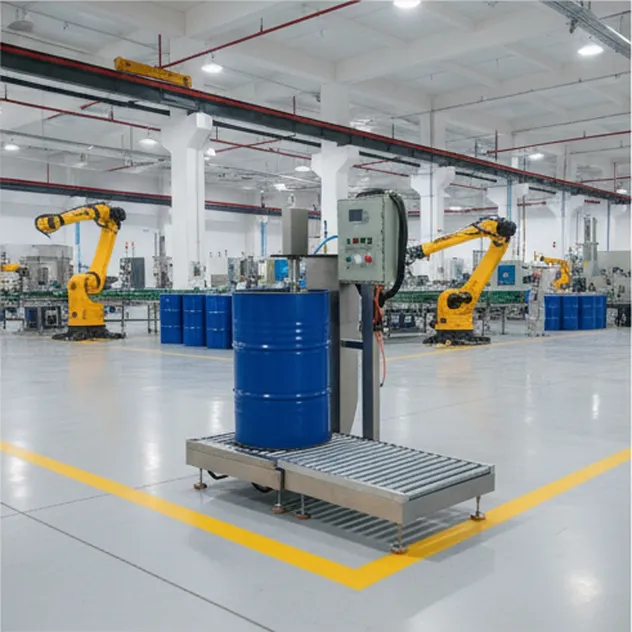

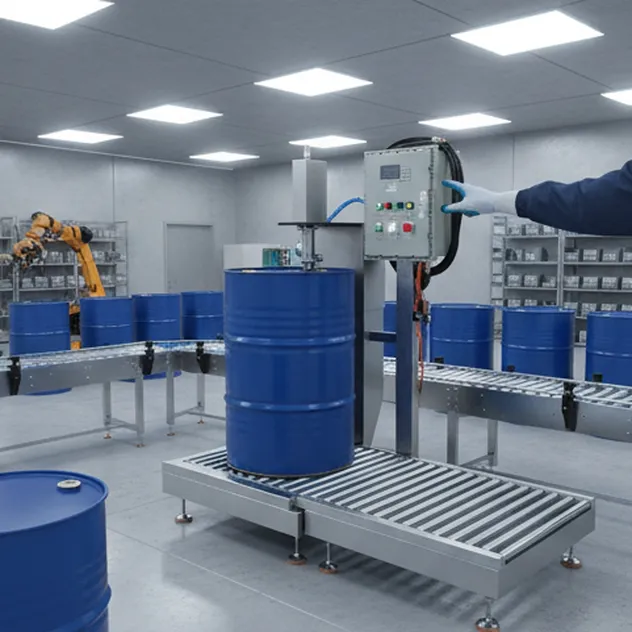

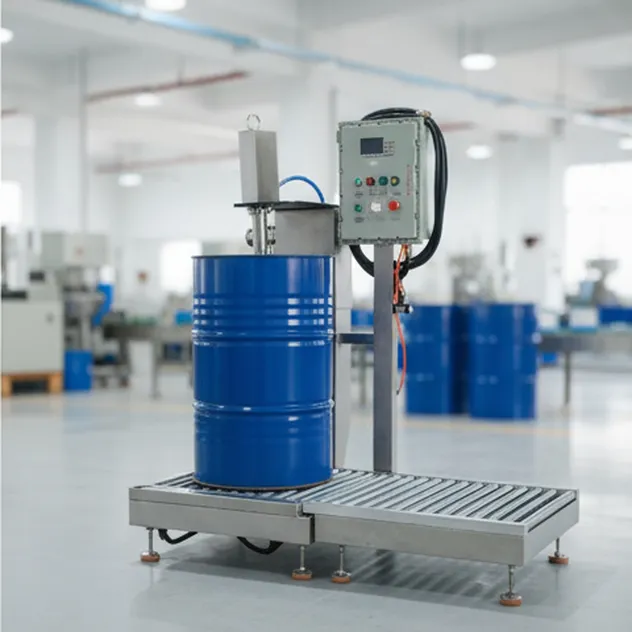

Detail Display

Industry Expertise

Specializing in liquid filling lines, powder packaging, and bulk bag systems for petrochemical, chemical, paints, oils, and food sectors. Our engineering focus centers on high technology development, safety, and humanized operating systems.

Frequently Asked Questions

Q: What is the typical lead time for orders? A: Standard models usually ship within 15-30 days, while customized units require 30-45 days.

Q: Do you provide after-sales service for international customers? A: Yes, we provide 24/7 technical assistance and have partnered service centers in key global regions.

Q: Can I request a customized bucket size or attachment? A: Absolutely. We offer tailored attachments and configurations to match your specific container specifications.

Q: What documents are provided for international export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (CoC).

Q: What is the warranty period for the equipment? A: The standard warranty is 12 months or 2,000 operating hours, whichever comes first.

Q: How can I place an order or get a quote? A: Contact our sales team for a formal quote, and the order can be confirmed via a Purchase Order (PO).
