CO2 Fire Fighting Extinguisher System

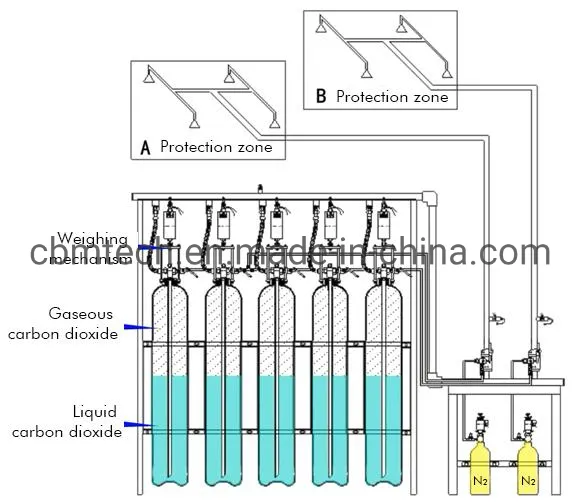

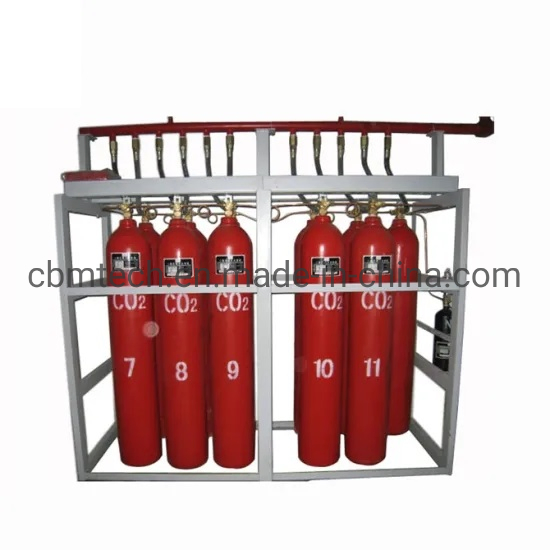

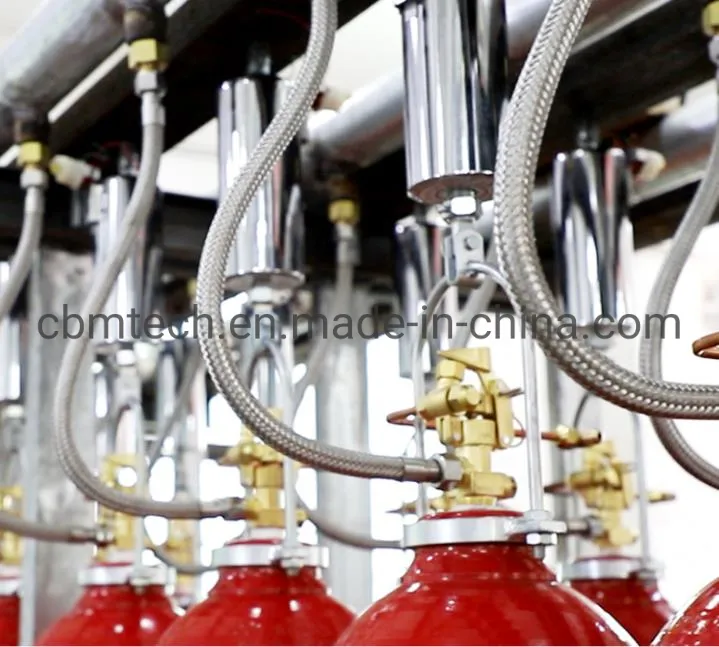

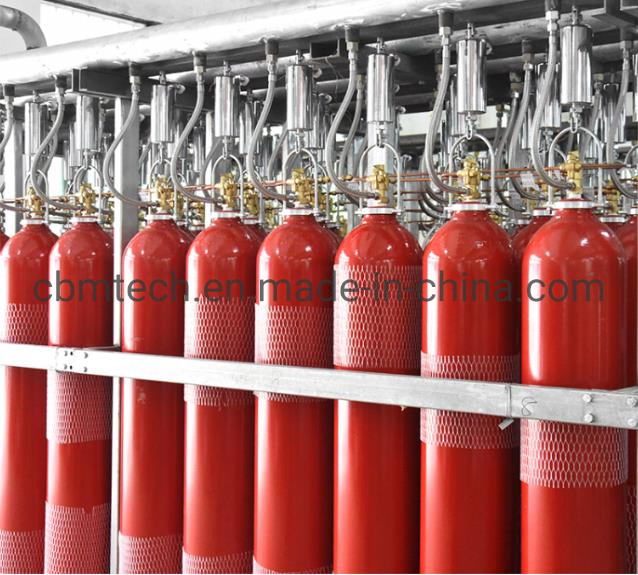

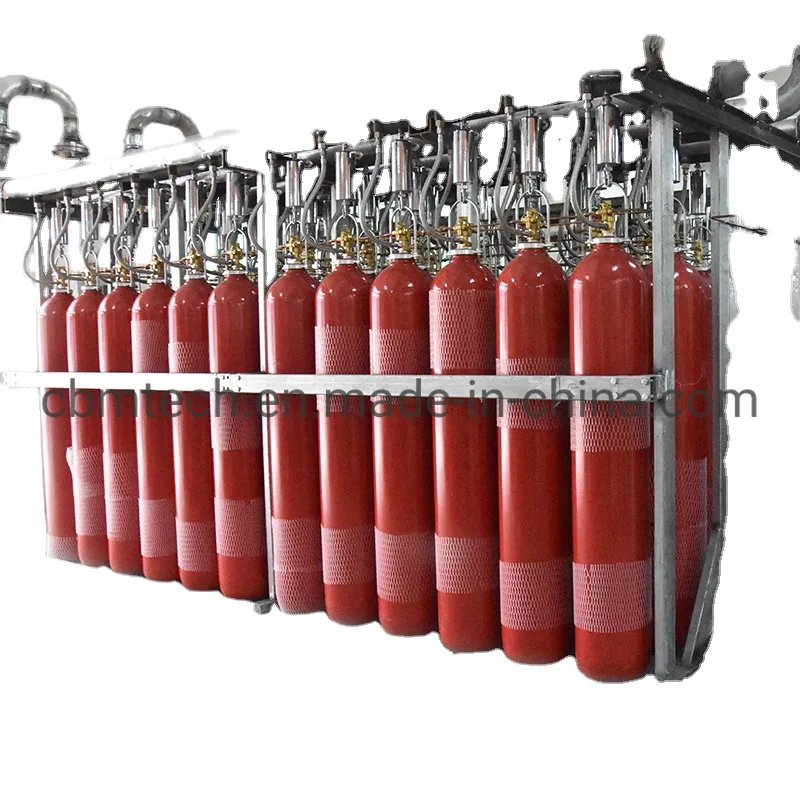

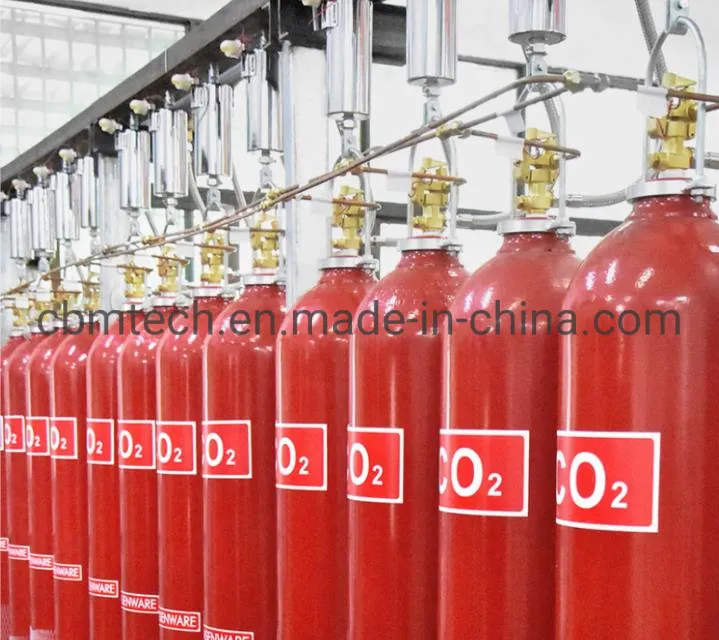

CO2 Extinguishing System automatic extinguishing system consists of bottle group bracket, storage bottle of extinguishing agent, container valve, high-pressure hose, check valve, header pipe, safety valve, distribution pipe, selector valve, pressure signal device, transmission pipeline of extinguishing agent, decompression device, nozzle, start-up, bottle, actuator, start-up pipeline and start-up gas check valve etc.

CO2 Extinguishing System automatic extinguishing system is a kind of intelligent automatic extinguishing system. In accordance with requirements for use in different places for application, the unit independent system and combined distribution system can be constituted and the way of total flooding extinguishing can be used in order to realize the extinguishing protection of single protection area and multi-protection area. This system has 3 start-up modes including automatic operation, manual operation and mechanical emergency operation.

This system is mainly applicable to fires as follows:

• Gas fire in the event that gas source can be cut off before extinguishment;
• Liquid fire or fire due to fusible solids such as paraffin and asphalt;
• Fire on solid surface and deep-seated fire of partial solids (cotton, fabric, paper);
• Electrical fire.

Typical referenced places include electronic computer rooms, data storage rooms, libraries, bank vaults, storehouses of valuables, cable tunnels, and various production environments like oil immersed transformers, printing presses, and ship cabins.

• Professional Manufacturing: Advanced equipment including Punch and CNC Machines.
• Large Capacity: Capability to produce over 50,000 units monthly.
• Quality Assurance: ISO9001:2008 and ISO 13485 management systems; 100% factory tested.
• Cost Efficiency: Scaled production offering competitive advantages.

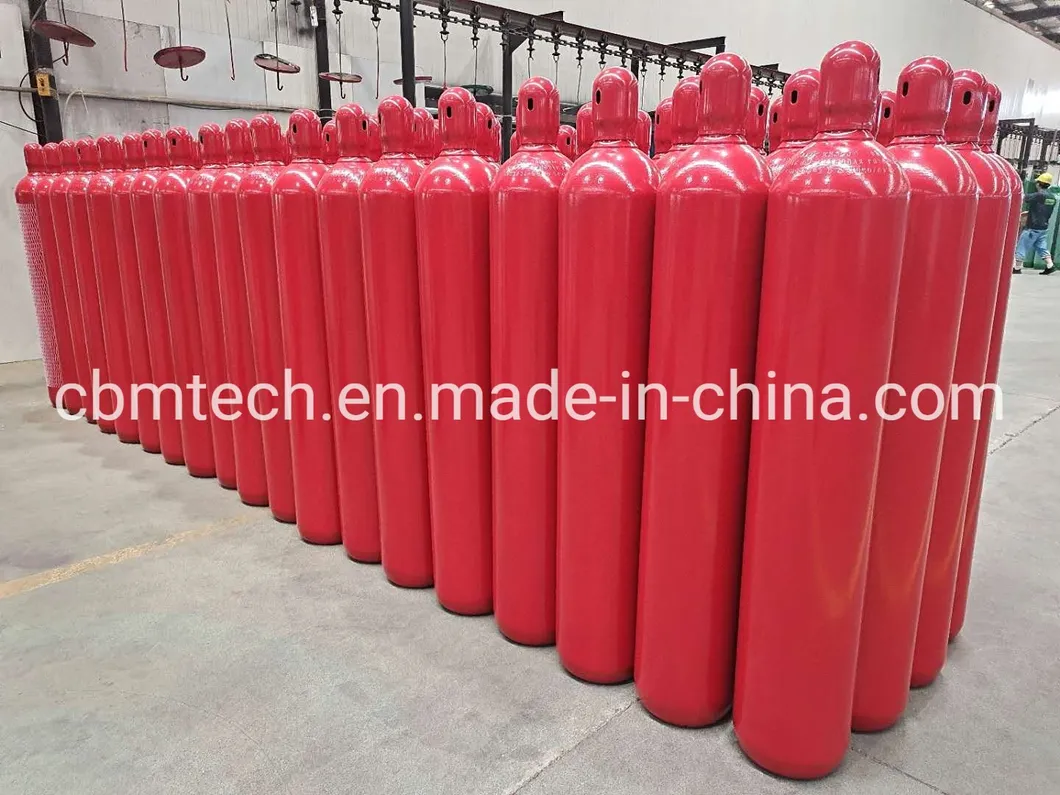

• Versatile Series: Multiple models available for different international standards.
• Fast Delivery: Efficient production cycles (3~4 weeks).
