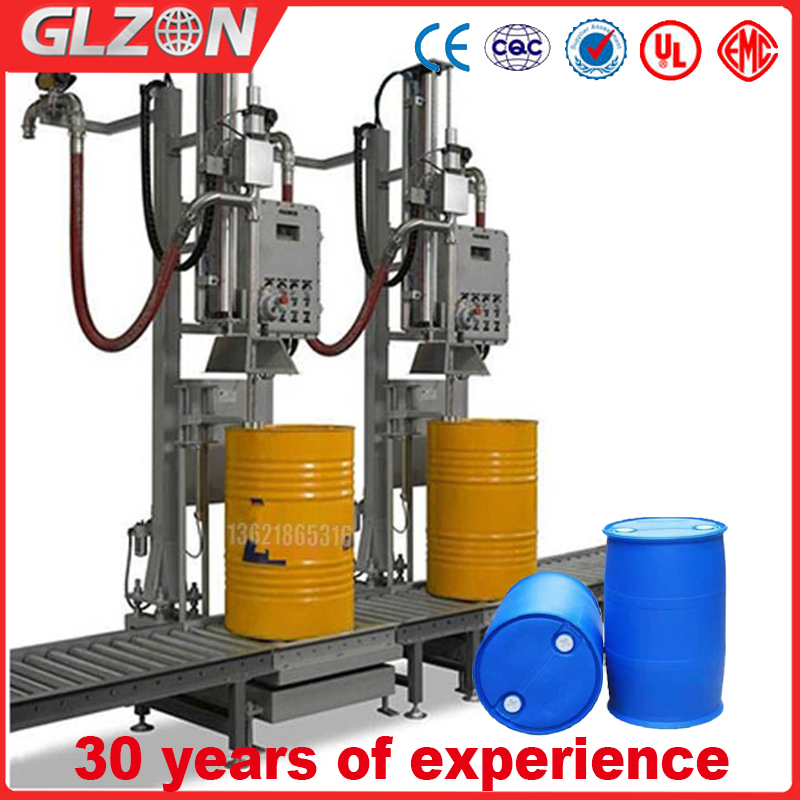

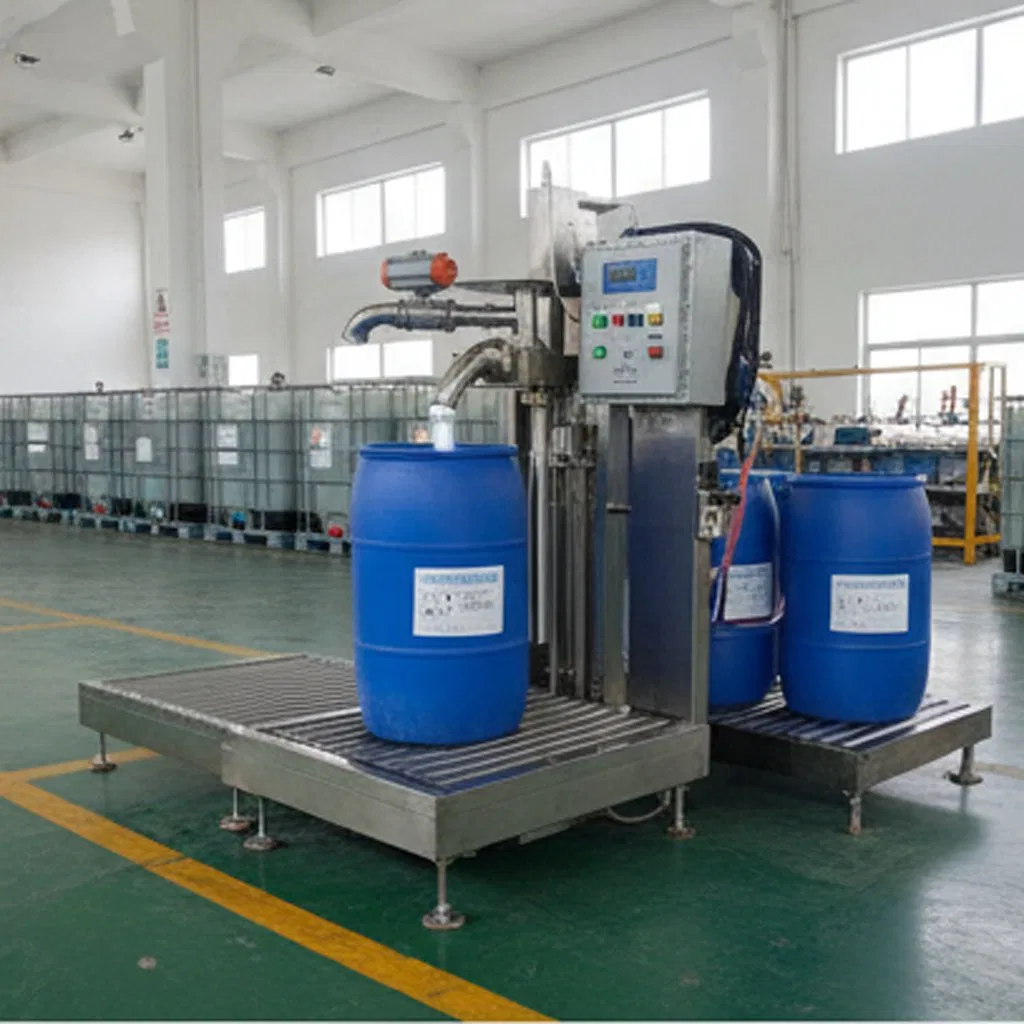

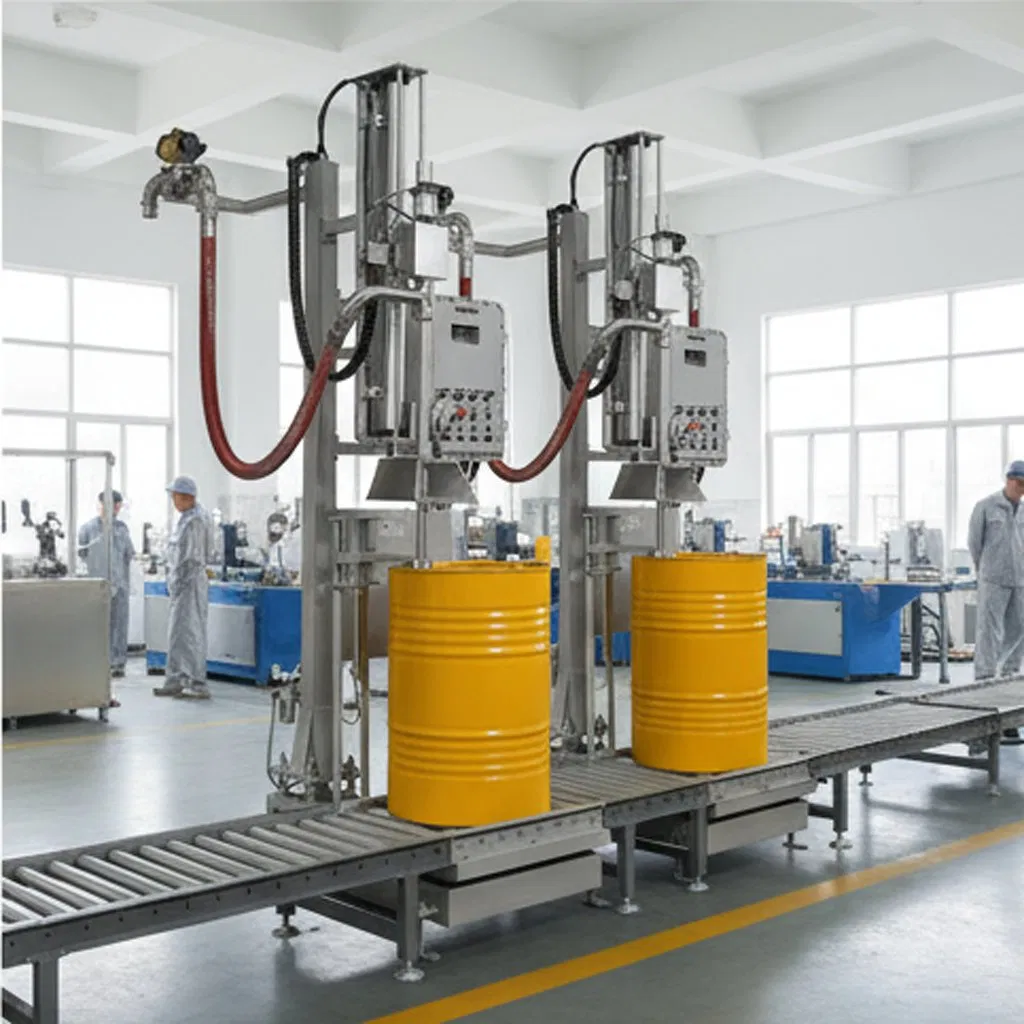

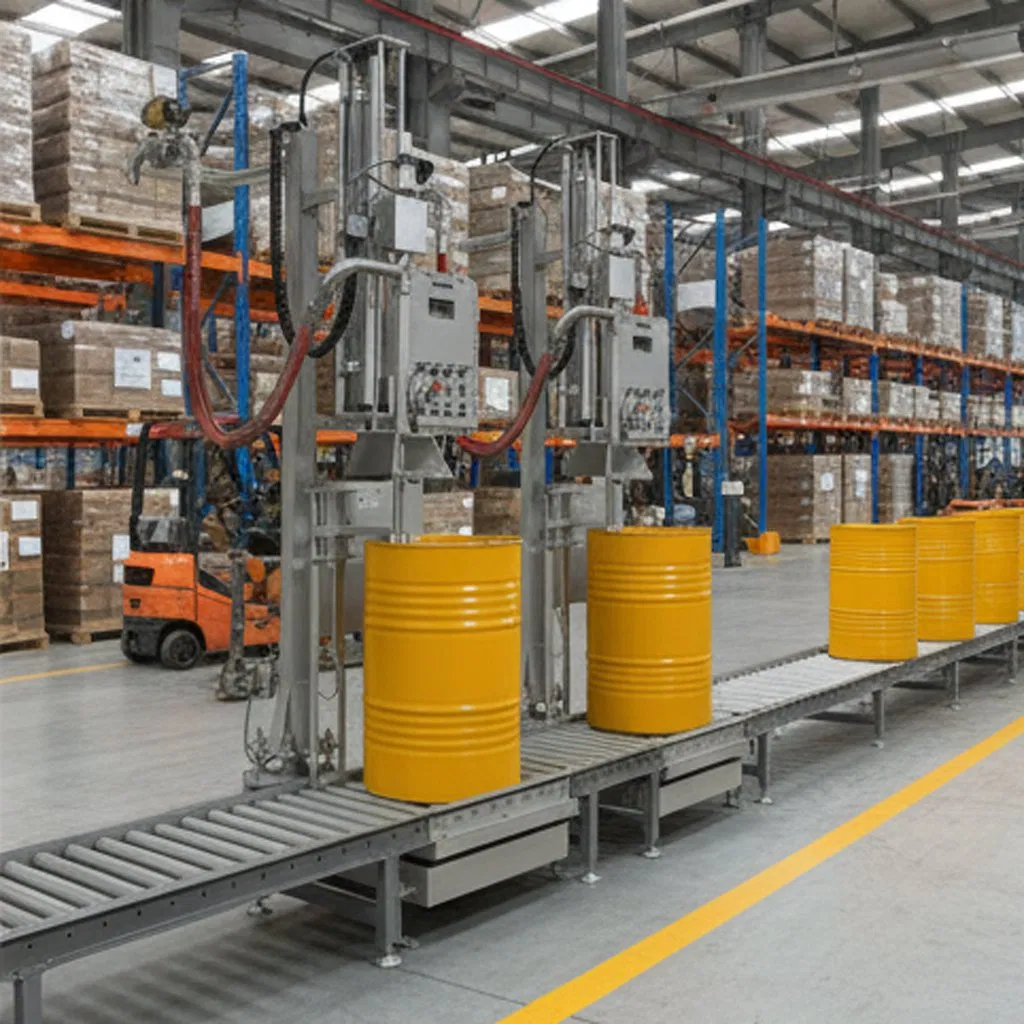

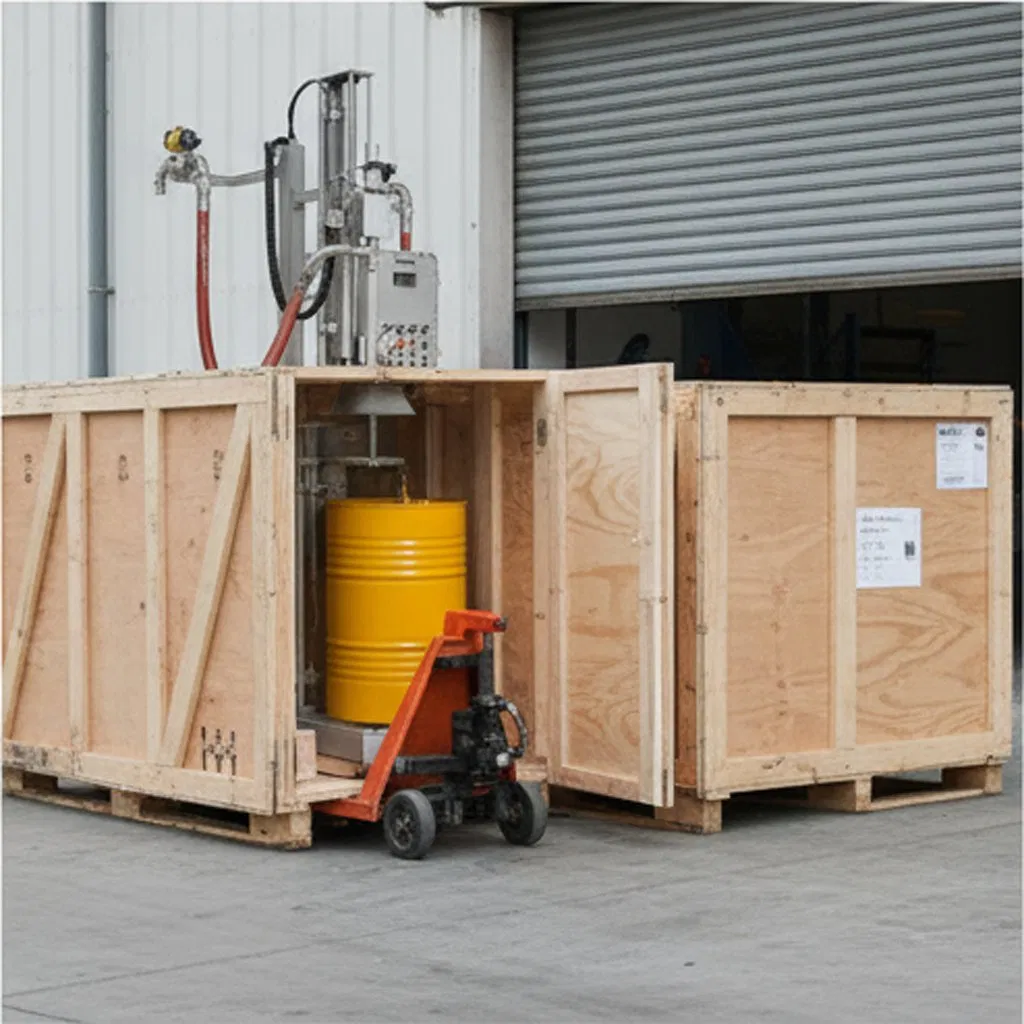

Drum Filling System for 200L Drum Efficient Packaging Solution

Customization: Available
After-sales Service: 1year
Warranty: 1year

Product Description

ℹ️
Basic Information
Model NO. GZM-200
Type Weighing-type Filling Machine
Automatic Grade Automatic
Material Type Liquid
Filling Valve Head Single-Head
Dosing Device Drum Barrel
Application Food, Beverages, Daily Necessities, Chemicals
Filling Accuracy 0.2%
Specification 7510*2030*2100mm
📊
Product Parameters
Filling capacity300kg/barrel
Rated speed30-120 barrels (200L)/hr
Weighing deviceMax 300kg, graduation d: 50g
Power supply220V, 50HZ, 1.0kw
Working air source0.5MPa±0.1MPa, 10m3/h
Filling range5-30kg

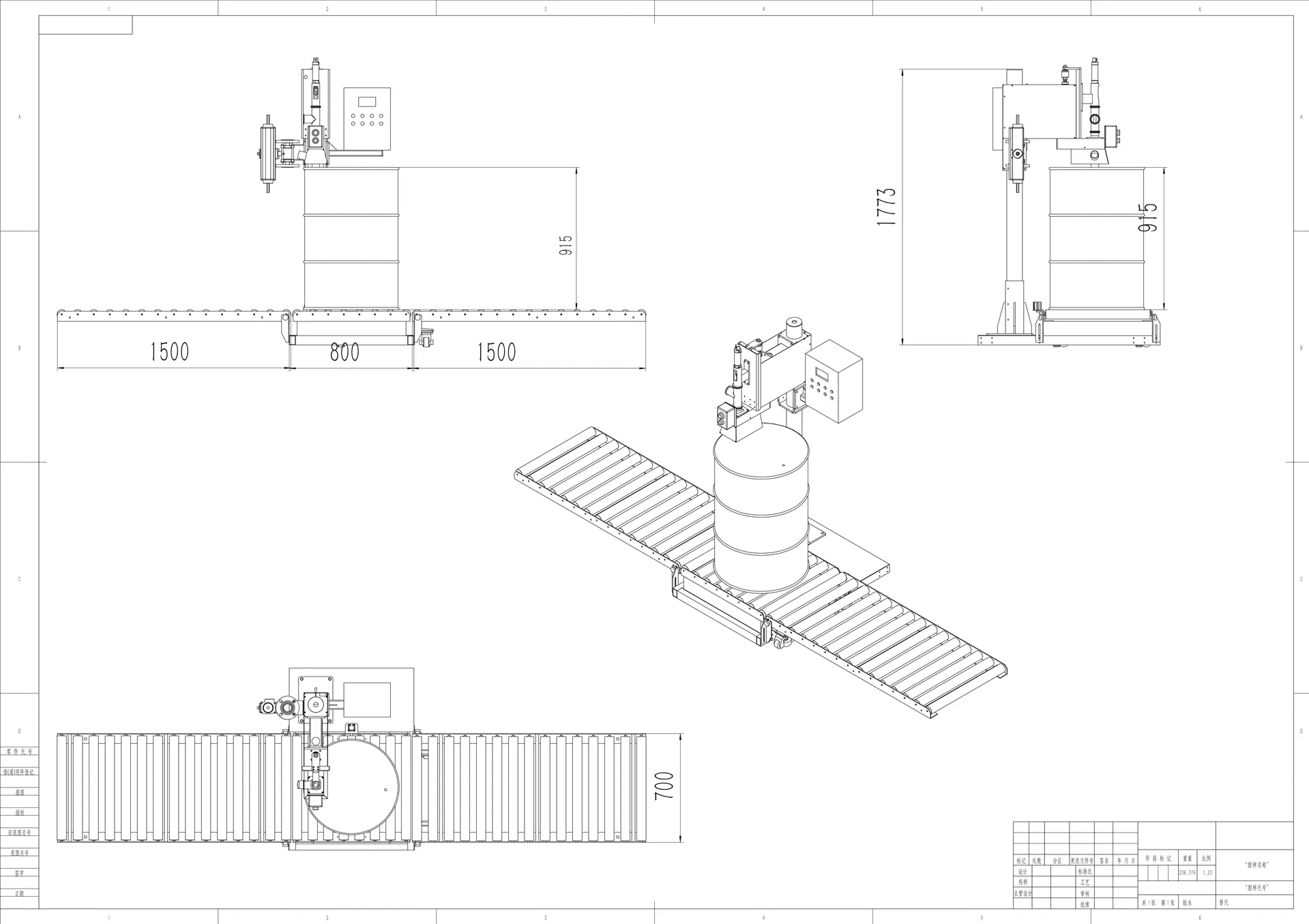

Drum Filling System Overview
📐
Drawings & Dimensions

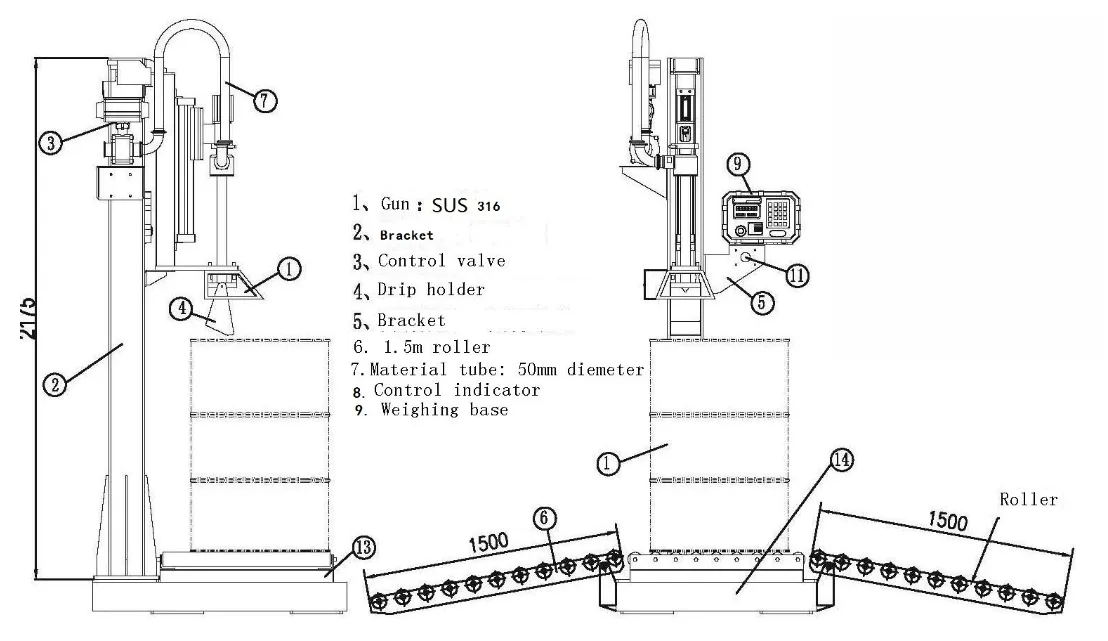

Dimensional Drawings
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
🛢️

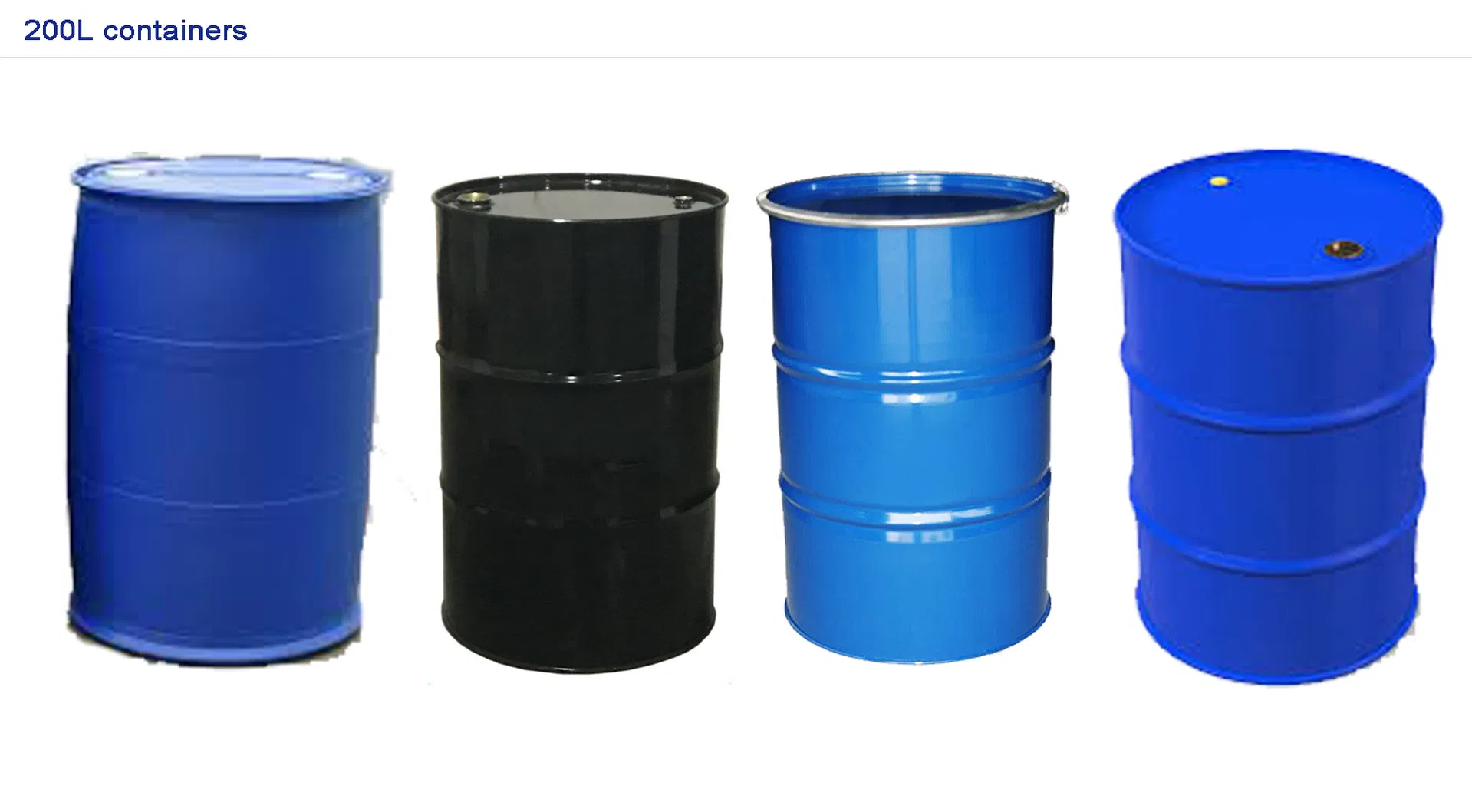

Applicable Barrel Types
Applicable Barrel Types
Product Advantages
High-Precision Filling (±0.1~0.3%)Uses mass flow meters or load cells for accuracy. Minimizes product waste.
Bottom Filling TechnologyReduces foam and splashing. Ideal for solvents and volatile or toxic liquids.
Explosion-Proof OptionsCertified (ATEX/IECEx) safe for flammable liquids like alcohols and paints.
Durable ConstructionStainless steel build. Corrosion-resistant and easy to clean for food-grade use.

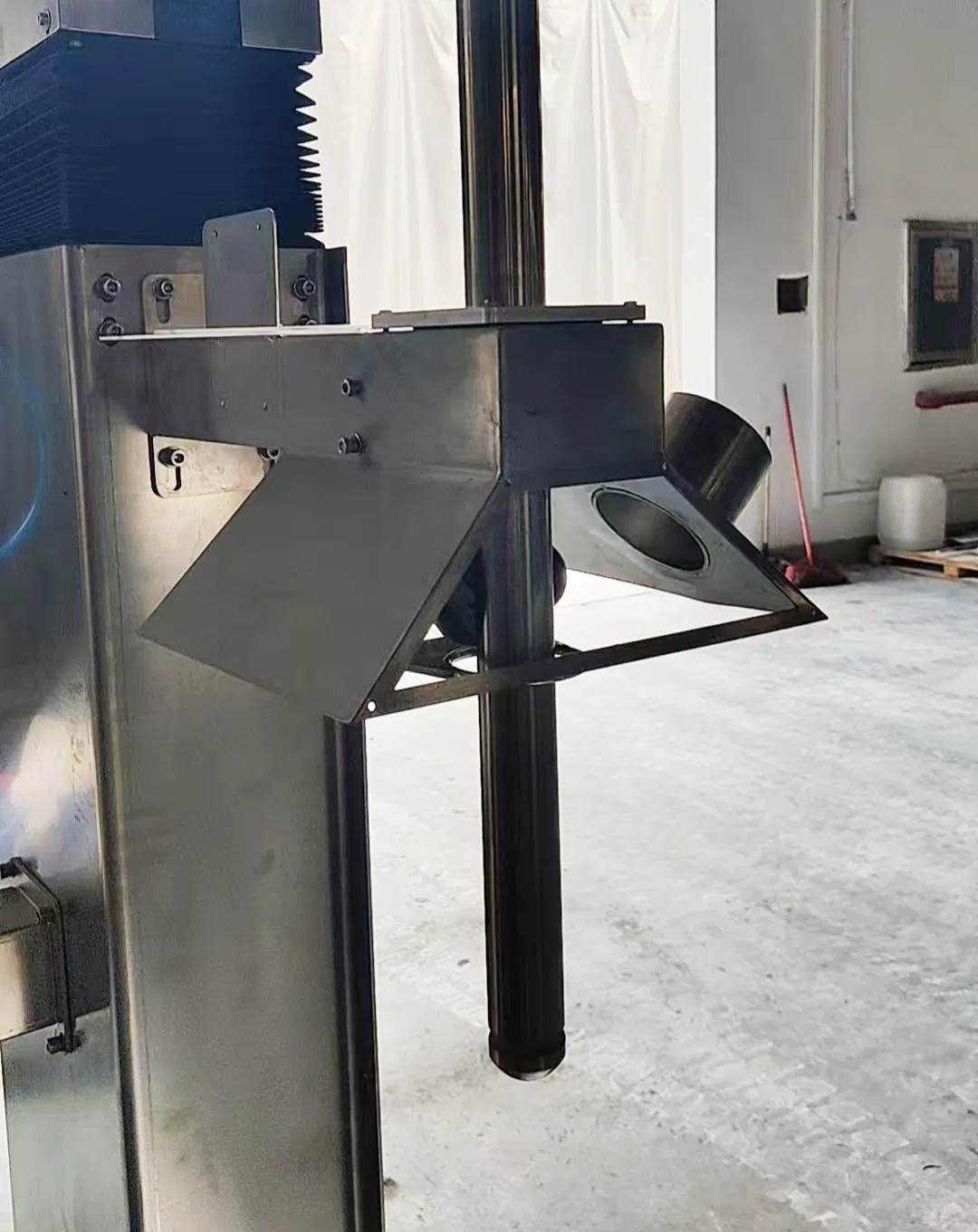

Equipment Advantage
⚙️

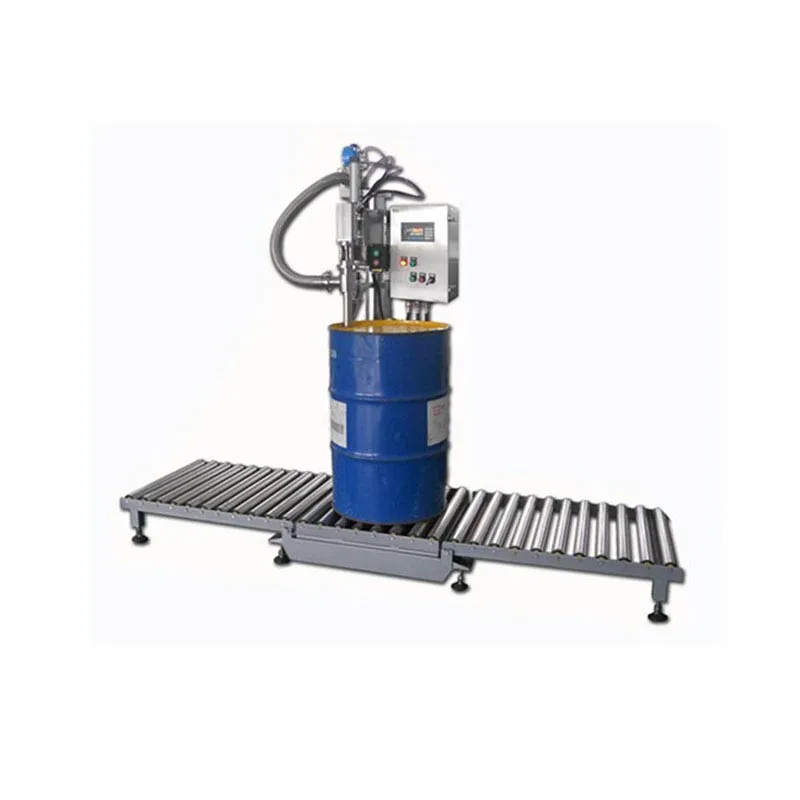

Product Features
Product Features
🔹
Control System: PLC + 7-inch Touchscreen HMI with 10+ preset program storage.
🔹
Material Parts: 316L/304 Stainless steel with EPDM chemical-resistant gaskets.
🔹
Safety: Emergency stop buttons, drip tray with drainage, and barrel detection.
🔄

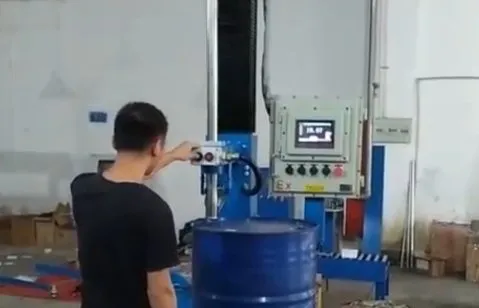

Operation Process
1Place bucket on the weighing platform; system detects position.
2Nozzle inserts into bucket mouth; automatic peeling and valve opening.
3Four-stage filling (large, medium, small, trace) until target value.
4Nozzle rises; move to lid area and press [Lock lid] button.
5Pneumatic locking of the cover followed by manual palletizing.
Operation Steps
🔍
Detail Display

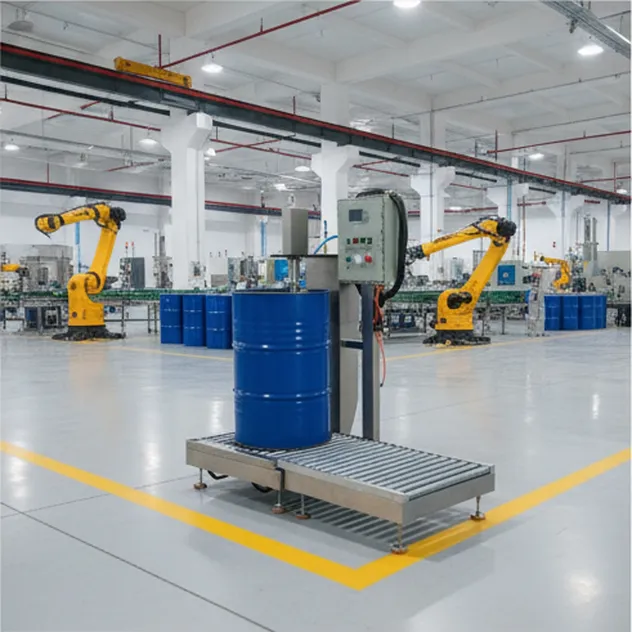

Detail 1
Easy Integration

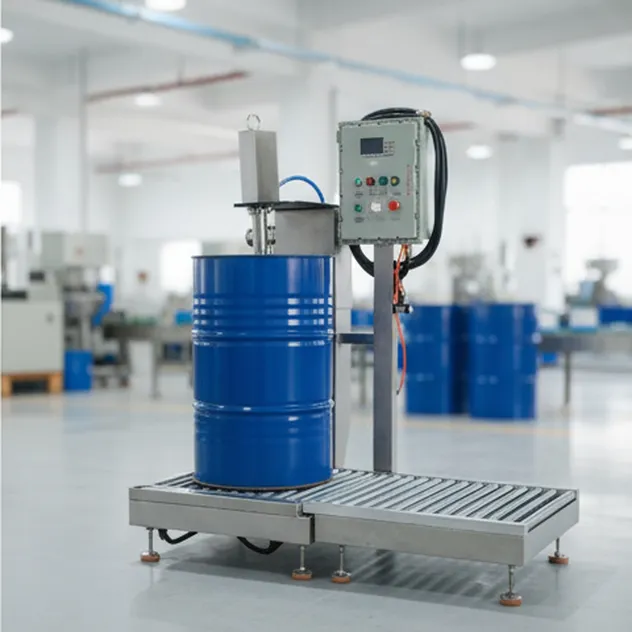

Detail 2
Safety Interlocks

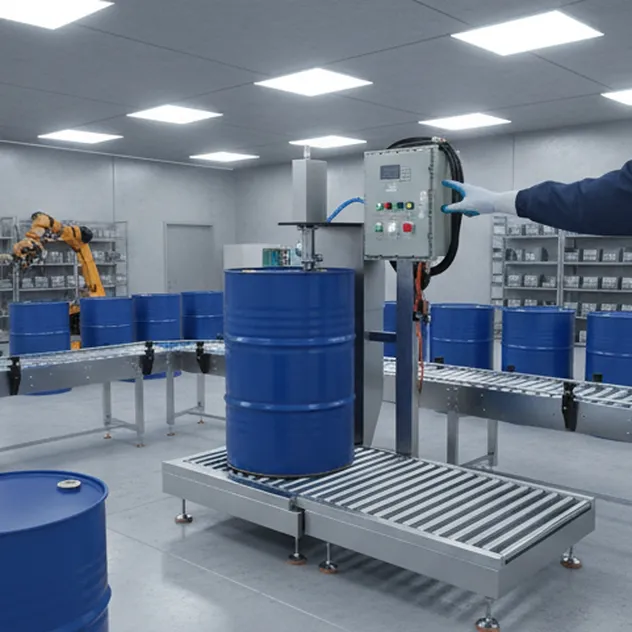

Detail 3
Productivity Boost

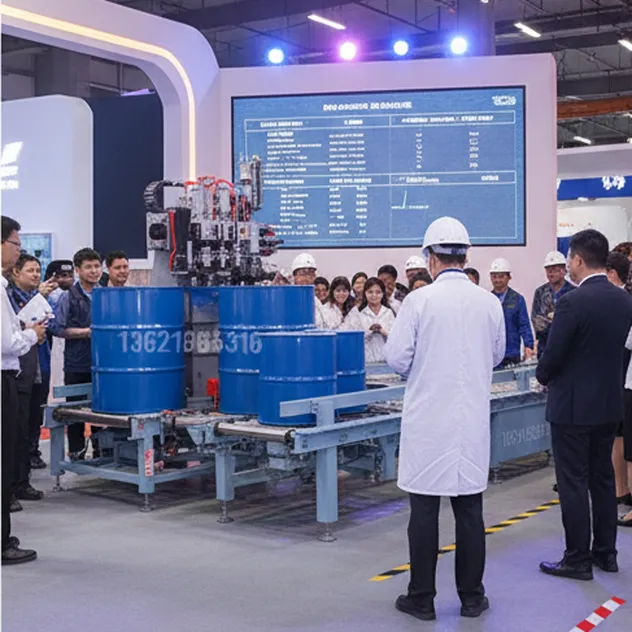

Capacity
200L Cycle Capacity

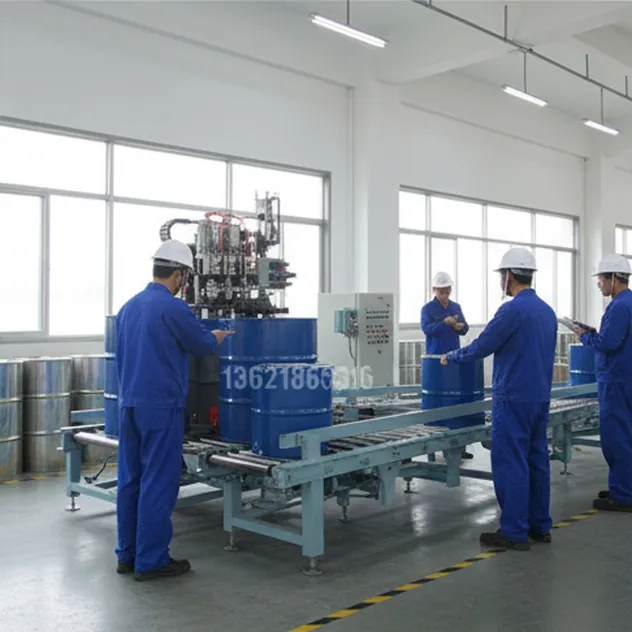

Speed
High Speed Output
Accuracy
Precise ±0.5% Accuracy
🏢

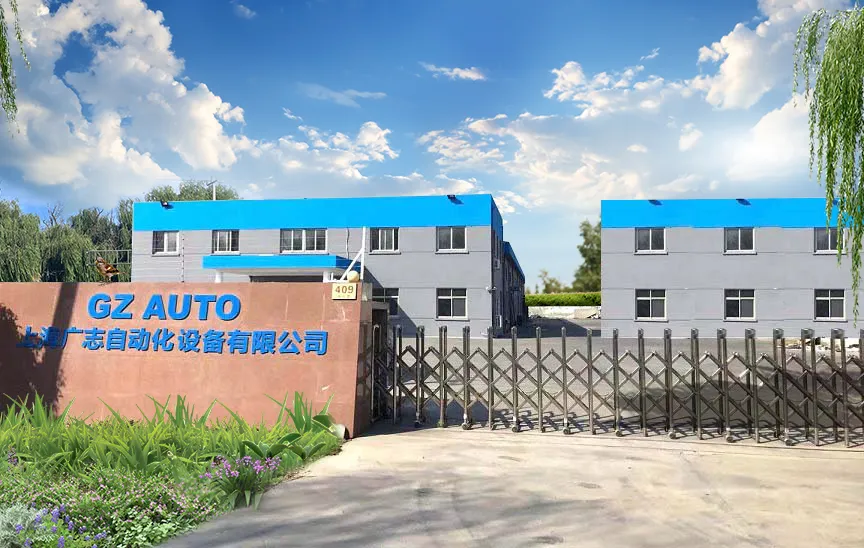

Industrial Expertise
Facility 1
Facility 2
Facility 3
Specializing in liquid filling lines, powder packaging, and bulk bag systems. Our engineering focuses on high-tech development, safety, and humanized operating systems for petrochemical, pharmaceutical, and food sectors globally.
Global Reach
Frequently Asked Questions
What is the filling accuracy of the GZM-200?
The system provides high-precision weighing with an accuracy of 0.2% to 0.5%, depending on the material properties.
Can this machine handle flammable or toxic liquids?
Yes, we offer optional explosion-proof designs (ATEX/IECEx compliant) and bottom-filling nozzles to minimize vapor release and splashing.
What is the typical lead time for an order?
Standard models generally ship within 15-30 days, while customized units require approximately 30-45 days.
Does the machine support different barrel sizes?
Absolutely. The system is adjustable and we offer tailored attachments to accommodate various bucket and drum dimensions.
What kind of after-sales support do you provide?
We provide a 12-month standard warranty, 24/7 technical assistance, and on-site or remote training for operation and maintenance.
What materials are the contact parts made of?
All material contact parts are made of 304 or 316L stainless steel with chemical-resistant EPDM gaskets to ensure durability and hygiene.
