Concrete that is kept at the proper temperature will support structurally sound projects and eliminate costly downtime. Concrete cooling is a procedure that diminishes the temperature of poured concrete to a specific level, ensuring the nature and quality are maintained.
A base temperature between 10 - 21º Celsius must be maintained during curing. Cooling reduces heat that could otherwise compromise the strength and integrity of a structure, preventing splitting or cracking.

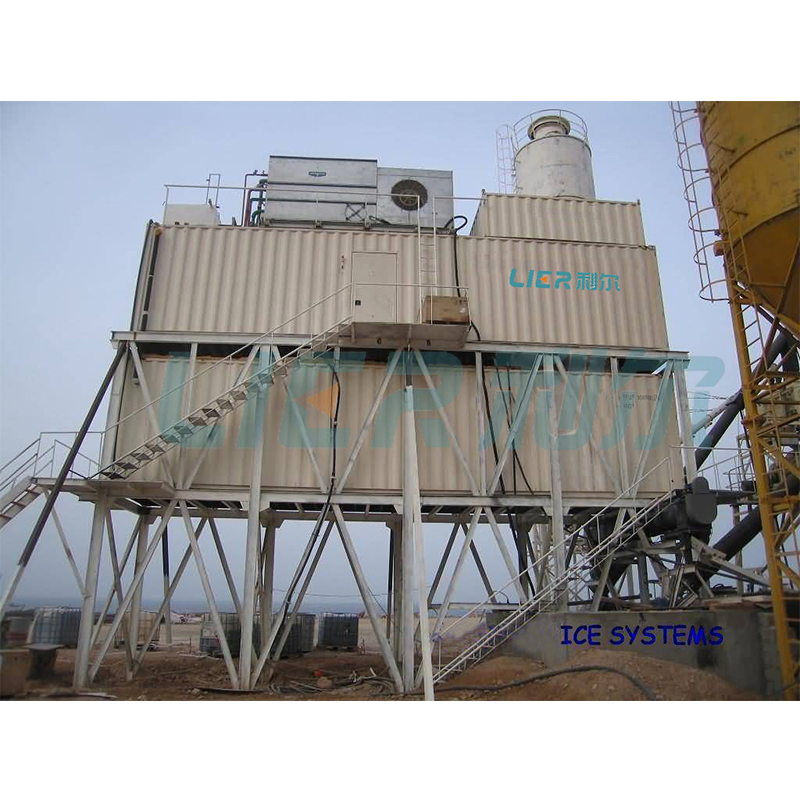

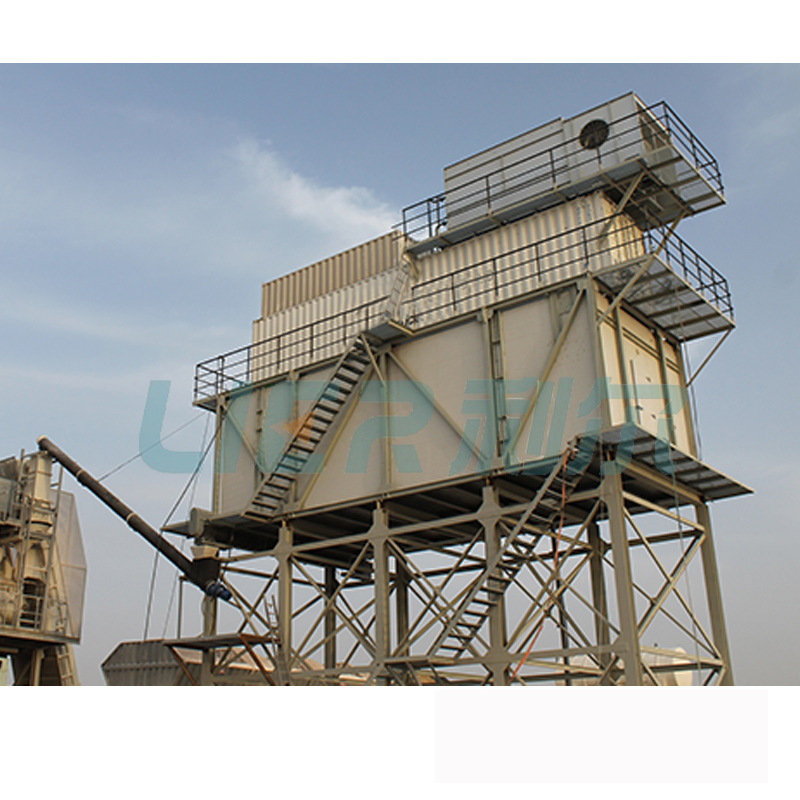

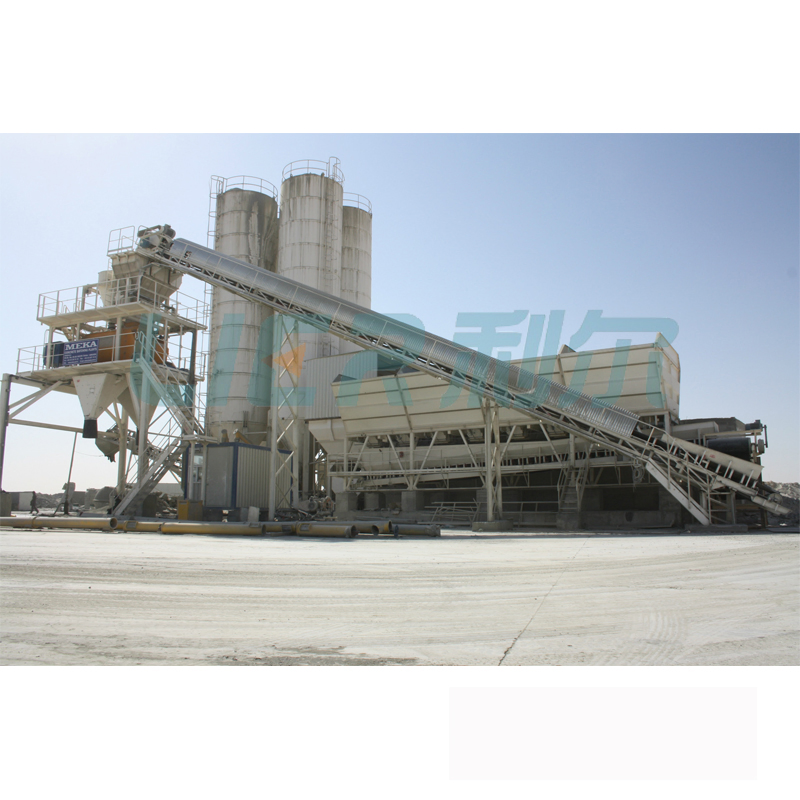

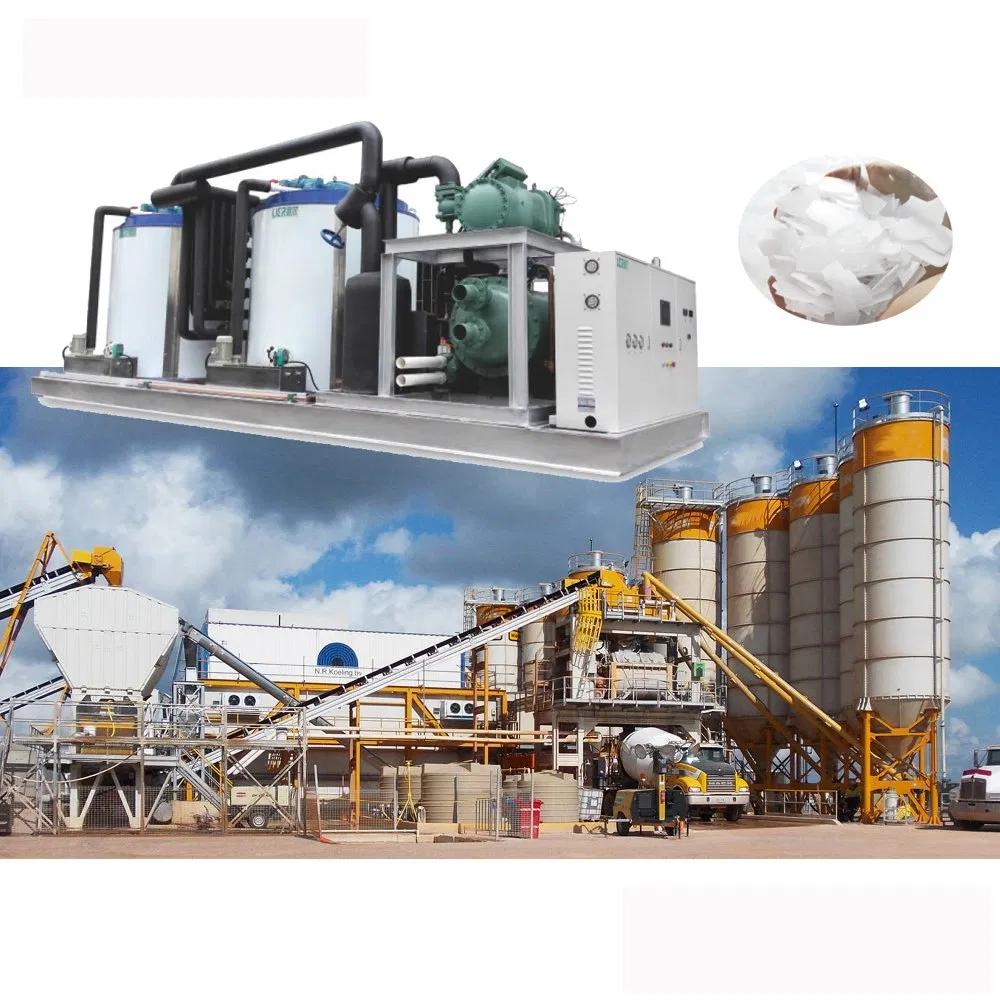

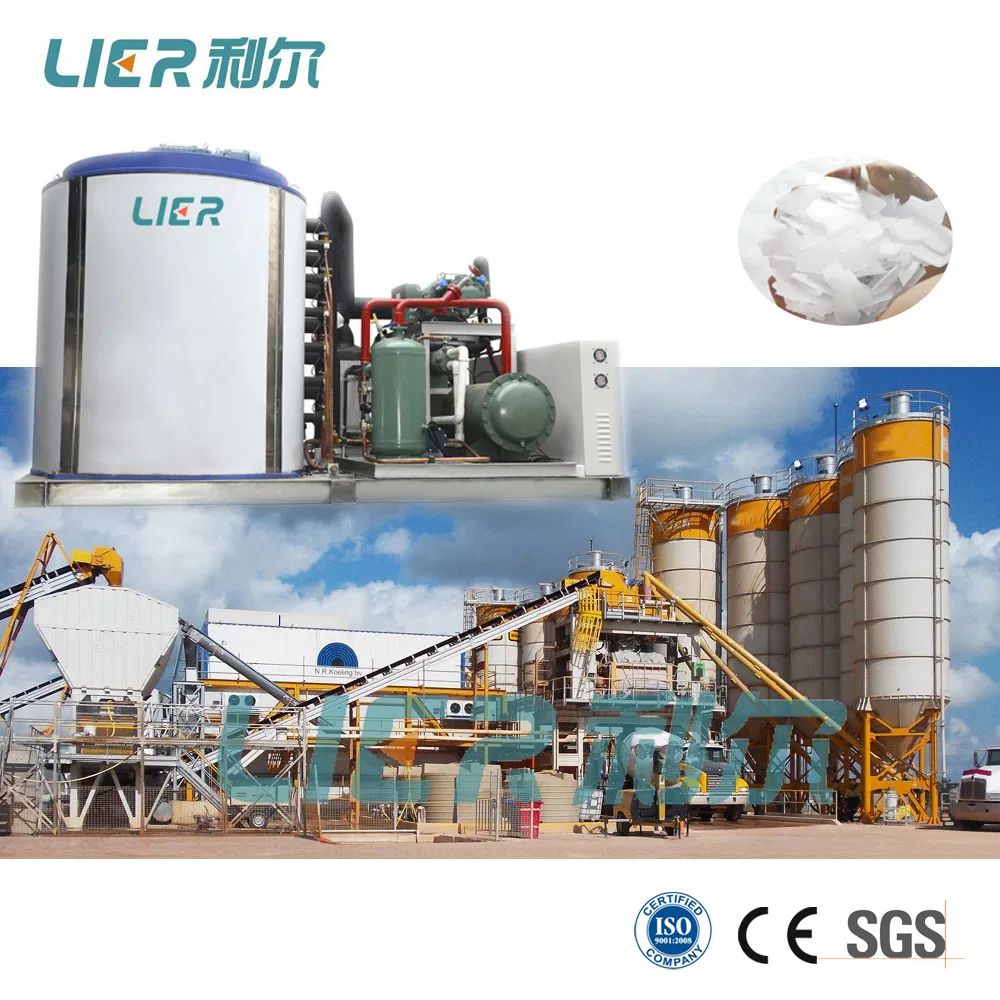

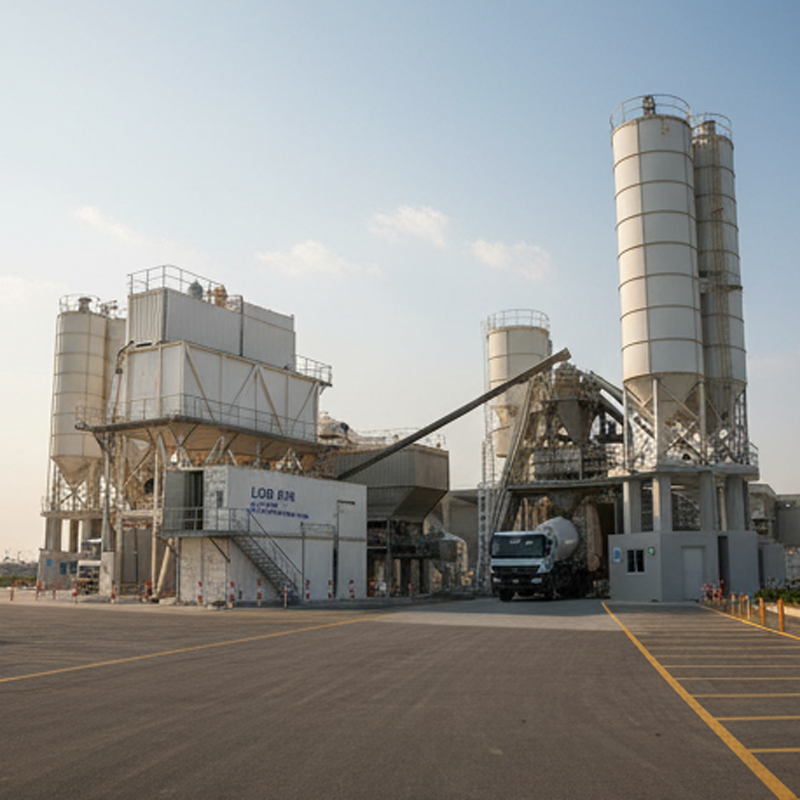

Flake ice is the preferred method for cooling concrete on mass pour projects such as hydro dams, nuclear power plants, and batching plants. It effectively reduces heat generated during the curing process, meeting critical low-temperature specifications.

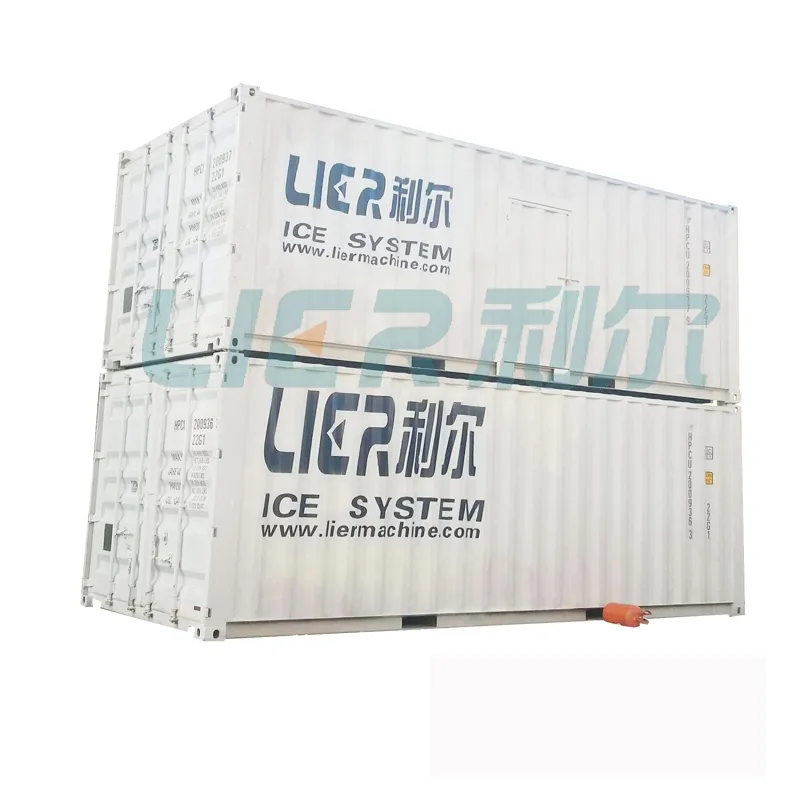

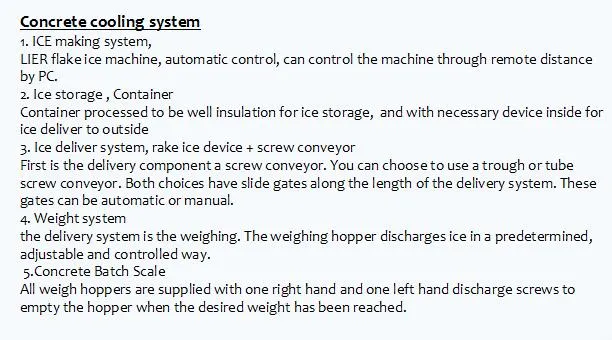

Our systems realize full automatic ice making, storage, and delivery, providing efficient integration into any batching plant.
Automatic Ice Rake System: Since flake ice is dry and small, it tends to pile up and block sensors. Our automatic rake system ensures even distribution and prevents system stoppages.
| Model | Daily Output (kg/24h) | Ref. Capacity (kw) | Power Supply | Total Power (kw) | Refrigerant | Dimension (L*W*H mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| LR-1T | 1000 | 6 | 3P/380V/50HZ | 4.31 | R404A | 1310*970*880 | 227 |
| LR-5T | 5000 | 30 | 3P/380V/50HZ | 23.12 | R404A | 1750*1550*1600 | 765 |
| LR-10T | 10000 | 65 | 3P/380V/50HZ | 45.5 | R404A | 2530*1830*1680 | 1540 |
| LR-20T | 20000 | 130 | 3P/380V/50HZ | 75.8 | R22 | 3695*2090*2050 | 2860 |
| LR-30T | 30000 | 210 | 3P/380V/50HZ | 86 | R22 | 3880*21200*2400 | 3240 |
