CO2 Fire Fighting Extinguisher System

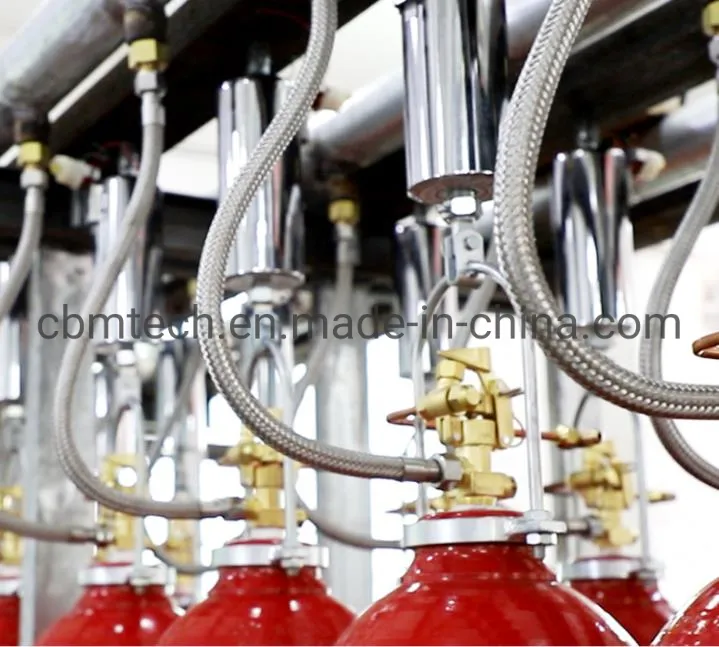

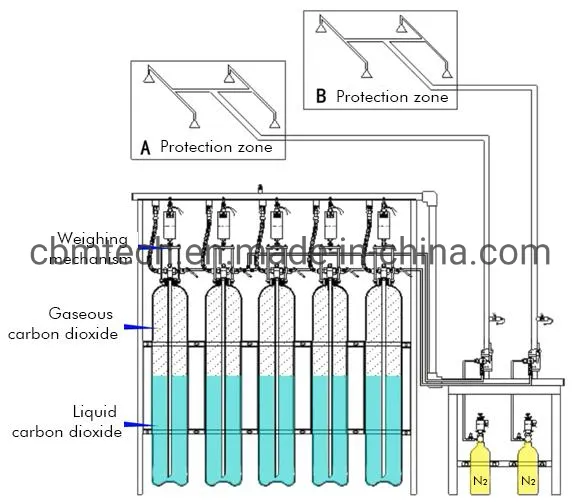

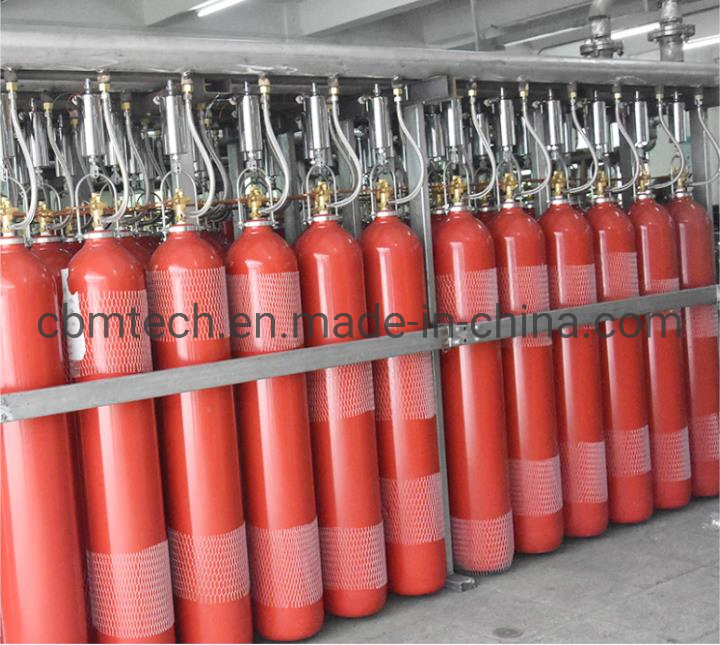

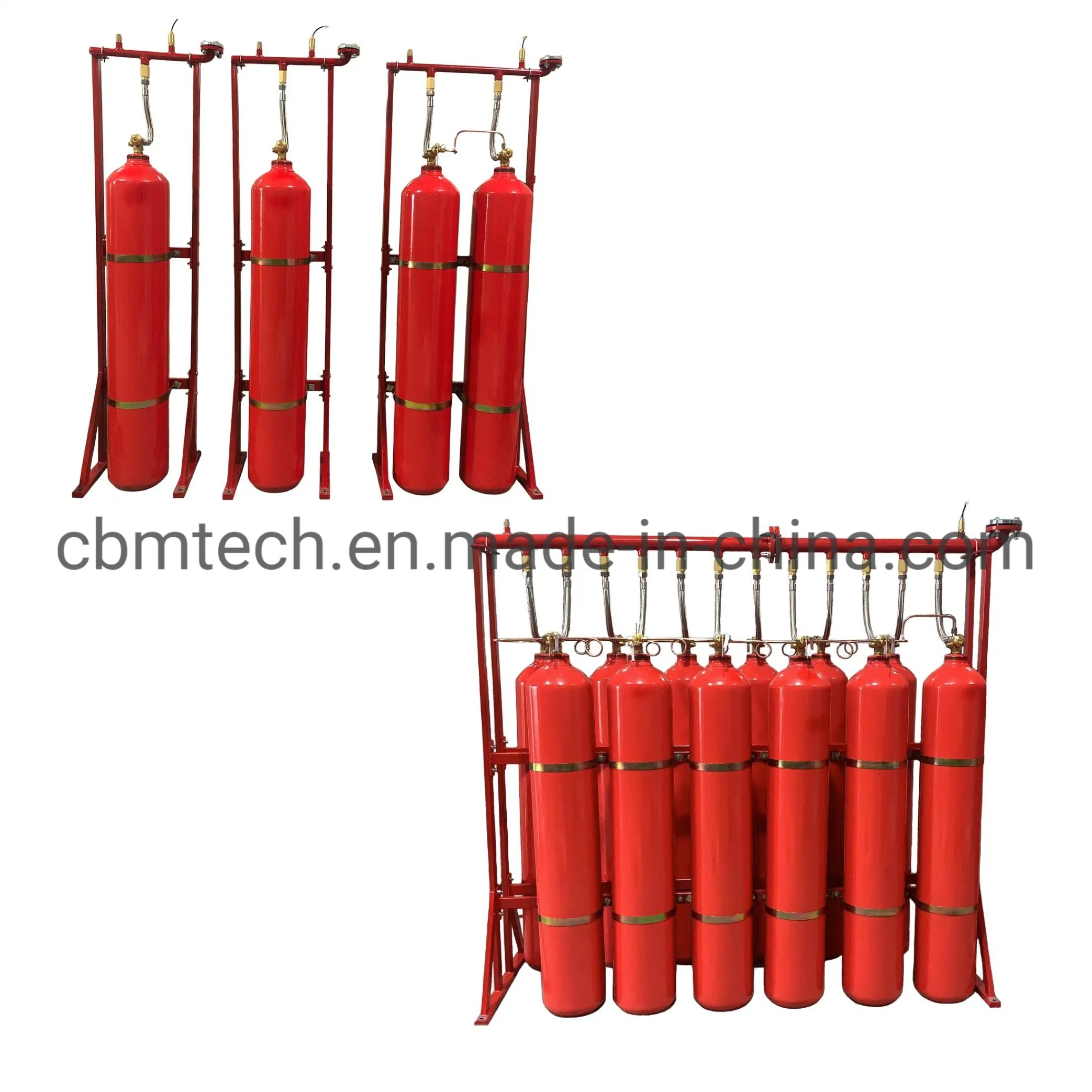

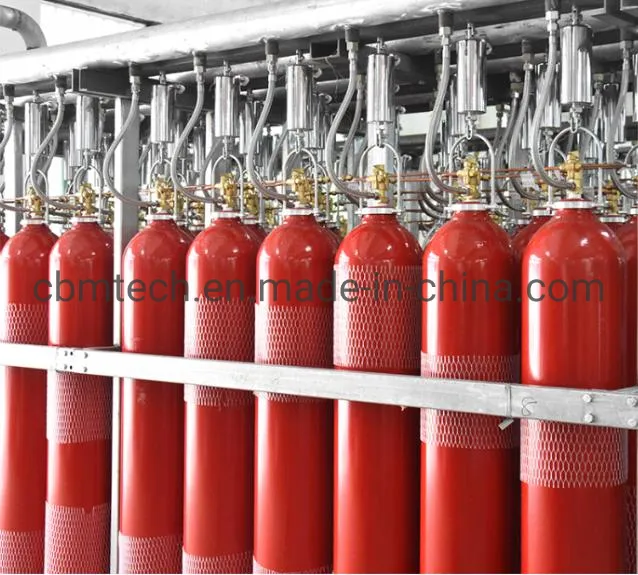

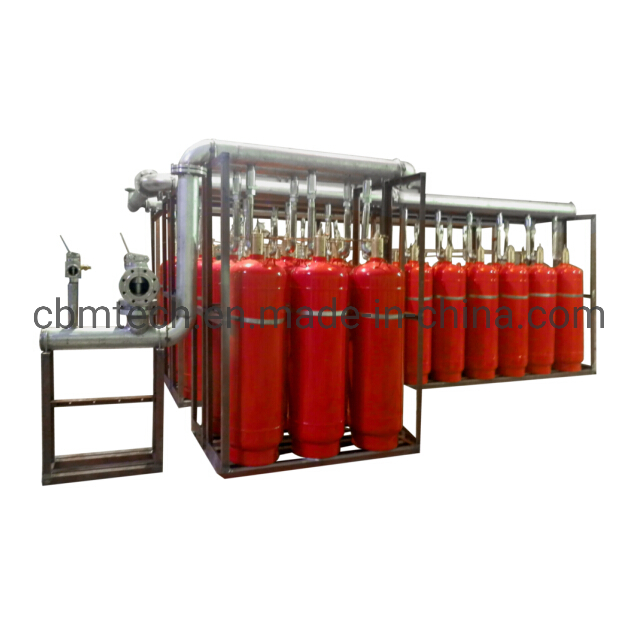

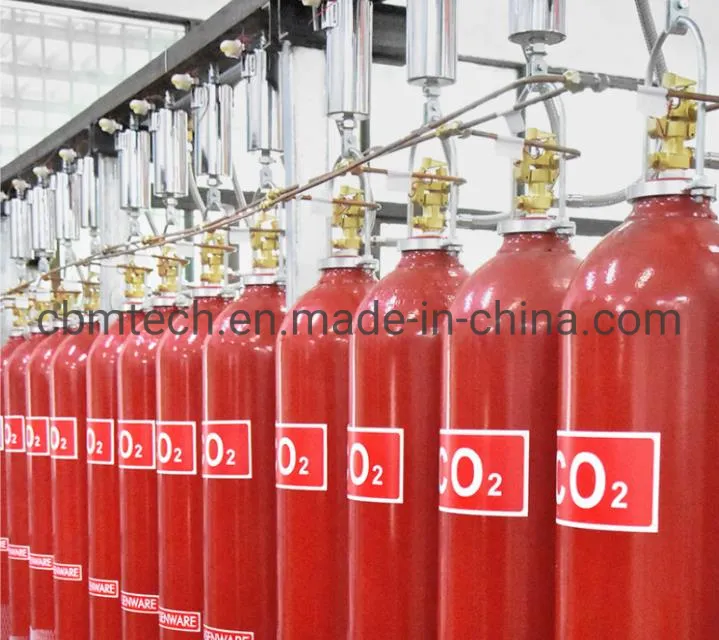

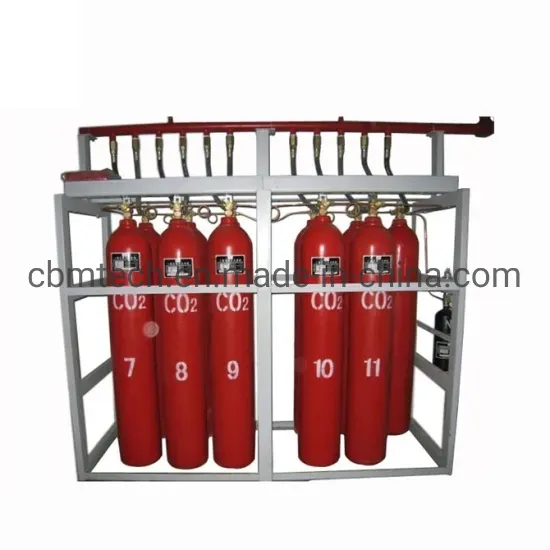

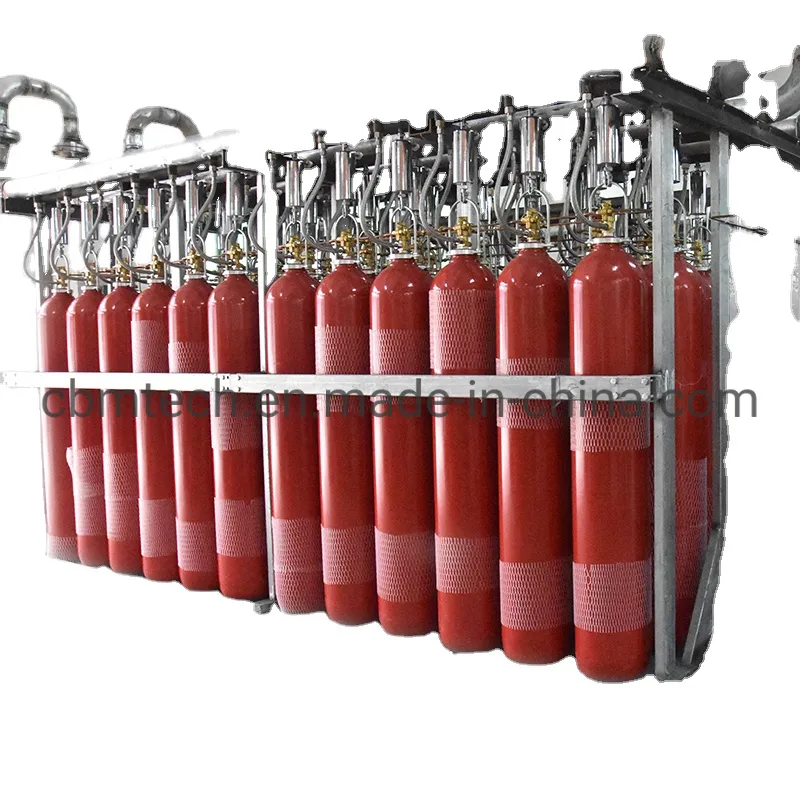

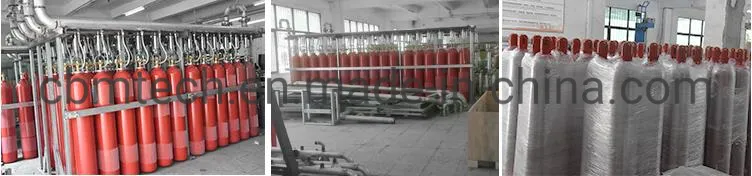

The CO2 Extinguishing System is an intelligent automatic extinguishing system consisting of bottle group brackets, storage bottles, container valves, high-pressure hoses, check valves, header pipes, safety valves, distribution pipes, selector valves, and pressure signal devices. It is designed for total flooding extinguishing to protect single or multiple protection areas with high efficiency and easy maintenance.
| Model & Specifications | CO2 Fire Fighting Extinguisher System |
| Volume of Storage Bottle (L) | 70/80L |
| Storage Pressure (20ºC) | 5.7MPa |
| Maximum Working Pressure | 12.4MPa (50ºC) |
| Filling Density | ≤0.60 kg/L |
| Working Start-up Power | DC24V, 1.5A |
| Technical Way | Total Flooding |
| Discharge Time | ≤ 60 S |
| Driving Gas | Nitrogen |
| Ambient Temperature | 0 ºC ~ 50 ºC |
Typical Referenced Places: Key locations such as bank vaults, libraries, cable tunnels, printing presses, hydraulic equipment, drying equipment, and ship cabins.
