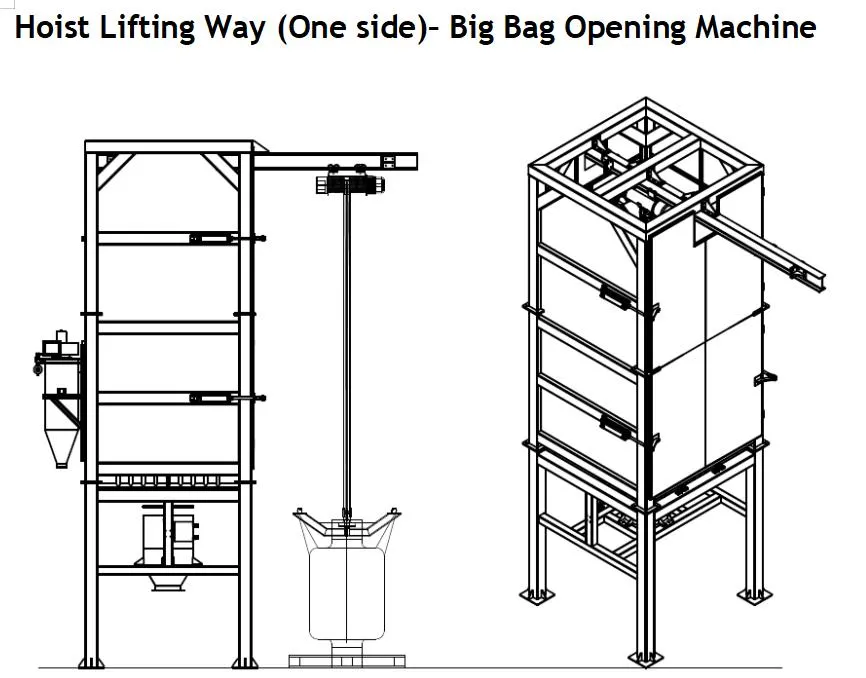

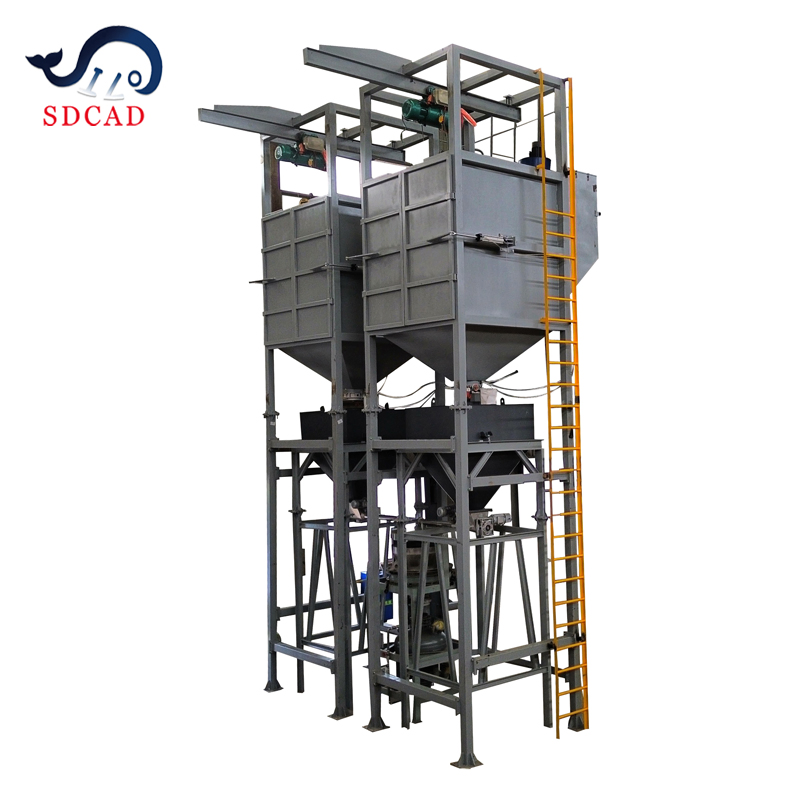

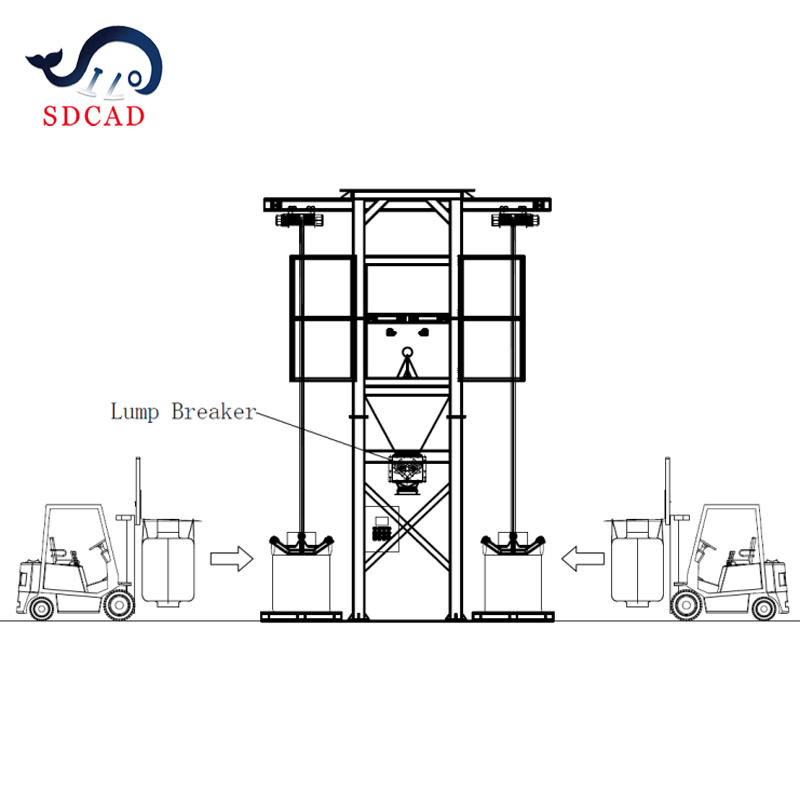

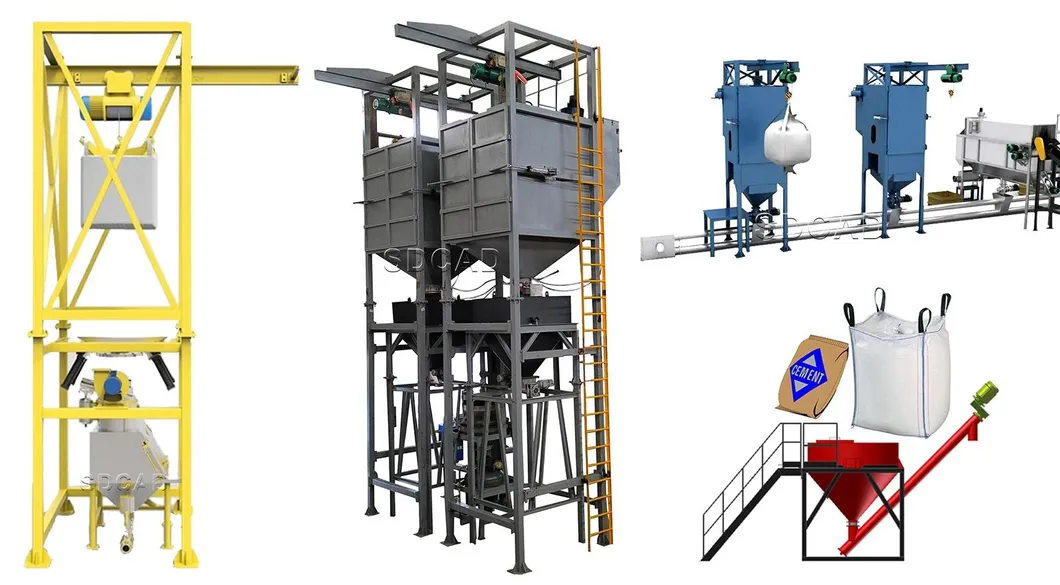

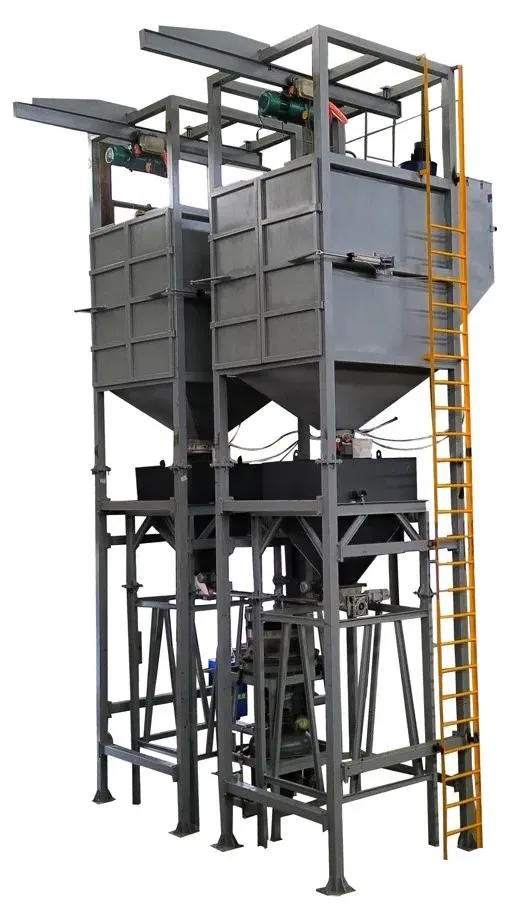

The Big Bag Unpackaging Machine is essential equipment for the chemical, mining, and manufacturing industries. It is designed to unpack large bags (500KG - 2500KG) efficiently to ensure continuous production flow.
Construction, Food, Chemicals, Plastics, Glass, Waste Treatment.
Available Materials:Carbon steel, 304 Stainless steel, or 316 Stainless steel.
| Parameter | Details |
|---|---|
| Material Bag Weight | According to Customer Requirement |
| Lifting Height | Customized |
| Lifting Capacity | 2t / 3t |
| Capacity | 20-30 bags per hour |
| Sealed Door | Pneumatic open / close |

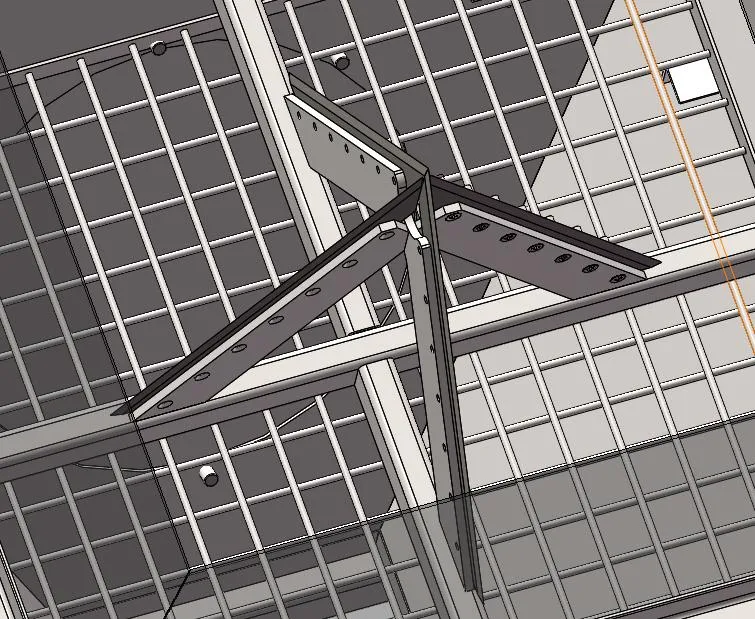

| Bag Opening Way | Knife (inside sealed hopper) |

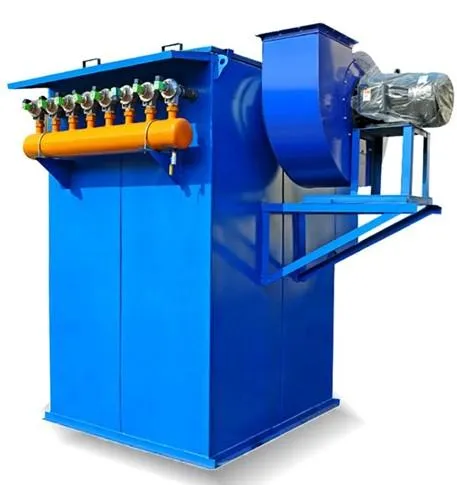

| Dust Collector | Integrated for dust control during opening |
| Hopper Volume | 1.4m³ |
| Filtration Area | 24m² |
| Dust-Exhaust Efficiency | 99.9% |
| Filtration Wind Speed | 1.37-2.47m/min |
| Wind Capacity | 1500m³/h |
| Power of Blower Fan | 2.2KW |

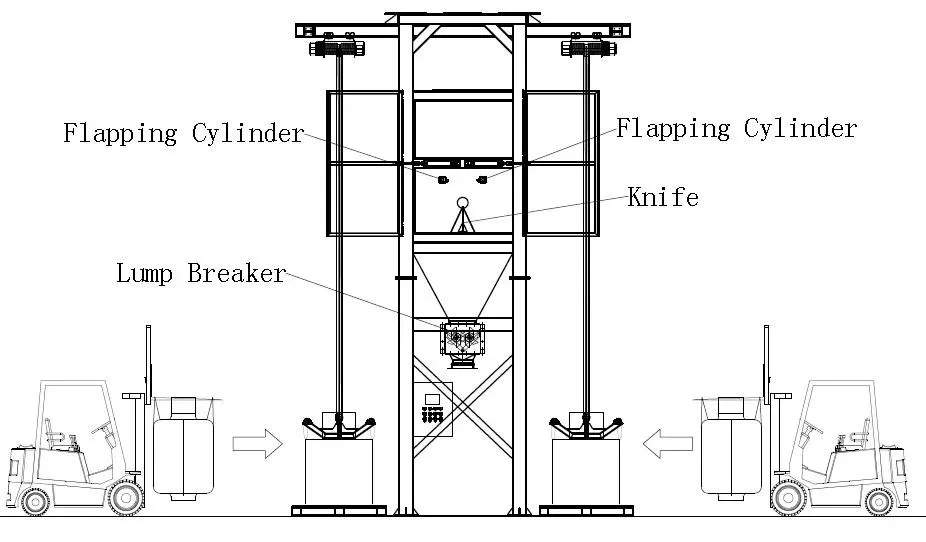

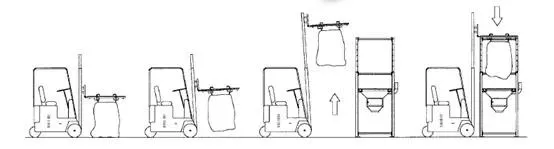

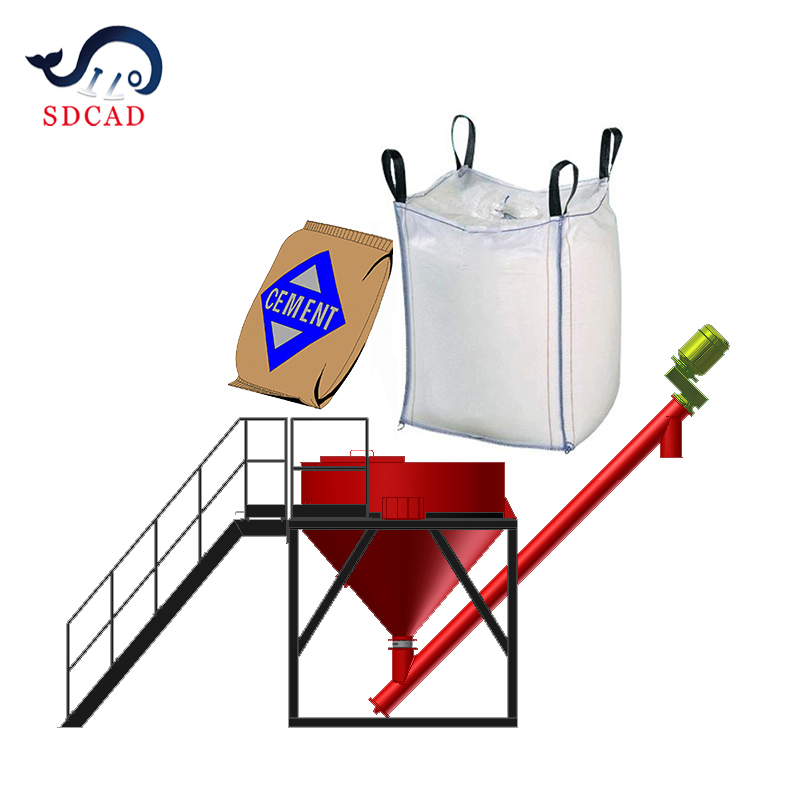

Splitting: Bags are dispensed manually or via conveyor belt and simultaneously cut by a stationary blade inside the screw trough.
Screening: Special rotary movement and vibration ensure bags are completely emptied. Material is then moved by a screw conveyor for further processing.
| Pre-Sales Service | After-Sales Service |
|---|---|
|
• 24-hour consultant availability • Custom engineering design drawings • Production process photo tracking |
• Detailed installation instructions • Problem-solving support • Machinery maintenance guidance |

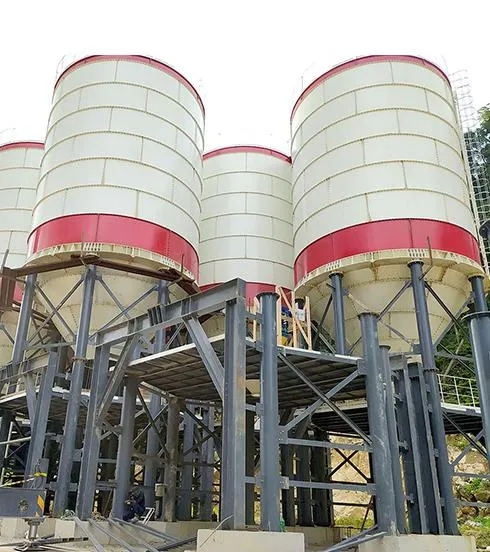

Bolted Silo

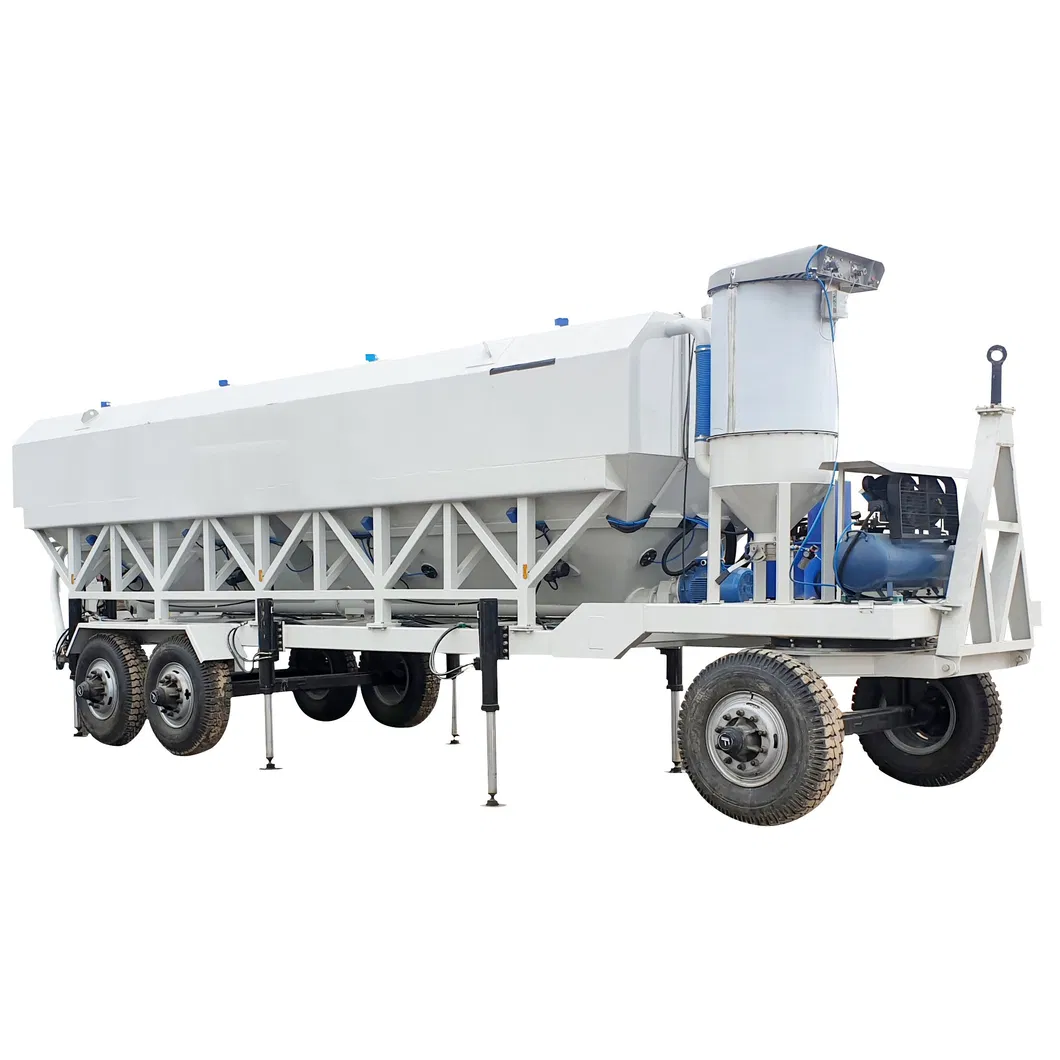

Container Horizontal Silo

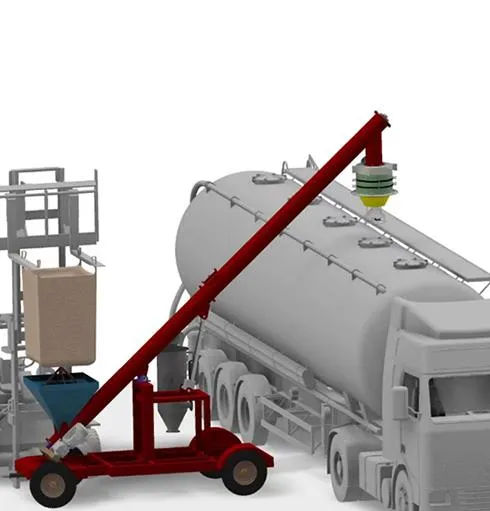

Bag Discharging Machine
