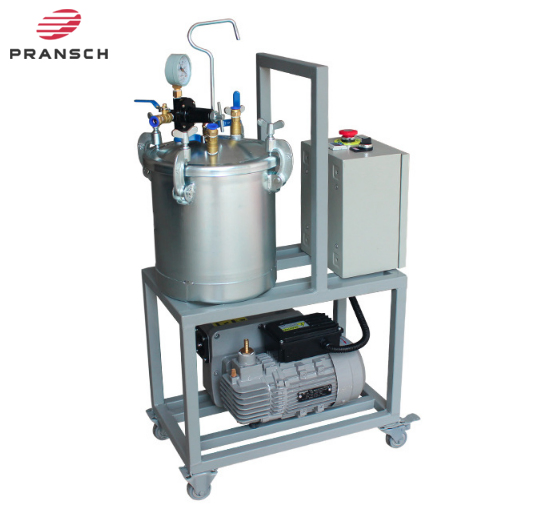

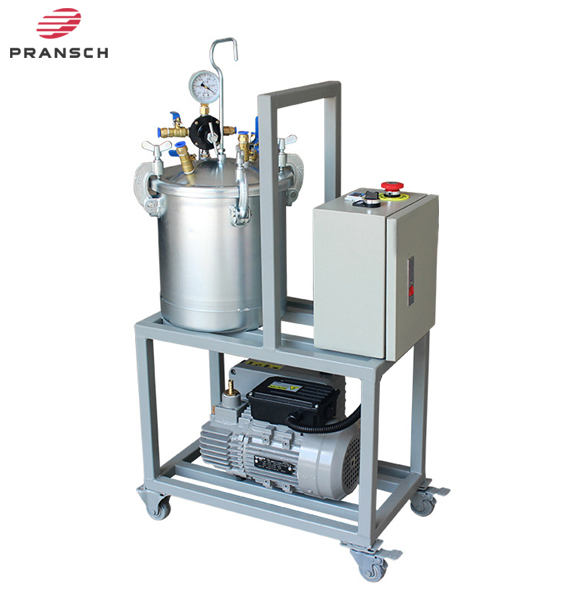

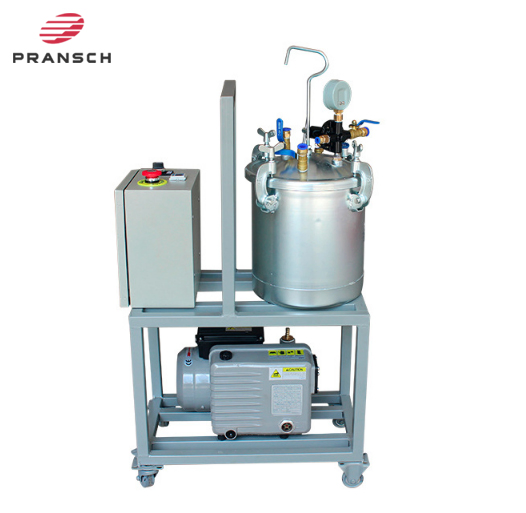

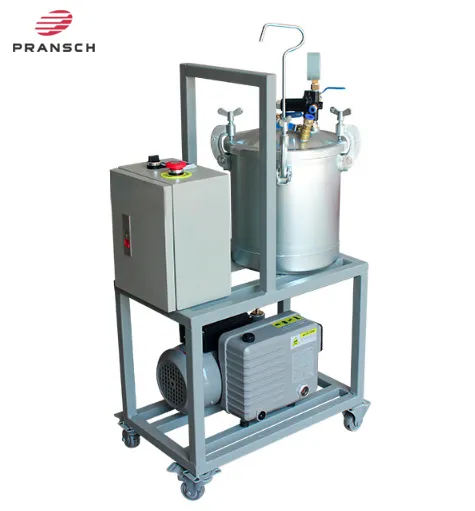

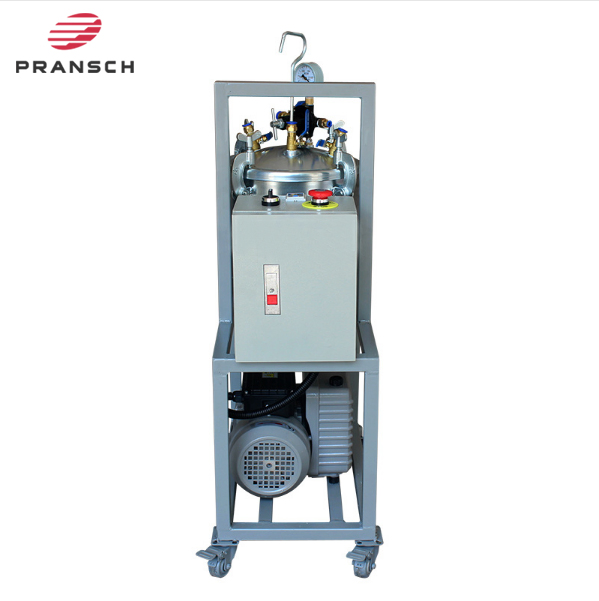

Singel Stage Rotary Vane Vacuum Pump System

1 / 5

Singel Stage Rotary Vane Vacuum Pump System

Customization:	Available
Oil or Not:	Oil Free
Structure:	Roots Rotary Plate Unit

Send Inquiry

Product Description

Basic Information & Specifications

Model NO.

RVP3

Exhauster Method

Positive Displacement Pump

Vacuum Degree

Vacuum

Work Function

Mainsuction Pump

Working Conditions

Dry

Pumping Speed

100 M3/H

Ultimate Vacuum

130 Mbar

Motor Power

4 Kw

Motor Speed

1450 Rpm

Noise

72 dB(a)

Cooling Water Flow

6L/Min

Weight

52kgs

Origin

China

HS Code

8414100090

Production Capacity

50000PCS/Year

Specification

CE, U. S and European Market Standard

Product Description

Roots Rotary Vacuum unit:

The vacuum unit is a high-performance combination featuring 1 Roots pump as the main pump and 1 single-stage rotary vane pump as the front-stage pump. Equipped with a professional filter, distribution box, and corresponding pipeline valves, it forms a complete vacuum pumping system designed to overcome the limitations of individual vacuum pumps.

🚀

Increased Pumping Speed

Total instantaneous pumping capacity is significantly boosted by the Roots vacuum pump integration.

⏳

Extended Service Life

Reduces pump temperature rise to prevent overheating and decreases total running time. Optional buffer tanks and intake filters protect against foreign matter and micro-granular solids.

🛡️

Anti-Return Oil Structure

Specialized unit design prevents vacuum pump oil from returning to the container when the device stops running.

Wide Applications

This vacuum unit is ideal for systems requiring high pumping speeds at low inlet pressures. It is widely utilized in:

Vacuum exhaust & Drying
Vacuum smelting & Impregnation
Heat treatment & Freezing
Vacuum distillation (Chemical/Pharma)
Food concentration & Drying
Textile industry processes
Suction of explosive/toxic gas

Frequently Asked Questions (FAQ)

Q1: What components make up this vacuum unit? A: The unit consists of a Roots pump as the primary pump and a single-stage rotary vane pump as the backing pump, integrated with filters, valves, and a control distribution box.

Q2: Can this unit handle hazardous gases? A: Yes, it is designed for the suction and pressing of still, explosive, and toxic gases, making it suitable for demanding industrial chemical applications.

Q3: How does the system prevent oil backflow? A: The unit features a specialized oil resistance structure that ensures oil does not return to the vacuum container even when the system is shut down.

Q4: What are the noise and power specifications? A: The RVP3 model operates at a noise level of 72 dB(a) with a 4 Kw motor and a speed of 1450 Rpm.

Q5: Is the unit compliant with international standards? A: Yes, the unit meets CE standards and is designed to comply with both U.S. and European market specifications.

Q6: What is the benefit of adding a buffer tank to the system? A: Adding a buffer air storage tank helps reduce foreign matter and solid micro-particles from entering the pump, thereby extending its operational lifespan.
